Schneider Electric LC1D326B7

B00CONNDJG

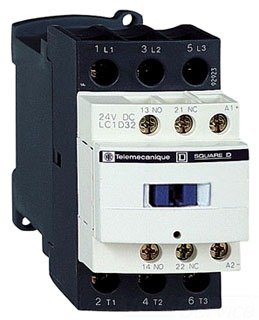

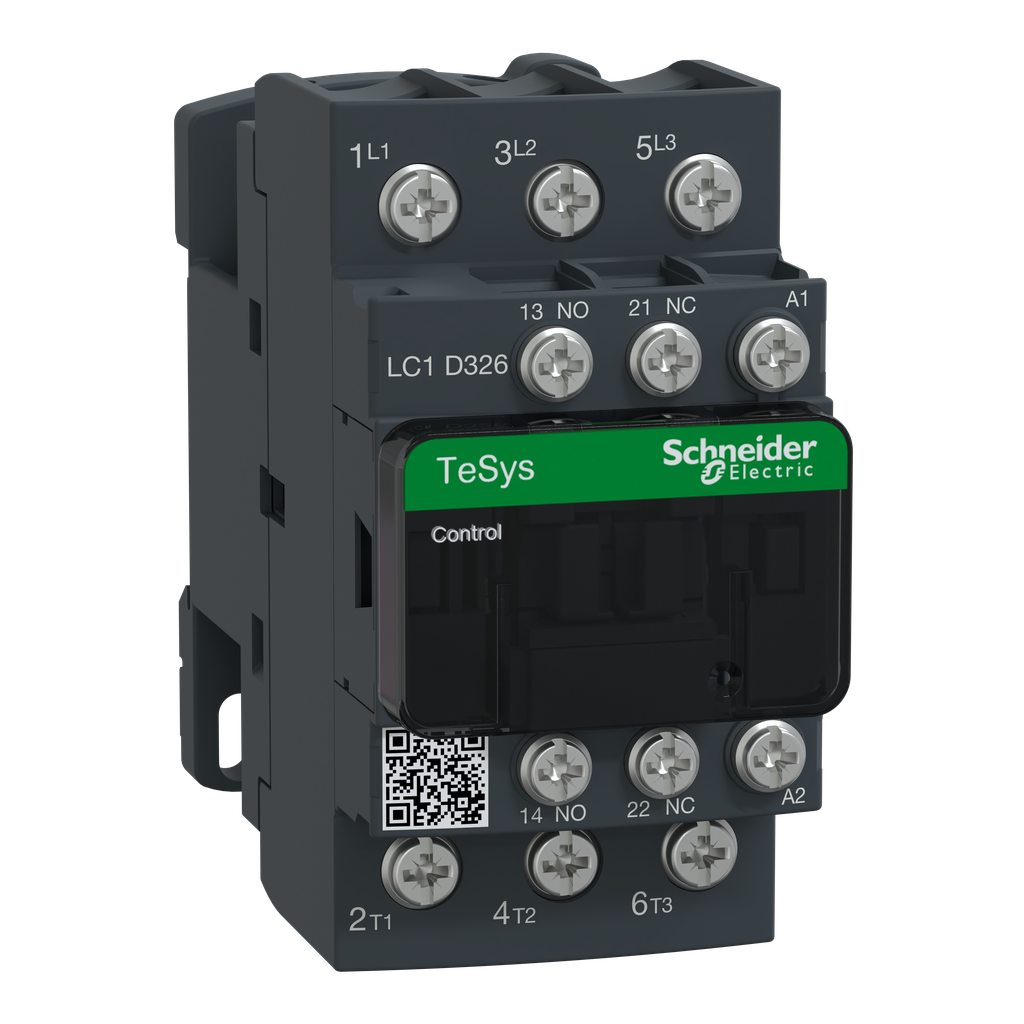

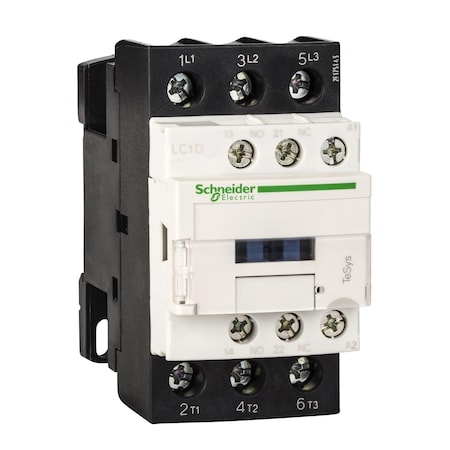

SCHNEIDER ELECTRIC Contactor 600-Vac 32-Amp Iec Plus Options LC1D326B7 Busway Flanged End

SCHNEIDER ELECTRIC Contactor 600-Vac 32-Amp Iec Plus Options LC1D326B7 Busway Flanged Endzoom

Attributes

Key Value
3-Phase HP Rating (Max.)25 hp
[Icw] Rated Short-Time .260 A 40 ?C - 10 s powe.
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Uc] Control Circuit Vo.24 V AC 50/60 Hz
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
ApplicationMotor control;resistive.
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2 mOhm - Ith 50 A 50 Hz.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC1D326B7
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1102029EN
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating30 hp at 575/600 VAC, 7.
Coil Technologywithout built-in suppre.
Coil Voltage24 Vac, 24, 24 VAC, 24 .
Coil Volts24 V AC
ConnectionControl circuit lugs-ri.
Connections - Terminalscontrol circuit lugs-ri.
Contact Configuration3NO, 1 NO + 1 NC;3 NO;M.
Contact Operation3NO
Contact Rating10 A 60 A Degrees C SIG.
Contactor Applicationmotor control || resist.
Contactor TypeNon-Reversing
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.3...0.6 Uc -40-70 ?C .
Country of OriginID - Indonesia, Indones.
Country of Origin (subj.Indonesia
Depth92 mm
Device Short NameLC1D
Dimensions85 mm H x 45 mm W x 92 .
ECCNEAR99
Enclosure TypeOpen
Environmental DisclosureENVPEP110229EN
Eu Rohs DirectiveCompliant
Family NameTeSys Family
Fire Resistance850 ?C IEC 60695-2-1
Frequency Rating50/60, 50/60 Hz
Full Load Amps-Inductive32 A
GTIN03389110805147, 0078590.
Heat Dissipation2-3 W 50/60 Hz
Height85 mm
Hold-In Power Consumpti.7.5-7.5 VA 60 Hz 0.3 20.
Inrush Power In Va70-70 VA 60 Hz 0.75 20 .
Insulation Resistance> 10 MOhm signalling ci.
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.140 A AC signalling cir.
ItemIEC Magnetic Contactor
Item Typecontactor
Made in USANo
ManufacturerSchneider Electric
Max. Inductive Amps (AC.32A
Max. Resistive Amps (AC.50A
Maximum Horse Power Rat.2 hp 115 V at AC 50/60 .
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw7.5 kW 220...230 V AC 5.
MountingRail Plate
Mounting Supportrail || plate
Mounting typePlate/Rail
Mounting TypeDIN Rail Mount ; Panel .
Net Weight0.375 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Auxiliary Con.1NO-1NC
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 Hz, 3600, 3600.
Operating Temperature-5 to 60, -5 to 60 deg .
Operating Time12...22 ms closing || 4.
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles Description3P
Pollution Degree3
Power Dissipation Per P.2 W AC-3 || 5 W AC-1 ||.
Product CertificationsBV || CSA || UL || RINA.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity550 A 440 V power circu.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys? D LC1D, TeSys D,.
Signalling Circuit Freq.25...400 Hz
Single-Phase HP Rating .5 hp
Size45 MM,85 MM,92 MM
Special Featureswithout built-in suppre.
StandardBV;CSA;UL;RINA;GOST;LRO.
StandardsCSA C22.2 No 14 || EN 6.
Sub BrandTeSys D;TeSys Deca
Sustainable Offer StatusGreen Premium product
Terminal TypeLugs Ring Tongue
Tightening Torquecontrol circuit 1.7 N.m.
Toxic Heavy Metal FreeYes
TypeNon-Reversing, IEC Cont.
UNSPSC39121529
UPC785901543022
UPC Code785901543022
Utilisation CategoryAC-3 || AC-1 || AC-4 ||.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage2 W AC-3-5 W AC-1
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comLC1D326B7177.0911010SQUARE D177.09 @ 10
RS Delivers845-1904198.228110Schneider Electric198.228 @ 10
thumbzoomstandardelectricsupply.com2233672206.69110Square D (Schneider Electric)206.69 @ 10
us.rs-online.com70747367211.37110Schneider Electric211.37 @ 10
thumbzoomZoroG0850057215.2411033Schneider Electric0.95215.24 @ 10
Graybar22088069231.168110Square D (Schneider Electric)231.168 @ 10
thumbzoommayerelectric.comSQDLC1D326B7231.41110SQUARE D0.825231.41 @ 10
thumbzoomcrescentelectric.com983672307.8110Schneider Electric307.8 @ 10
