Schneider Electric LC1D326BL

B00CONGCJ4

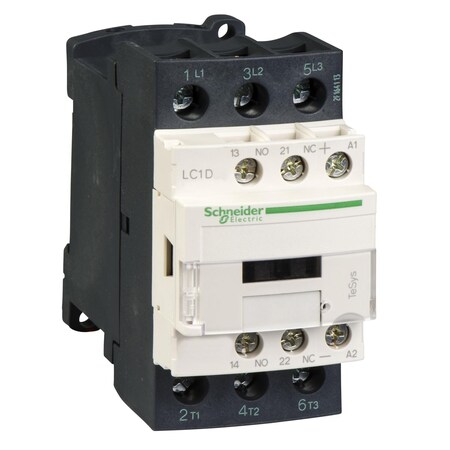

SCHNEIDER ELECTRIC Contactor 600-Vac 32-Amp Iec Plus Options LC1D326BL Busway Elbow

SCHNEIDER ELECTRIC Contactor 600-Vac 32-Amp Iec Plus Options LC1D326BL Busway Elbowzoom

Attributes

Key Value
[Icw] Rated Short-Time .260 A 40 ?C - 10 s for .
[Ith] Conventional Free.10 A (at 60 ?C) for sig.
[Uc] Control Circuit Vo.24 V DC
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
ApplicationResistive load;motor co.
ApprovalsCCC, CSA, UL
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts1NO, 1NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2 mOhm - Ith 50 A 50 Hz.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC1D326BL
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1102030EN
Climatic WithstandIACS E10 exposure to da.
Coil Power Rating2.4-2.4 W 20 A Degrees C
Coil Technologybuilt-in bidirectional .
Coil Voltage24 V DC, 24 Vdc
Coil Volts24 V DC
Compatibility CodeLC1D
ConnectionControl circuit lugs-ri.
Connections - Terminals.10 mm
Contact CompatibilityM5
Contact Configuration1 NO + 1 NC;3 NO;Mechan.
Contact Current Rating32 A
Contact Rating10 A 60 A Degrees C SIG.
Contactor Applicationresistive load || motor.
Control Circuit TypeDC low consumption
Control Circuit Voltage.0.1...0.3 Uc -40-70 ?C .
Control Voltage24 V
Country of OriginID - Indonesia, Indones.
Country of Origin (subj.Multiple
Depth101 mm
Device Short NameLC1D
ECCNEAR99
Environmental DisclosureENVPEP110230EN
Eu Rohs DirectiveCompliant
Family SeriesSquare D Contactors, Te.
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Full Load Amps-Inductive32 A
General Purpose (AC1)50 A
Gross Weight0 lbs
Height85 mm
Hold-In Power Consumpti.2.4-2.4 W 20 ?C
Inrush Power In W2.4-2.4 W 20 ?C)
Insulation Resistance> 10 MOhm for signallin.
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.140 A AC for signalling.
ItemIEC Magnetic Contactor
Item NumberLC1D326BL
Item Typecontactor
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number605637
Max HP 115V 1PH2 hp
Max HP 200/208V 3PH7.5 hp
Max HP 230/240V 1PH5 hp
Max HP 230/240V 3PH10 hp
Max HP 460/480V 3PH20 hp
Max HP 575/600V 3PH30 hp
Maximum Horse Power Rat.2 hp at 115 V AC 50/60 .
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA for signalling cir.
Minimum Switching Volta.17 V for signalling cir.
Motor Power Kw7.5 kW at 220...230 V A.
MountingRail Plate
Mounting Supportplate || rail
Mounting TypeDIN Rail Mount
Net Weight0.535 kg, 1.18 lbs
Nominal Coil Voltage24 Vdc
Non-Overlap Time1.5 ms on de-energisati.
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 Hz
Operating Temperature-40-70 A Degrees C AT U.
Operating Time77 ?15 % ms closing || .
Overvoltage CategoryIII
Permissible Ambient Air.-40-60 ?C || 60-70 ?C w.
Pole Contact Composition3 NO
Poles3NO
Poles Description3P
Pollution Degree3
Power Dissipation Per P.2 W AC-3 || 5 W AC-1 ||.
Product CertificationsDNV || CCC || GL || UL .
Product Or Component Ty.contactor
Product SeriesTeSys
Protective Coverwith
Protective TreatmentTHIEC 60068-2-30
Pvc FreeYes
Range Of ProductTeSys Deca
Rated Breaking Capacity550 A at 440 V for powe.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys D, TeSys Deca Ser.
Signalling Circuit Freq.25...400 Hz
Size101 MM,45 MM,85 MM
Special Featuresbuilt-in bidirectional .
StandardDNV;CCC;GL;UL;BV;GOST;L.
StandardsCSA C22.2 No 14 || EN 6.
Sub BrandTeSys D;TeSys Deca
Sustainable Offer StatusGreen Premium product
TerminationSpring Cage
Tightening Torquecontrol circuit 1.7 N.m.
Time Constant40 ms
Toxic Heavy Metal FreeYes
TypeIEC Contactor
UL Motor Switching (AC3)32 A
UNSPSC39121529
UPC785901491057
UPC Code785901491057
Utilisation CategoryAC-3 || AC-4 || AC-1 ||.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage2 W AC-3-5 W AC-1
WeeeThe product must be dis.
Width45 mm
