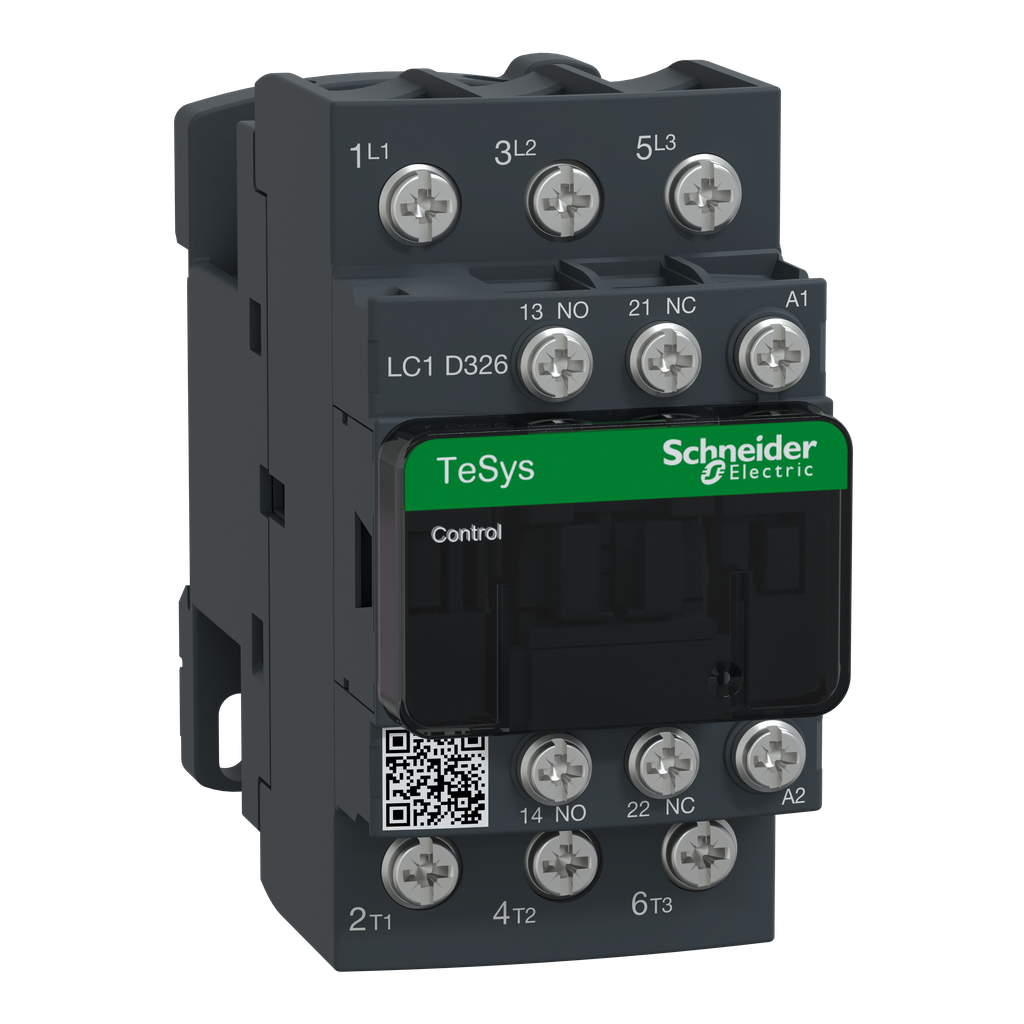

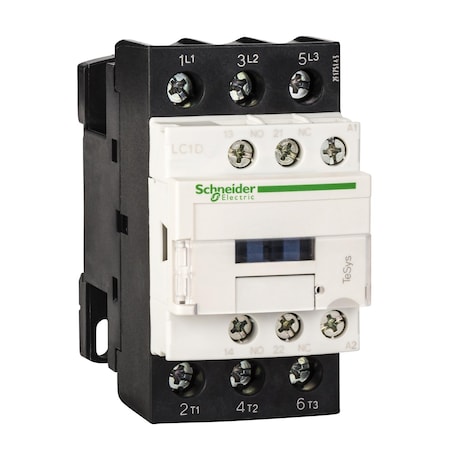

Schneider Electric LC1D326F7

B00CONPTVG

SCHNEIDER ELECTRIC Contactor 600-Vac 32-Amp Iec Plus Options LC1D326F7 Busway Adaptor 1600A, Indoor

SCHNEIDER ELECTRIC Contactor 600-Vac 32-Amp Iec Plus Options LC1D326F7 Busway Adaptor 1600A, Indoorzoom

Attributes

Key Value
3-Phase HP Rating (Max.)25 hp
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-60-80 ?C
ApplicationResistive load;motor co.
ASINB00CONPTVG
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2 mOhm - Ith 50 A 50 Hz.
Batteries Required?No
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC1D326F7
CertificationIEC
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1102029EN
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating7.5-7.5 VA 60 HZ 0.3 20.
Coil Technologywithout built-in suppre.
Coil Voltage110 V AC 50/60 Hz, 110 .
Coil Volts110 V AC
Compatibility CodeLC1D
ConnectionControl circuit lugs-ri.
Contact CompatibilityM2
Contact Configuration3 NO, 1 NO + 1 NC;3 NO;.
Contact Current Rating32 A
Contact Operation3NO
Contact Rating10 A 60 A Degrees C SIG.
Contactor Applicationresistive load || motor.
Contactor TypeNon-Reversing
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.3...0.6 Uc -40-70 ?C .
Control Voltage110 V
Country of OriginID - Indonesia, Indones.
Country of Origin (subj.Indonesia
Depth92 mm
Device Short NameLC1D
ECCNEAR99
Environmental DisclosureENVPEP110229EN
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Full Load Amps-Inductive32 A
GTIN03389110805192
Height85 mm
Hold-In Power Consumpti.7.5-7.5 VA 60 Hz 0.3 20.
Included ComponentsLC1D326F7
Inrush Power In Va70-70 VA 60 Hz 0.75 20 .
Insulation Resistance> 10 MOhm signalling ci.
Irms Rated Making Capac.140 A AC signalling cir.
ItemIEC Magnetic Contactor
Item model numberLC1D326F7
Item Package Quantity1
Item Typecontactor
Made in USANo
ManufacturerSchneider Electric
Max. Inductive Amps (AC.32A
Max. Resistive Amps (AC.50A
Maximum Horse Power Rat.2 hp 115 V at AC 50/60 .
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw7.5 kW 220...230 V AC 5.
MountingRail;plate
Mounting Supportrail || plate
Mounting TypePanel Mount
Net Weight0.375 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 Hz
Operating Temperature-40-70 A Degrees C AT U.
Overvoltage CategoryIII
Part NumberLC1D326F7
Pole Contact Composition3 NO
Poles Description3P
Power Dissipation Per P.2 W AC-3 || 5 W AC-1 ||.
Product CertificationsUL || RINA || DNV || CC.
Product Or Component Ty.contactor
Protective Coverwith
Pvc FreeYes
RangeTeSys || TeSys Deca
Range Of ProductTeSys D || TeSys Deca
Rated Breaking Capacity550 A 440 V power circu.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys D, TeSys Deca Ser.
Single-Phase HP Rating .5 hp
Size45 MM,85 MM,92 MM
Special Featureswithout built-in suppre.
StandardUL;RINA;DNV;CCC;LROS (L.
Sub BrandTeSys D;TeSys Deca
Sustainable Offer StatusGreen Premium product
Tightening Torquecontrol circuit 1.7 N.m.
Toxic Heavy Metal FreeYes
TypeIEC Contactor
UNSPSC39121529
UNSPSC Code39120000
UPC785901925996
Utilisation CategoryAC-4 || AC-3 || AC-1 ||.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage2 W AC-3-5 W AC-1
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB00CONPTVG161.851In StockSchneider Electric161.85 @ 1
us.rs-online.com71414498188.0411Schneider Electric188.04 @ 1
thumbzoomRadwellLC1D326F7190.015SCHNEIDER ELECTRIC SQUARE D190.0 @ 1
thumbzoomZoroG0850075196.871In Stock33Schneider Electric0.96196.87 @ 1
Newark20K1150218.041In StockSCHNEIDER ELECTRIC218.04 @ 1
Graybar25148059231.1681In StockSquare D (Schneider Electric)231.168 @ 1
thumbzoommayerelectric.comSQDLC1D326F7231.411In StockSQUARE D0.825231.41 @ 1
thumbzoomcrescentelectric.com174830307.81In StockSchneider Electric307.8 @ 1
