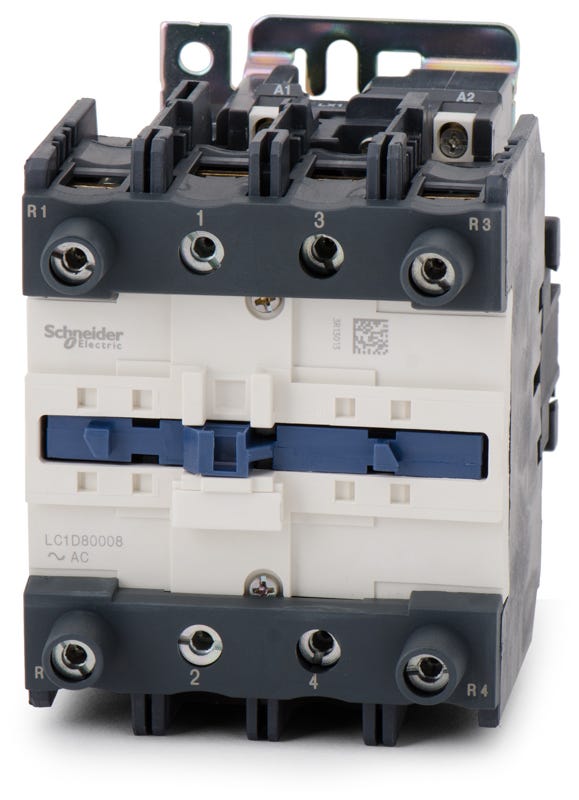

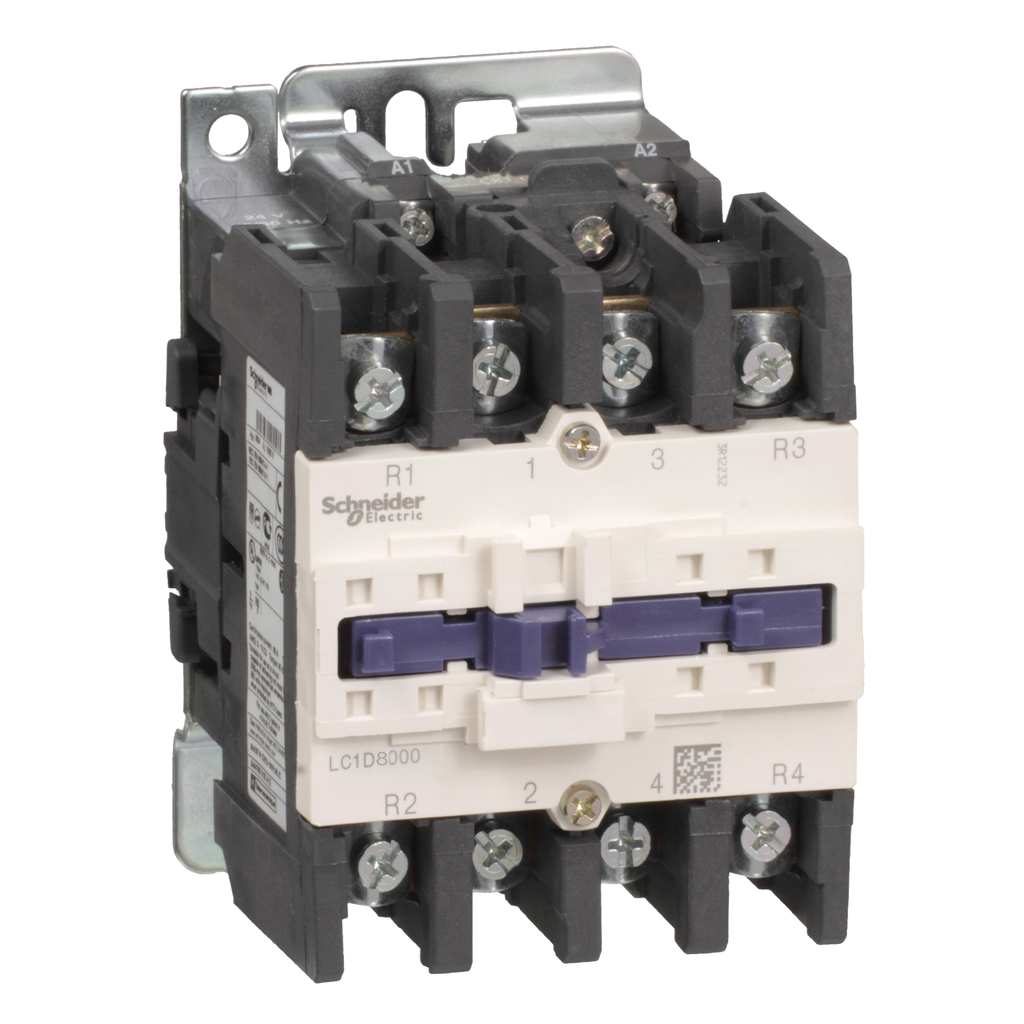

Schneider Electric LC1D80008F7

B00CONHE50

SCHNEIDER ELECTRIC Contactor 575-Vac 80-Amp Iec Plus Options LC1D80008F7 Busway Plug-in Straight Length 10Ft 400A

SCHNEIDER ELECTRIC Contactor 575-Vac 80-Amp Iec Plus Options LC1D80008F7 Busway Plug-in Straight Length 10Ft 400Azoom

Attributes

Key Value
[Icw] Rated Short-Time .640 A 40 ?C - 10 s powe.
[Ith] Conventional Free.125 A 60 ?C power circu.
[Uc] Control Circuit Vo.110 V AC 50/60 Hz
[Ui] Rated Insulation V.power circuit 600 V CSA.
[Uimp] Rated Impulse Wi.8 kV IEC 60947
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
Amperage125A
Applicationresistive load
Average Impedance0.8 mOhm - Ith 125 A 50.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC1D80008F7
China Rohs RegulationPro-active China RoHS d.
Coil Power Rating26-26 VA 60 HZ 0.3 20 A.
Coil Technologywithout built-in suppre.
Coil Voltage110 V AC 50/60 Hz
Coil Volts110 V AC
ConnectionControl circuit screw c.
Connections - Terminalscontrol circuit screw c.
Contact Configuration2 NO, 2 NC, 2 NO + 2 NC
Contact Current Rating125 A
Contact Rating125 A 60 A Degrees C PO.
Contactor Applicationresistive load
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.85...1.1 Uc -40-55 ?C.
Control Voltage125 V
Country of OriginCzech Republic
Country of Origin (subj.Czechia
Depth140 mm
Device Short NameLC1D
Environmental DisclosureENVPEP110205EN
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Full Load Amps-Inductive80 A
Gtin785901233817
Heat Dissipation6-10 W 50/60 Hz
Height127 mm
Hold-In Power Consumpti.26-26 VA 60 Hz 0.3 20 ?.
Inrush Power In Va245-245 VA 60 Hz 0.75 2.
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.1100 A 440 V power circ.
ItemIEC Magnetic Contactor
Item Typecontactor
Made in USANo
ManufacturerSchneider Electric
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability4 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
MountingRail Plate
Mounting Supportrail || plate
Mounting TypePanel Mount, Din Rail
MpnLC1D80008F7
Net Weight1.84 kg
Number of Poles4
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles3600 CYC/H 60 A Degrees.
Operating Temperature-40-70 A Degrees C AT U.
Operating Time20...35 ms closing || 6.
Overvoltage CategoryIII
Pole Contact Composition2 NO + 2 NC
Poles4
Poles Description4P
Pollution Degree3
Power Dissipation Per P.12.5 W AC-1
Product CertificationsGOST || UL || CCC || GL.
Product NameTeSys D
Product Or Component Ty.contactor
Protective Coverwithout
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys
Rated Breaking Capacity1100 A 440 V power circ.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys Deca Series, LC1
Size127 MM,140 MM,96 MM
Special Featureswithout built-in suppre.
StandardUL;CSA;CCC;EAC;UKCA;CB;.
StandardsCSA C22.2 No 14 || EN 6.
Sub BrandTeSys D;TeSys Deca
Sustainable Offer StatusGreen Premium product
Tightening Torquecontrol circuit 1.2 N.m.
Toxic Heavy Metal FreeYes
TypeIEC Contactor
Upc785901233817
UPC785901233817
Utilisation CategoryAC-1
Voltage110V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage12.5 W AC-1
WeeeThe product must be dis.
Width96 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.comLC1D80008F7367.231In StockSchneider Electric367.23 @ 1
Newark79C9744444.321In StockSCHNEIDER ELECTRIC444.32 @ 1
thumbzoomgordonelectricsupply.comLC1D80008F7535.01In Stock10SQUARE D535.0 @ 1
thumbzoommayerelectric.comSQDLC1D80008F7566.621In StockSCHNEIDER ELECTRIC4.048566.62 @ 1
us.rs-online.com71414598572.291In StockSchneider Electric572.29 @ 1
thumbzoomZoroG0850370588.51In Stock35Schneider Electric4.06588.5 @ 1
thumbzoommostelectric.comLC1D80008F7615.181In StockSQUARE D/TELEMECANIQUE615.18 @ 1
thumbzoomsustainablesupply.comC3039769677.221In StockSchneider Electric4.06677.22 @ 1
thumbzoomcrescentelectric.com128342833.3712Schneider Electric833.37 @ 1
