Schneider Electric LC1K09004F7

B00CONKQXW

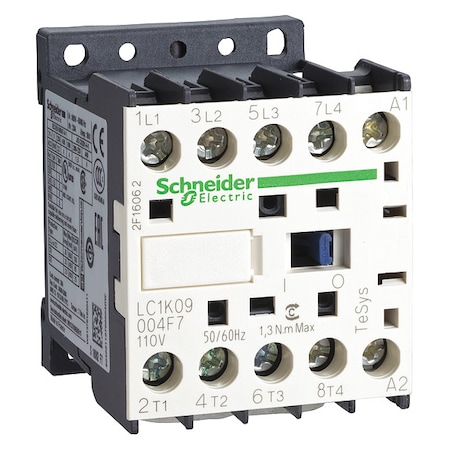

SCHNEIDER ELECTRIC LC1K09004F7 IEC Magnetic Contactor,110V Coil,9A

SCHNEIDER ELECTRIC LC1K09004F7 IEC Magnetic Contactor,110V Coil,9Azoom

Attributes

Key Value
3-Phase HP Rating (Max.)5 hp
Amperage20A
ApplicationResistive load
ApprovalsCSA, UL
Aux. Contact Configurat.4NO
Auxiliary ContactsNone
BrandSchneider Electric
Catalog NumberLC1K09004F7
Coil Power Rating4.5-4.5 VA 20 A Degrees.
Coil Voltage110/690, 110/690 VAC, 1.
Coil Volts110 V AC
ConnectionSCREW CLAMP TERMINALS 1.
Contact Configuration4NO, 4 NO
Contact Current Rating20 A
Contact Operation4NO
Contact Rating20 A 50 A Degrees C POW.
Contactor TypeNon-Reversing, IEC
Control Voltage110 V
Country of OriginID - Indonesia, Indones.
Depth57 mm
Dimensions58 mm H x 45 mm W x 57 .
ECCNEAR99
Electrical Durability0.18 Mcycles (20 A, AC-.
Enclosure TypeOpen
Environmental AttributesMercury Free, Toxic Hea.
Family SeriesSquare D Contactors, Te.
Fire RatingUL 94 V1, NF F 16-101, .
Frequency Rating50/60, 50/60 Hz
Full Load Amps-Inductive9 A
Full Load Amps-Resistive20 A
Fuse Amps25 A
Gross Weight0 lbs
Gtin00785901641735
Height58 mm
Inrush VA30 VA
IP RatingIP2X
ItemIEC Magnetic Contactor
Item NumberLC1K09004F7
Item TypeContactor;LC1K
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number581172
Max. Inductive Amps (AC.9A
Max. Resistive Amps (AC.15A
Mechanical Durability10 Mcycles
MountingRail Plate
Mounting typeRail/Surface
Mounting TypePanel Mount, Din Rail
Mounts OnPlate, Rail
MpnLC1K09004F7
Net Weight0 lbs, 0.18 kg
Number of Poles4
Operating Cycles3600 CYC/H,, 3600, 3600.
Operating Temperature-25 to 50, -25 to 50 de.
Phase3
Poles4NO, 4
Product SeriesTeSys
Rated Breaking Capacity110 A @ 415V, 440V, 220.
SeriesTeSys Micra Series, LC1.
Shock Resistance10 G for 11 ms (on X ax.
Size45 MM,57 MM,58 MM
Special Features20 A AT
StandardBS 5424-IEC 60947-NF C .
StandardsEN/IEC 60947-4-1, GB/T .
Sub BrandTeSys K
Terminal TypeScrew Clamp
TerminationScrew
TypeNon-Reversing
UNSPSC39121529
UPC785901641735
Upc785901641735
Vibration Resistance4 G (Contactor Closed),.
Voltage110V
Warranty DescriptionContractual Warranty:18.
Width45 mm
Working Height6561.68 ft

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomkempstoncontrols.co.ukLC1K09004F740.43689651In StockSchneider40.4368965 @ 1
thumbzoomsuperbreakers.comLC1K09004F743.141In StockSchneider Electric43.14 @ 1
thumbzoomTMELC1K09004F750.071In StockSCHNEIDER ELECTRIC50.07 @ 1
thumbzoomstandardelectricsupply.com229667975.111In StockSchneider Electric75.11 @ 1
thumbzoomZoroG056871878.191In StockSchneider Electric0.478.19 @ 1
Graybar9718975784.01In StockSquare D (Schneider Electric)84.0 @ 1
thumbzoomblackhawksupply.comLC1K09004F787.961In StockSquare D87.96 @ 1
thumbzoomGalcoLC1K09004F7-SQD88.721In StockSquare D88.72 @ 1
thumbzoommostelectric.comLC1K09004F789.0711SQUARE D/TELEMECANIQUE89.07 @ 1
us.rs-online.com7141473289.2613Schneider Electric89.26 @ 1
thumbzoomcrescentelectric.com27901190.091In StockSchneider Electric90.09 @ 1
thumbzoomNewark16B23895.591In StockSCHNEIDER ELECTRIC95.59 @ 1
thumbzoomsustainablesupply.comC303952198.221In StockSchneider Electric0.498.22 @ 1
thumbzoomNational Supply Network69664373123.11In StockSchneider Electric123.1 @ 1
