Schneider LC2D09B7

B00DBSOFOK

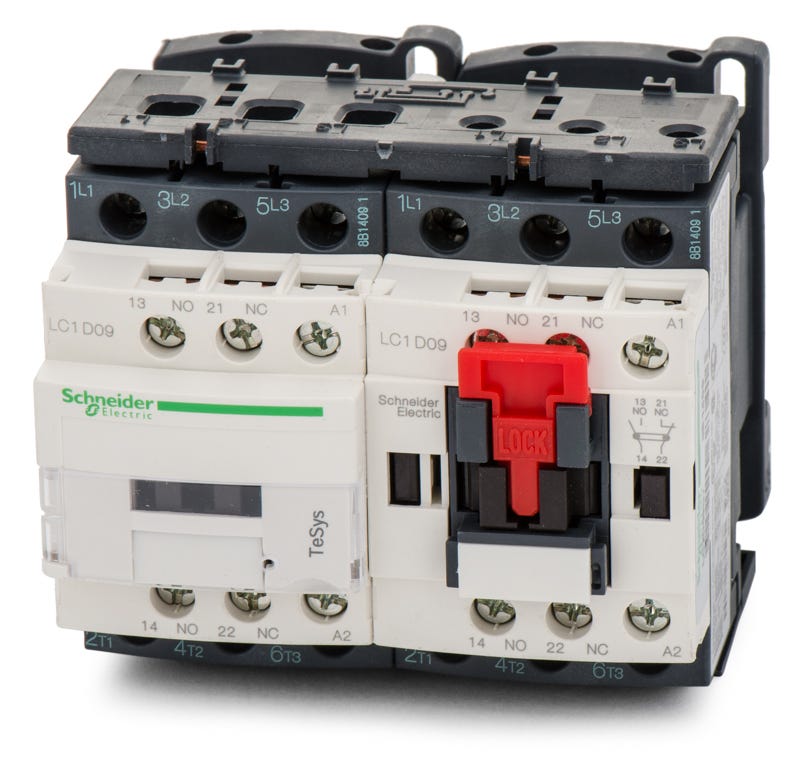

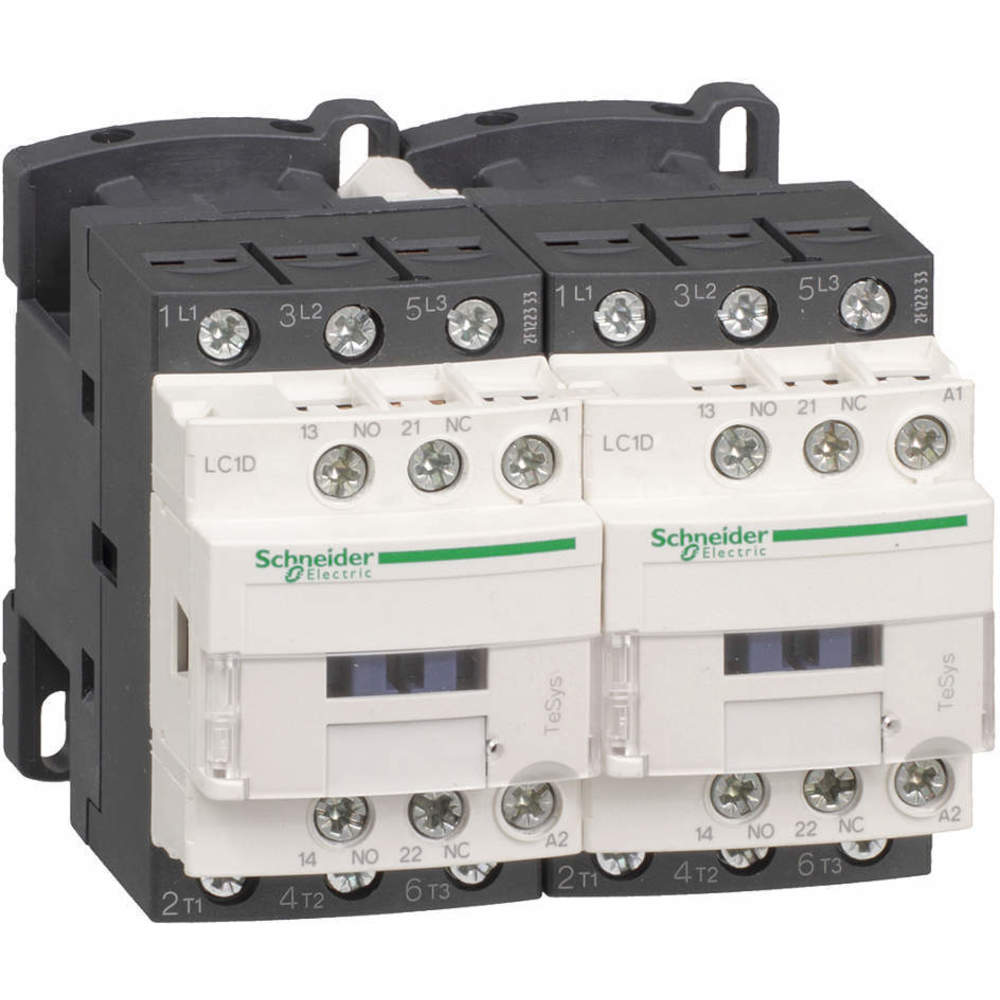

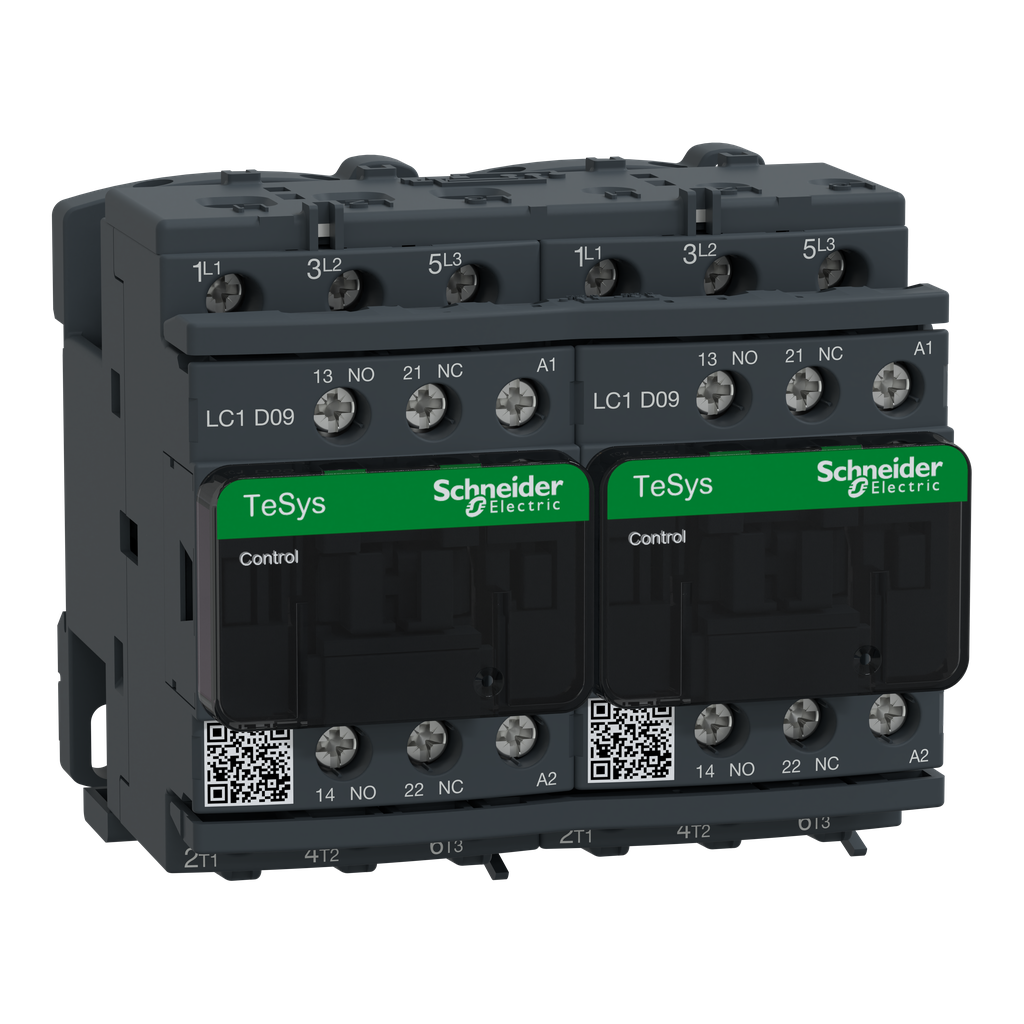

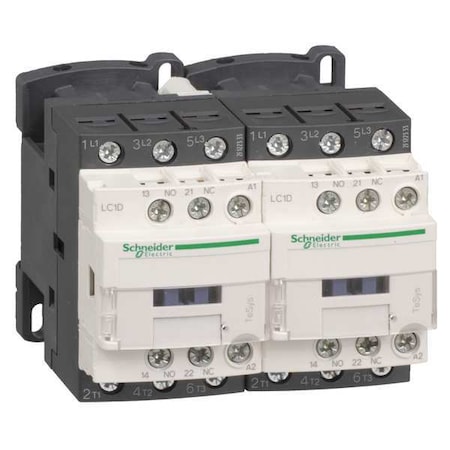

NEW TeSys D AC Contactor LC2D09B7 LC2-D09B7 3P 9A 24VAC Coil

NEW TeSys D AC Contactor LC2D09B7 LC2-D09B7 3P 9A 24VAC Coilzoom

Attributes

Key Value
3-Phase HP Rating (Max.)7-1/2 hp
[Icw] Rated Short-Time .30 A 40 ?C - 10 min pow.
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Uc] Control Circuit Vo.24 V AC 50/60 Hz
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
ActionReversing
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
Amperage9A
ApplicationMotor control;resistive.
Aux. Contact Configurat.1NO/1NC
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contact Form1NC/1NO
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 25 A 50 .
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC2D09B7
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1501004
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating7.5-7.5 VA 60 HZ 0.3 20.
Coil Technologywithout built-in suppre.
Coil Voltage24 Vac, 24 V AC 50/60 Hz
Coil Volts24 V AC, 24V AC
ConnectionPOWER CIRCUIT SCREW CLA.
Connections - Terminalspower circuit screw cla.
Contact Configuration1 NO + 1 NC
Contact Current Rating9 A
Contact Operation3NO
Contact Rating10 A 60 A Degrees C SIG.
Contactor Applicationmotor control || resist.
Contactor TypeIEC, Reversing
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.3...0.6 Uc -40-70 ?C .
Control Voltage24 V
Country of OriginID - Indonesia, Indones.
Country of Origin (subj.Multiple
Depth86 mm, 5.3 in
Device Presentationpreassembled with rever.
Device Short NameLC2D
ECCNEAR99
Enclosure NEMA RatingNo Enclosure
Environmental DisclosureENVPEP1501004
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Full Load Amps-Inductive9 A
Full Load Amps-Resistive20 A
GTIN00785901207368, 0338911.
Gtin785901207368
Heat Dissipation2-3 W 50/60 Hz
Height3.8 in, 77 mm
Hold-In Power Consumpti.7.5-7.5 VA 60 Hz 0.3 20.
HP @ 1 Phase - 120V1/2 hp
HP @ 1 Phase - 230V1
HP @ 1 Phase - 240V1 hp
HP @ 3 Phase - 208V2 hp
HP @ 3 Phase - 240V2 hp
HP @ 3 Phase - 480V5 hp
HP @ 3 Phase - 575V7 1/2 hp
Hz50/60 Hz, 50/60
IncludesElectrical Interlock
Inrush Power In Va70-70 VA 60 Hz 0.75 20 .
Insulation Resistance> 10 MOhm signalling ci.
Interlocking Typemechanical
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.250 A 440 V power circu.
ItemIEC Magnetic Contactor
Item TypeReversing contactor;LC2D
Made in USANo
ManufacturerSchneider Electric
Max. Inductive Amps (AC.9A
Max. Resistive Amps (AC.20A
Maximum Horse Power Rat.0.5 hp 115 V at AC 60 H.
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw2.2 kW 220...230 V AC 5.
MountingRail Plate
Mounting Supportplate || rail
Mounting TypeDIN Rail Mount ; Panel .
MpnLC2D09B7
Net Weight0.687 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 HZ,3600 CYC/H .
Operating Temperature-20-60 A Degrees C,-40-.
Operating Time12...22 ms closing || 4.
Overvoltage CategoryIII
Phase3
Pole Contact Composition3 NO
Poles3
Poles Description3P
Pollution Degree3
Power Dissipation Per P.0.2 W AC-3 || 1.56 W AC.
Product CertificationsDNV || CSA || CCC || UL.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.reversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity250 A 440 V power circu.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
ReversingYes
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys D, LC2D, TeSys De.
Signalling Circuit Freq.25...400 Hz
Single-Phase HP Rating .1 hp
Size77 MM,86 MM,90 MM
Special Features0.5 HP 115 V AC 60 HZ 1.
StandardDNV;CSA;CCC;UL;GL;LROS .
StandardsCSA C22.2 No 14 || EN 6.
Sub BrandTeSys D
Sustainable Offer StatusGreen Premium product
Tightening Torquepower circuit 1.7 N.m s.
Toxic Heavy Metal FreeYes
TypeIEC Contactor
UNSPSC39121529
Upc785901207368
UPC785901207368
UPC Code785901207368
Utilisation CategoryAC-3 || AC-1 || AC-3e
Voltage24V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage0.2 W AC-3-1.56 W AC-1
WeeeThe product must be dis.
Width90 mm, 3.8 in
