Schneider Electric LC2D09BD

B00CONIYBI

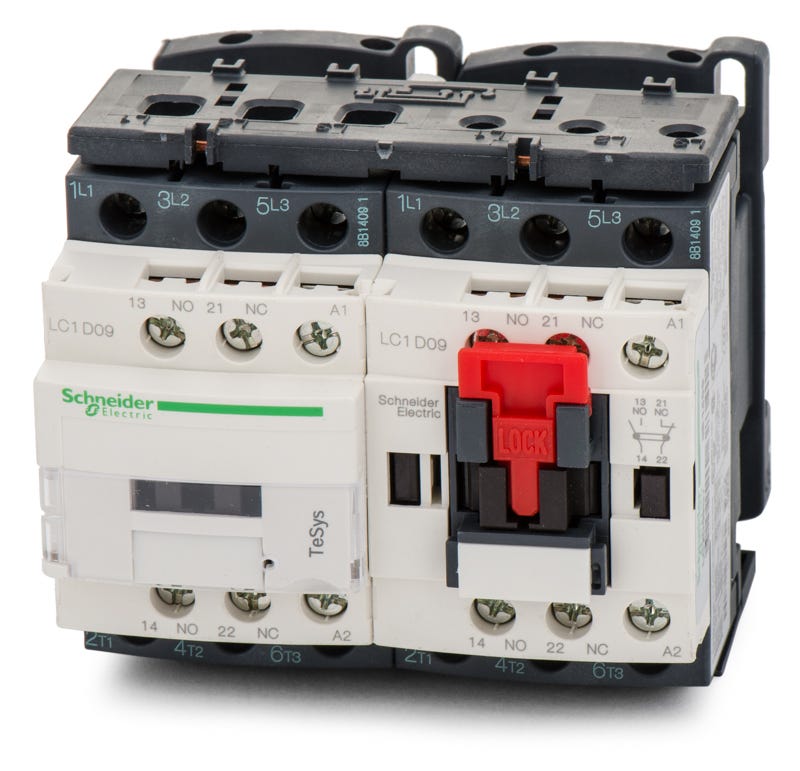

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 9A Iec LC2D09BD Soft Start 208-690Vac 210A Ats48

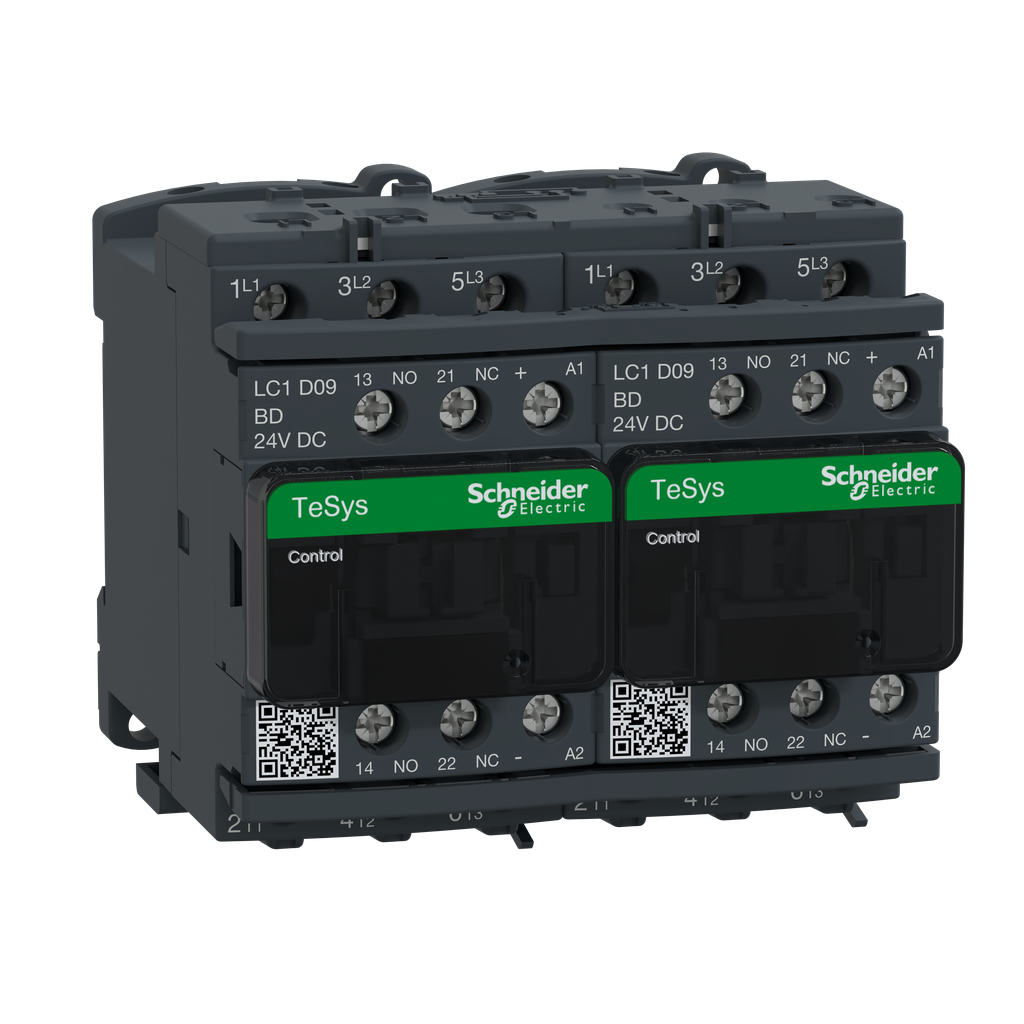

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 9A Iec LC2D09BD Soft Start 208-690Vac 210A Ats48zoom

Attributes

Key Value
3-Phase HP Rating (Max.)7-1/2 hp
[Icw] Rated Short-Time .30 A 40 ?C - 10 min pow.
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Uc] Control Circuit Vo.24 V DC
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
ActionReversing
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
Amperage9A
ApplicationMotor control;resistive.
Aux. Contact Configurat.1NO/1NC
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contact Form1NC/1NO
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 25 A 50 .
BrandSquare D, Schneider Ele.
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC2D09BD
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1102030EN
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating5.4-5.4 W 20 A Degrees C
Coil Technologybuilt-in bidirectional .
Coil Voltage24 V DC, 24 Vdc
Coil Volts24V DC, 24 V DC
ConnectionPOWER CIRCUIT SCREW CLA.
Connections - Terminalspower circuit screw cla.
Contact Configuration1 NO + 1 NC
Contact Current Rating9 A
Contact Operation3NO
Contact Rating10 A 60 A Degrees C SIG.
Contactor Applicationmotor control || resist.
Contactor TypeIEC, Reversing
Control Circuit TypeDC standard
Control Circuit Voltage.0.1...0.25 Uc -40-70 ?C.
Control Voltage24 V
Country of OriginFR - France, France
Country of Origin (subj.France
Current Stock15
Depth95 mm, 3.54 in, 0.079 in
Device Presentationpreassembled with rever.
Device Short NameLC2D
Dimensions77 x 90 x 95 mm
ECCNEAR99
Enclosure NEMA RatingNo Enclosure
Environmental DisclosureENVPEP110230EN
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Frame / Series / Class .TeSys
Full Load Amps-Inductive9, 9 A
Full Load Amps-Resistive20 A, 20
GTIN03389110392081
Gtin785901207580
Height77 mm, 3.54 in
Hold-In Power Consumpti.5.4-5.4 W 20 ?C
Horsepower Rating8 HP
HP @ 1 Phase - 120V1/2 hp
HP @ 1 Phase - 230V1
HP @ 1 Phase - 240V1 hp
HP @ 3 Phase - 208V2 hp
HP @ 3 Phase - 240V2 hp
HP @ 3 Phase - 480V5 hp
HP @ 3 Phase - 575V7 1/2 hp
Hz50/60
IncludesElectrical Interlock
Inrush Power In W5.4-5.4 W 20 ?C)
Insulation Resistance> 10 MOhm signalling ci.
Interlocking Typemechanical
International ShippingNo
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.250 A 440 V power circu.
ItemIEC Magnetic Contactor
Item TypeReversing contactor;LC2D
Length3.031 in
Made in USANo
ManufacturerSchneider Electric
Max. Inductive Amps (AC.9A
Max. Resistive Amps (AC.20A
Maximum Horse Power Rat.0.5 hp 115 V at AC 60 H.
Maximum Operating Rate3600 cyc/h 60 ?C
Maximum Operating Tempe.60 C
Mechanical Durability30 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Operating Tempe.-5 C
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw2.2 kW 220...230 V AC 5.
MountingRail Plate
Mounting Supportrail || plate
Mounting TypeDIN Rail Mount ; Panel .
MpnLC2D09BD
Net Weight1.017 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 HZ,3600 CYC/H .
Operating Temperature-20-60 A Degrees C,-40-.
Operating Time53.55...72.45 ms closin.
Overvoltage CategoryIII
Phase3
Pole Contact Composition3 NO
Poles3
Poles Description3P
Pollution Degree3
Power Dissipation Per P.0.2 W AC-3 || 1.56 W AC.
Power Rating5.5 kW
Primary TypeIEC Contactor
Product CertificationsDNV || CSA || CCC || UL.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.reversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity250 A 440 V power circu.
Reach RegulationReference contains Subs.
ReversingYes
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys D, LC2D, TeSys De.
Signalling Circuit Freq.25...400 Hz
Single-Phase HP Rating .1 hp
Size77 MM,90 MM,95 MM
SKUZO-G0810372
Special Features0.5 HP 115 V AC 60 HZ 1.
StandardDNV;CSA;CCC;UL;GL;LROS .
StandardsCSA C22.2 No. 14 ; EN 6.
Sub BrandTeSys D
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Temperature Operating R.-5 to 60 C
Terminal TypeScrew Terminal
TerminationScrew Clamp
Tightening Torquepower circuit 1.7 N.m s.
Time Constant28 ms
TypeIEC Contactor
UNSPSC39121529
Upc785901207580
UPC785901207580
UPC Code785901207580
Utilisation CategoryAC-3 || AC-1 || AC-3e
Voltage24V
Voltage Rating575 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage0.2 W AC-3-1.56 W AC-1
Width0 in, 90 mm, 3.54 in
