Schneider Electric LC2D09M7

B00CONEHXC

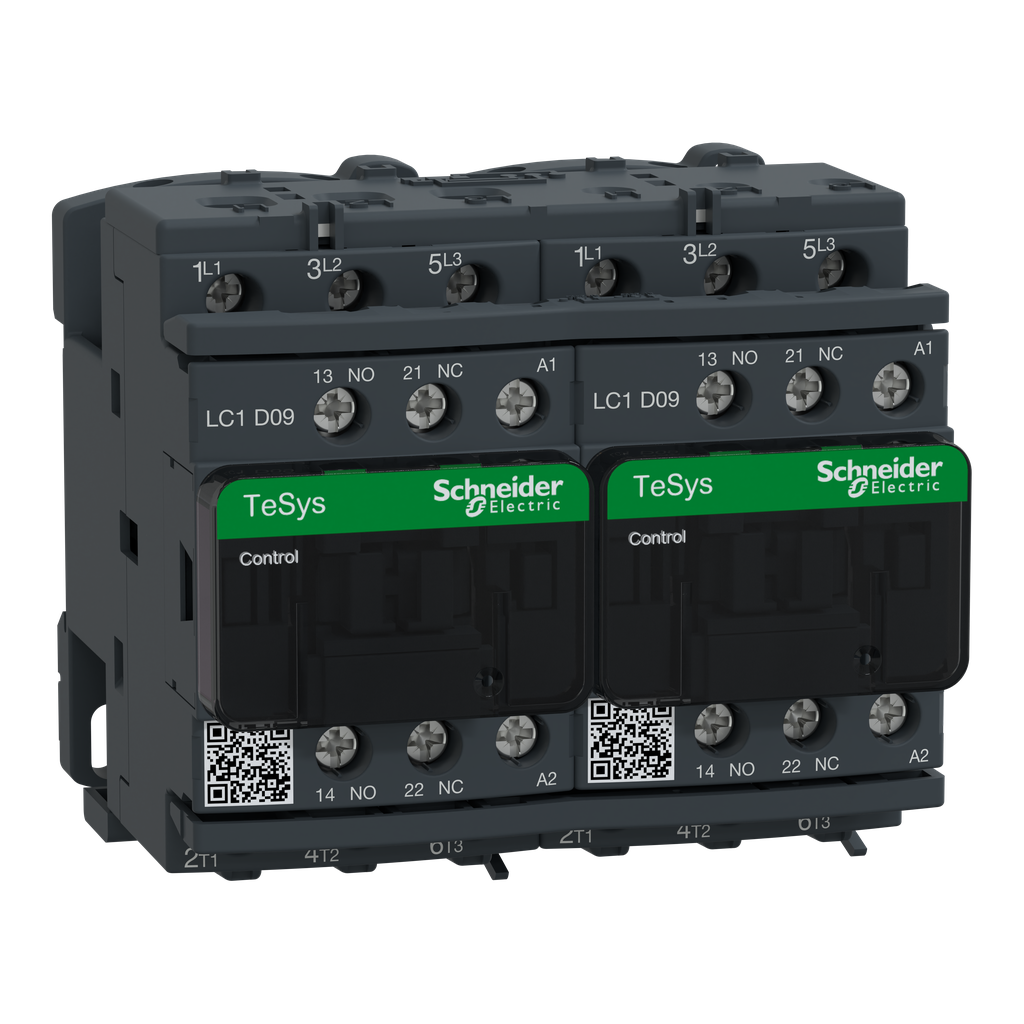

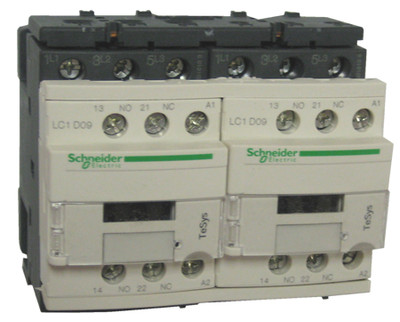

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 9-Amp Iec LC2D09M7 Soft Start 208-690Vac 47A Ats48

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 9-Amp Iec LC2D09M7 Soft Start 208-690Vac 47A Ats48zoom

Attributes

Key Value
3-Phase HP Rating (Max.)7-1/2 hp
[Icw] Rated Short-Time .30 A 40 ?C - 10 min pow.
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Uc] Control Circuit Vo.220 V AC 50/60 Hz
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
ApplicationMotor control;resistive.
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 25 A 50 .
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC2D09M7
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1501004
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating7-1/2 hp at 575 to 600 .
Coil Technologywithout built-in suppre.
Coil Voltage220 Vac, 220, 220 VAC, .
ConnectionPOWER CIRCUIT SCREW CLA.
Connections - Terminalspower circuit screw cla.
Contact Configuration3NO, 1 NO + 1 NC
Contact Operation3NO
Contact Rating10 A 60 A Degrees C SIG.
Contactor Applicationmotor control || resist.
Contactor TypeReversing
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.3...0.6 Uc -40-70 ?C .
Country of OriginFR - France, France
Depth86 mm
Device Presentationpreassembled with rever.
Device Short NameLC2D
Dimensions77 mm H x 90 mm W x 86 .
ECCNEAR99
Enclosure TypeOpen
Environmental DisclosureENVPEP1501004
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Frequency Rating50/60, 50/60 Hz
Heat Dissipation2-3 W 50/60 Hz
Height77 mm
Hold-In Power Consumpti.7.5-7.5 VA 60 Hz 0.3 20.
Inrush Power In Va70-70 VA 60 Hz 0.75 20 .
Insulation Resistance> 10 MOhm signalling ci.
Interlocking Typemechanical
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.250 A 440 V power circu.
Item TypeReversing contactor;LC2D
Made in USANo
ManufacturerSchneider Electric
Max. Inductive Amps (AC.9A
Max. Resistive Amps (AC.20A
Maximum Horse Power Rat.0.5 hp 115 V at AC 60 H.
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw2.2 kW 220...230 V AC 5.
MountingRail Plate
Mounting Supportplate || rail
Mounting typePlate/Rail
Net Weight0.687 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Auxiliary Con.1NO-1NC
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 HZ,3600 CYC/H .
Operating Temperature-20-60 A Degrees C,-40-.
Operating Time12...22 ms closing || 4.
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles Description3P
Pollution Degree3
Power Dissipation Per P.0.2 W AC-3 || 1.56 W AC.
Product CertificationsDNV || CSA || CCC || UL.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.reversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity250 A 440 V power circu.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys? D LC2D, TeSys D
Signalling Circuit Freq.25...400 Hz
Single-Phase HP Rating .1 hp
Size77 MM,86 MM,90 MM
Special Features0.5 HP 115 V AC 60 HZ 1.
StandardDNV;CSA;CCC;UL;GL;LROS .
StandardsCSA C22.2 No 14 || EN 6.
Sub BrandTeSys D
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew Clamp, Screw/Clamp
Tightening Torquepower circuit 1.7 N.m s.
Toxic Heavy Metal FreeYes
TypeReversing
UNSPSC39121529
UPC785901708308
Utilisation CategoryAC-1 || AC-3
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage0.2 W AC-3-1.56 W AC-1
WeeeThe product must be dis.
Width90 mm
