Schneider Electric LC2D12BLV

B00CONC25C

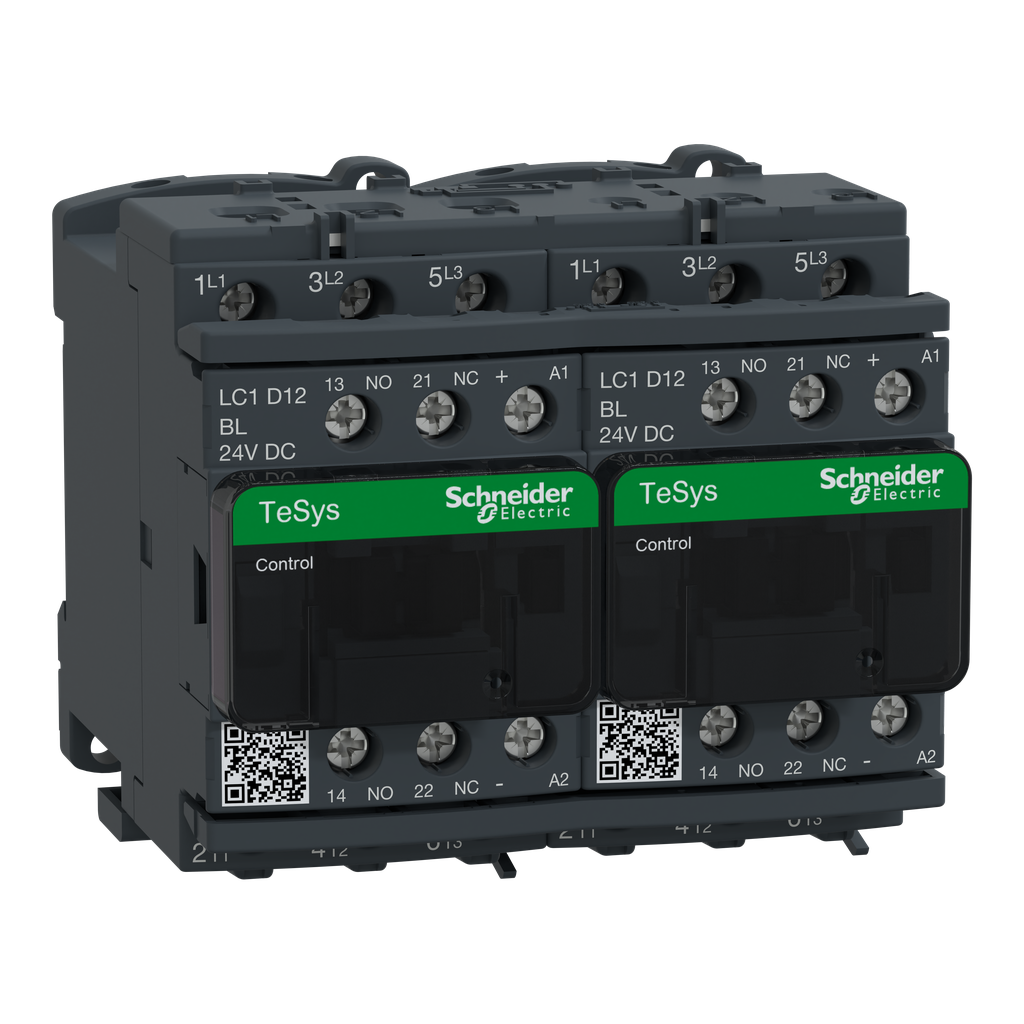

SCHNEIDER ELECTRIC Rev Contactor 575-Vac 12-Amp Iec LC2D12BLV Ac Drive, Baseplate 3 Hp 230V 3 Phase

SCHNEIDER ELECTRIC Rev Contactor 575-Vac 12-Amp Iec LC2D12BLV Ac Drive, Baseplate 3 Hp 230V 3 Phasezoom

Attributes

Key Value
[Icw] Rated Short-Time .30 A 40 ?C - 10 min pow.
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Uc] Control Circuit Vo.24 V DC
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 25 A 50 .
California Proposition .Antimony oxide & Antimo.
China Rohs RegulationProduct out of China Ro.
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating2.4 W
Coil Technologybuilt-in bidirectional .
Coil Voltage24 VDC
Connection typeScrew
Connections - Terminalspower circuit screw cla.
Contact Configuration3NO
Contact Rating10/25 A
Contactor Applicationresistive load || motor.
Control Circuit TypeDC low consumption
Control Circuit Voltage.0.1...0.3 Uc -40-70 ?C .
Depth95 mm
Device Presentationpreassembled with rever.
Device Short NameLC2D
Dimensions90 mm W x 95 mm D x 77 .
Enclosure TypeIP20
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Frequency Rating25 to 400 Hz
Height77 mm
Hold-In Power Consumpti.2.4-2.4 W 20 ?C
Inrush Power In W2.4-2.4 W 20 ?C)
Insulation Resistance> 10 MOhm signalling ci.
Interlocking Typeelectrical and mechanic.
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.250 A 440 V power circu.
Maximum Horse Power Rat.1 hp 115 V at AC 60 Hz .
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw3 kW 220...230 V AC 50 .
Mounting Supportrail || plate
Mounting typeSurface
Net Weight1.027 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Auxiliary Con.1NO-1NC
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles3600 Cycles
Operating Temperature-20 to 60 deg C
Operating Time65.45...88.55 ms closin.
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles Description3P
Pollution Degree3
Power Dissipation Per P.1.56 W AC-1 || 0.36 W A.
Product CertificationsDNV || CSA || CCC || UL.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.reversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity250 A 440 V power circu.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesLC2D
Signalling Circuit Freq.25...400 Hz
StandardsCSA C22.2 No 14 || EN 6.
Terminal TypeScrew Clamp
Tightening Torquepower circuit 1.7 N.m s.
Time Constant40 ms
TypeReversing
Utilisation CategoryAC-3 || AC-1
Warranty18 months
Wattage0.36 W
Width90 mm
