Schneider LC2D12G7

Schneider LC2D12G7

mpn:
LC2D12G7
brand:
Schneider Electric
manufacturer:
Schneider Electric
MPN:
LC2D12G7
Description:
Reversing Contactor LC2, 3P, 12 A, 10 hp, 120 VAC, TeSys Deca Series
Weight:
2.2
Weight:
2.2 LB
Preferred Price:
233.64
Price:
233.64
Min Simple Price:
132.0
Absolute Min Price:
187.44
Min Price:
187.44
Dimensions:
[1.0, 1.0, 1.0]
qty:
4
simpleSku:
jM2NTM:::LC2D12G7
sku:
jM2NTM::3U:LC2D12G7@y0
condition:
11
seller:
NRI Industrial
amzMan:
schneider
HazMat:
False
DropShip:
True

Attributes

Key ^Value
3-Phase HP Rating (Max.), HP @ 3 Phase - 575V, Max HP 575/600V 3PH10 hp
[Icw] Rated Short-Time Withstand Current30 A 40 ?C - 10 min for power circuit || 61 A 40 ?C - 1 min for power circuit || 105 A 40 ?C - 10 s for power circuit || 210 A 40 ?C - 1 s for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit
[Ith] Conventional Free Air Thermal Current10 A (at 60 ?C) for signalling circuit || 25 A (at 60 ?C) for power circuit
[Uc] Control Circuit Voltage, Coil Voltage120 V AC 50/60 Hz
[Ui] Rated Insulation Voltagepower circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Action, Contactor TypeReversing
Ambient Air Temperature For Operation-40-60 ?C || 60-70 ?C with derating
Ambient Air Temperature For Storage-60-80 ?C
ApplicationResistive load;motor control
ApprovalsCSA, IEC, UL
Aux. Contact Configuration1NO/1NC
Auxiliary Contact Composition, Contact Configuration1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Average Impedance2.5 mOhm - Ith 25 A 50 Hz for power circuit
Brand, ManufacturerSchneider Electric
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Catalog Number, Item NumberLC2D12G7
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Circularity ProfileENVEOLI1501004
Climatic WithstandIACS E10 || IEC 60947-1 Annex Q category D
Coil Power Rating7.5-7.5 VA 60 HZ 0.3 20 A Degrees C)-7-7 VA 50 HZ 0.3 20 A Degrees C)
Coil Technologywithout built-in suppressor module
Coil Voltage, Nominal Coil Voltage120 Vac
Coil Volts120 V AC
ConnectionPOWER CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA?FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA?FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA?FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA?FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA?SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA?SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA?FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA?FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA?FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA?FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA?SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA?SOLID WITHOUT CABLE END
Connections - Terminalspower circuit screw clamp terminals 1 1-4 mm?flexible without cable end || power circuit screw clamp terminals 2 1-4 mm?flexible without cable end || power circuit screw clamp terminals 1 1-4 mm?flexible with cable end || power circuit screw clamp terminals 2 1-2.5 mm?flexible with cable end || power circuit screw clamp terminals 1 1-4 mm?solid || power circuit screw clamp terminals 2 1-4 mm?solid || control circuit screw clamp terminals 1 1-4 mm?flexible without cable end || control circuit screw clamp terminals 2 1-4 mm?flexible without cable end || control circuit screw clamp terminals 1 1-4 mm?flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm?flexible with cable end || control circuit screw clamp terminals 1 1-4 mm?solid || control circuit screw clamp terminals 2 1-4 mm?solid
Contact Current Rating, Full Load Amps-Inductive12 A
Contact Operation, Poles3NO
Contact Rating10 A 60 A Degrees C SIGNALLING CIRCUIT-25 A 60 A Degrees C POWER CIRCUIT
Contactor Applicationresistive load || motor control
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage Limits0.3...0.6 Uc -40-70 ?C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 ?C operational AC 50 Hz || 0.85...1.1 Uc -40-60 ?C operational AC 60 Hz || 1...1.1 Uc 60-70 ?C operational AC 50/60 Hz
Control Voltage120 V
Country of OriginID - Indonesia, Indonesia
Country of Origin (subject to change)Multiple
Depth86 mm, 0.079 in, 3.39 in
Device Presentationpreassembled with reversing power busbar
Device Short NameLC2D
Dimensions77 x 90 x 86 mm
ECCNEAR99
Enclosure NEMA RatingNo Enclosure
Environmental DisclosureENVPEP1501004
Eu Rohs DirectiveCompliant
Family SeriesSquare D Contactors
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Frame / Series / Class / CodeTeSys
Full Load Amps-Resistive25 A
Gross Weight1.795 lbs
Heat Dissipation2-3 W 50/60 Hz
Height77 mm, 3.03 in
Hold-In Power Consumption In Va7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 ?C) || 7-7 VA 50 Hz cos phi 0.3 (at 20 ?C)
Horsepower Rating8 HP
HP @ 1 Phase - 120V1 hp
HP @ 1 Phase - 240V, Single-Phase HP Rating (Max.)2 hp
HP @ 3 Phase - 208V, HP @ 3 Phase - 240V, Max HP 200/208V 3PH, Max HP 230/240V 3PH3 hp
HP @ 3 Phase - 480V7 1/2 hp
Hz50/60
Inrush Power In Va70-70 VA 60 Hz cos phi 0.75 (at 20 ?C) || 70-70 VA 50 Hz cos phi 0.75 (at 20 ?C)
Insulation Resistance> 10 MOhm for signalling circuit
Interlocking Typemechanical
Ip Degree Of ProtectionIP20 front face IEC 60529
Irms Rated Making Capacity250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1
ItemIEC Magnetic Contactor
Item TypeReversing contactor;LC2D
Length3.031 in
Made in USANo
ManufacturerSquare D
Manufacturer Part Number419370
Max HP 460/480V 3PH7.5 hp
Max. Inductive Amps (AC3)12A
Max. Resistive Amps (AC1)25A
Maximum Horse Power Rating1 hp at 115 V AC 60 Hz for 1 phase motors || 2 hp at 230/240 V AC 60 Hz for 1 phase motors || 3 hp at 200/208 V AC 60 Hz for 3 phase motors || 3 hp at 230/240 V AC 60 Hz for 3 phase motors || 7.5 hp at 460/480 V AC 60 Hz for 3 phase motors || 10 hp at 575/600 V AC 60 Hz for 3 phase motors
Maximum Operating Rate3600 cyc/h 60 ?C
Maximum Operating Temperature60 C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
Mercury Free, Pvc Free, Reach Free Of Svhc, Reversing, Rohs Exemption Information, Toxic Heavy Metal FreeYes
Minimum Operating Temperature-5 C
Minimum Switching Current5 mA for signalling circuit
Minimum Switching Voltage17 V for signalling circuit
Motor Power Kw3 kW at 220...230 V AC 50 Hz || 5.5 kW at 380...400 V AC 50 Hz || 5.5 kW at 415 V AC 50 Hz || 5.5 kW at 440 V AC 50 Hz || 7.5 kW at 500 V AC 50 Hz || 7.5 kW at 660...690 V AC 50 Hz
MountingRail Plate
Mounting Supportrail || plate
Mounting TypeDIN Rail Mount ; Panel Mount
Net Weight1.605 lbs, 0.697 kg
Non-Overlap Time1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Number of Poles, Pollution Degree3
Operating Altitude0...9842.52 ft (0...3000 m)
Operating Cycles25...400 HZ,3600 CYC/H 60 A Degrees C
Operating Temperature-20-60 A Degrees C,-40-70 A Degrees C AT UC
Operating Time12...22 ms closing || 4...19 ms opening
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles Description3P
Power Dissipation Per Pole1.56 W AC-1 || 0.36 W AC-3 || 0.36 W AC-3e
Power Rating7.5 kW
Primary Type, TypeIEC Contactor
Product CertificationsDNV || CSA || CCC || UL || GL || LROS (Lloyds register of shipping) || BV || RINA || GOST || UKCA
Product NameTeSys Deca
Product Or Component Typereversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
RangeTeSys || TeSys Deca
Rated Breaking Capacity250 A at 440 V for power circuit conforming to IEC 60947
Reach RegulationFree of Substances of Very High Concern above the threshold
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
SeriesTeSys Deca Series
Series, Sub BrandTeSys D
Signalling Circuit Frequency25...400 Hz
Size77 MM,86 MM,90 MM
Special Features1 HP 115 V AC 60 HZ 1 PHASE-2 HP 230/240 V AC 60 HZ 1 PHASE-3 HP 200/208 V AC 60 HZ 3 PHASE-3 HP 230/240 V AC 60 HZ 3 PHASE-7.5 HP 460/480 V AC 60 HZ 3 PHASE-10 HP 575/600 V AC 60 HZ 3 PHASE,WITHOUT BUILT-IN SUPPRESSOR MODULE
StandardDNV;CSA;CCC;UL;GL;LROS (Lloyds register of shipping);BV;RINA;GOST;UKCA
StandardsUL, CSA, IEC, EN, CSA C22.2 No. 14 ; EN 60947-4-1 ; EN 60947-5-1 ; IEC 60947-4-1 ; IEC 60947-5-1 ; UL 508, CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
Sustainable Offer StatusGreen Premium product
Temperature Operating Range-5 to 60 C
Terminal Type, TerminationScrew Terminal
TerminationScrew Clamp
Tightening Torquepower circuit 1.7 N.m screw clamp terminals flat ? 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat ? 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 1.7 N.m screw clamp terminals pozidriv No 2
UNSPSC39121529
UPC, UPC Code785901207429
Utilisation CategoryAC-3 || AC-1 || AC-3e
Voltage Rating575 V
Warranty18 months
Warranty DescriptionContractual Warranty:18 months
Wattage1.56 W AC-1-0.36 W AC-3
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width0 in, 90 mm, 3.54 in

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomNRI IndustrialD646057132.0132.01In StockSCHNEIDER132.0 @ Qty: 1+
simplybreakers.comLC2D12G7159.99159.991In StockSchneider159.99 @ Qty: 1+
SuperbreakersLC2D12G7163.49163.491In StockSchneider Electric163.49 @ Qty: 1+
thumbzoomkentstore.comLC2D12G7179.54179.54114Square D/Telemecanique179.54 @ Qty: 1+
thumbzoomComponent Electronics299-12022307.69307.6911SCHNEIDER307.69 @ Qty: 1+
thumbzoomblackhawksupply.comLC2D12G7315.56315.561In StockSquare D315.56 @ Qty: 1+
thumbzoomNewark40C1833329.61329.611In StockSCHNEIDER ELECTRIC329.61 @ Qty: 1+
Graybar22053009331.2288331.22881In StockSquare D (Schneider Electric)331.2288 @ Qty: 1+
thumbzoomGalcoLC2D12G7-SQD353.97353.9711Square D1.795353.97 @ Qty: 1+
standardelectricsupply.com933882364.72364.72116Schneider Electric364.72 @ Qty: 1+
thumbzoomsustainablesupply.comC3039734379.73379.731In StockSchneider Electric1.79379.73 @ Qty: 1+
thumbzoommayerelectric.comSQDLC2D12G7408.34408.341In StockSCHNEIDER ELECTRIC1.5334408.34 @ Qty: 1+
thumbzoomZoroG0568465431.2431.21In Stock43Schneider Electric1.79431.2 @ Qty: 1+
thumbzoomNational Supply Network59029108449.52449.521In StockSchneider Electric449.52 @ Qty: 1+
us.rs-online.com70008522516.54516.54112Schneider Electric516.54 @ Qty: 1+
thumbzoomcrescentelectric.com85772543.14543.1414Schneider Electric543.14 @ Qty: 1+
B01KFUS33U
Schneider LC2D12G7

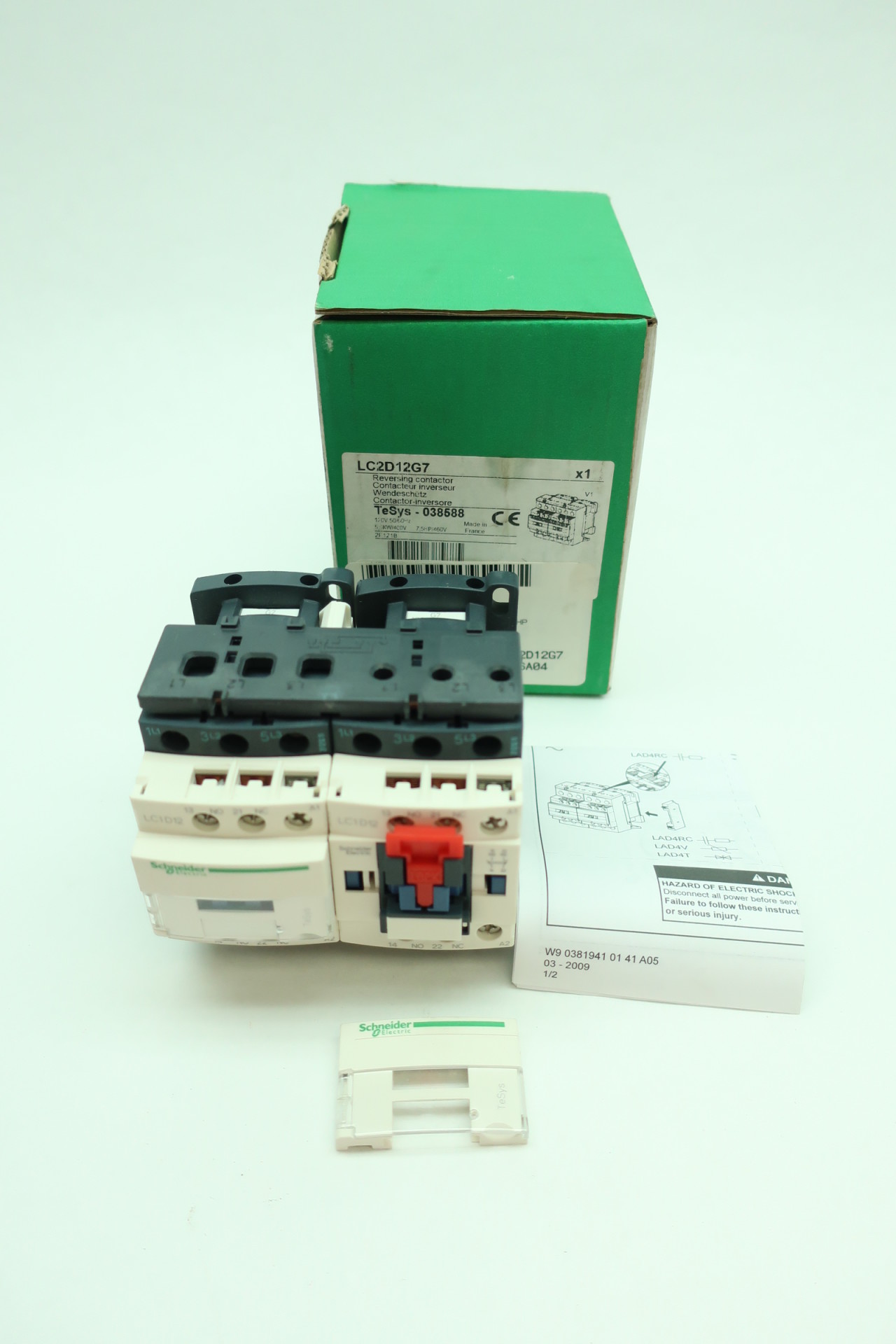

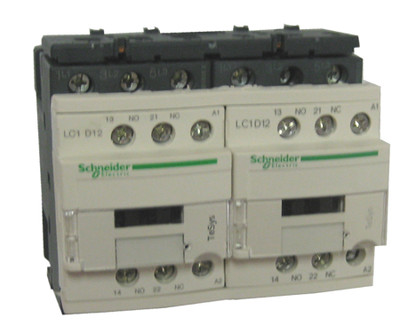

NEW TeSys D AC Contactor LC2D12G7 LC2-D12G7 3P 12A 120VAC Coil
