Schneider Electric LC2D18BD

B0028YG320

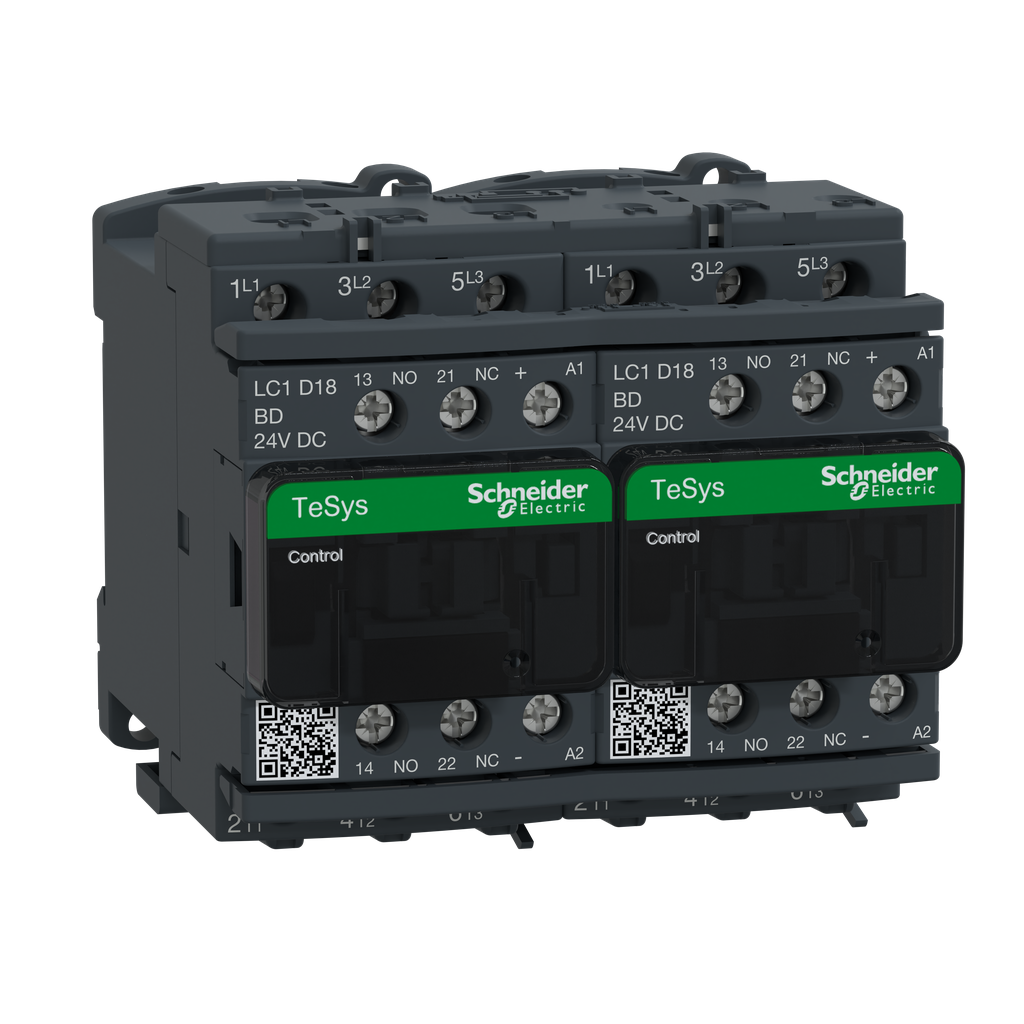

Schneider Electric Telemecanique LC2D18BD - 24VDC IEC Magnetic Contactor; No. of Poles 3, Reversing: Yes, 18 Full Load Amps-Inductive

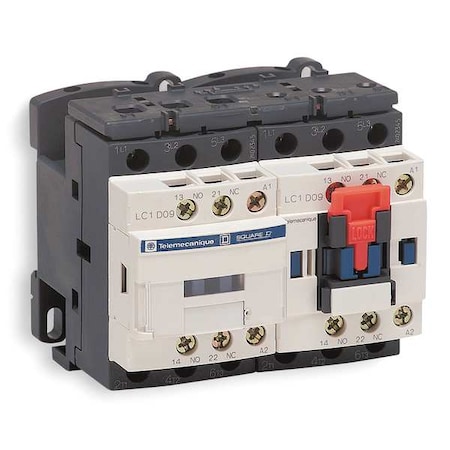

Schneider Electric Telemecanique LC2D18BD - 24VDC IEC Magnetic Contactor; No. of Poles 3, Reversing: Yes, 18 Full Load Amps-Inductivezoom

Attributes

Key Value
3-Phase HP Rating (Max.)15 hp
[Icw] Rated Short-Time .40 A 40 ?C - 10 min pow.
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Uc] Control Circuit Vo.24 V DC
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
ActionReversing
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
Amperage Rating32A
ApplicationMotor control;resistive.
Aux. Contact Configurat.1NO/1NC
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 32 A 50 .
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC2D18BD
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1102030EN
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating5.4-5.4 W 20 A Degrees C
Coil Technologybuilt-in bidirectional .
Coil Voltage24 V DC, 24 Vdc
Coil Volts24 V DC
ConnectionCONTROL CIRCUIT SCREW C.
Connections - Terminalscontrol circuit screw c.
Contact Configuration1 NO + 1 NC
Contact Current Rating18 A
Contact Operation3NO
Contact Rating10 A 60 A Degrees C SIG.
Contactor Applicationmotor control || resist.
Contactor TypeReversing
Control Circuit TypeDC standard
Control Circuit Voltage.0.1...0.25 Uc -40-70 ?C.
Control Voltage24 V
Country of OriginFR - France, France
Depth95 mm, 3.54 in
Device Presentationpreassembled with rever.
Device Short NameLC2D
ECCNEAR99
Enclosure NEMA RatingNo Enclosure
Environmental DisclosureENVPEP110230EN
Eu Rohs DirectiveCompliant
Family NameTeSys Family
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Full Load Amps-Inductive18 A
Full Load Amps-Resistive32 A
GTIN03389110392425, 0078590.
Height77 mm, 3.54 in
Hold-In Power Consumpti.5.4-5.4 W 20 ?C
HP @ 1 Phase - 120V1 hp
HP @ 1 Phase - 230V3
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 208V5 hp
HP @ 3 Phase - 240V5 hp
HP @ 3 Phase - 480V10 hp
HP @ 3 Phase - 575V15 hp
Inrush Power In W5.4-5.4 W 20 ?C)
Insulation Resistance> 10 MOhm signalling ci.
Interlocking Typemechanical
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.140 A AC signalling cir.
ItemIEC Magnetic Contactor
Item TypeReversing contactor;LC2D
Made in USANo
ManufacturerSchneider Electric
Max. Inductive Amps (AC.18A
Max. Resistive Amps (AC.32A
Maximum Horse Power Rat.1 hp 115 V at AC 60 Hz .
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw4 kW 220...230 V AC 50-.
MountingRail Plate
Mounting Supportrail || plate
Mounting TypeDIN Rail Mount ; Panel .
NEMA SizeNot Applicable
Net Weight1.037 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 HZ,3600 CYC/H .
Operating Temperature-20-60 A Degrees C,-40-.
Operating Time53.55...72.45 ms closin.
Overall Depth3.74 in
Overall Height3.03 in
Overall Width3.54 in
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles Description3P
Pollution Degree3
Power Dissipation Per P.0.8 W AC-3 || 2.5 W AC-.
Product CertificationsDNV || CSA || CCC || UL.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.reversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity300 A 440 V power circu.
Rating32A
Reach RegulationReference contains Subs.
ReversingYes
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys D, TeSys Deca Ser.
Signalling Circuit Freq.25...400 Hz
Single-Phase HP Rating .3 hp
Size77 MM,90 MM,95 MM
Special Features1 HP 115 V AC 60 HZ 1 P.
StandardDNV;CSA;CCC;UL;GL;LROS .
StandardsCSA C22.2 No 14 || EN 6.
Sub BrandTeSys D
Sustainable Offer StatusGreen Premium product
Tightening Torquepower circuit 1.7 N.m s.
Time Constant28 ms
TypeIEC Contactor
UNSPSC39121529
UPC785901617969
UPC Code785901617969
Utilisation CategoryAC-1 || AC-3 || AC-3e
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage0.8 W AC-3-2.5 W AC-1
Width90 mm, 3.54 in
Working HeightUp to 9842.52 ft
