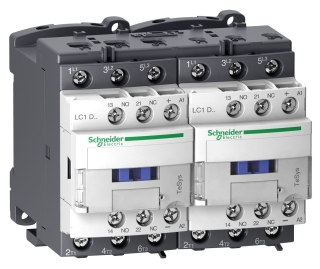

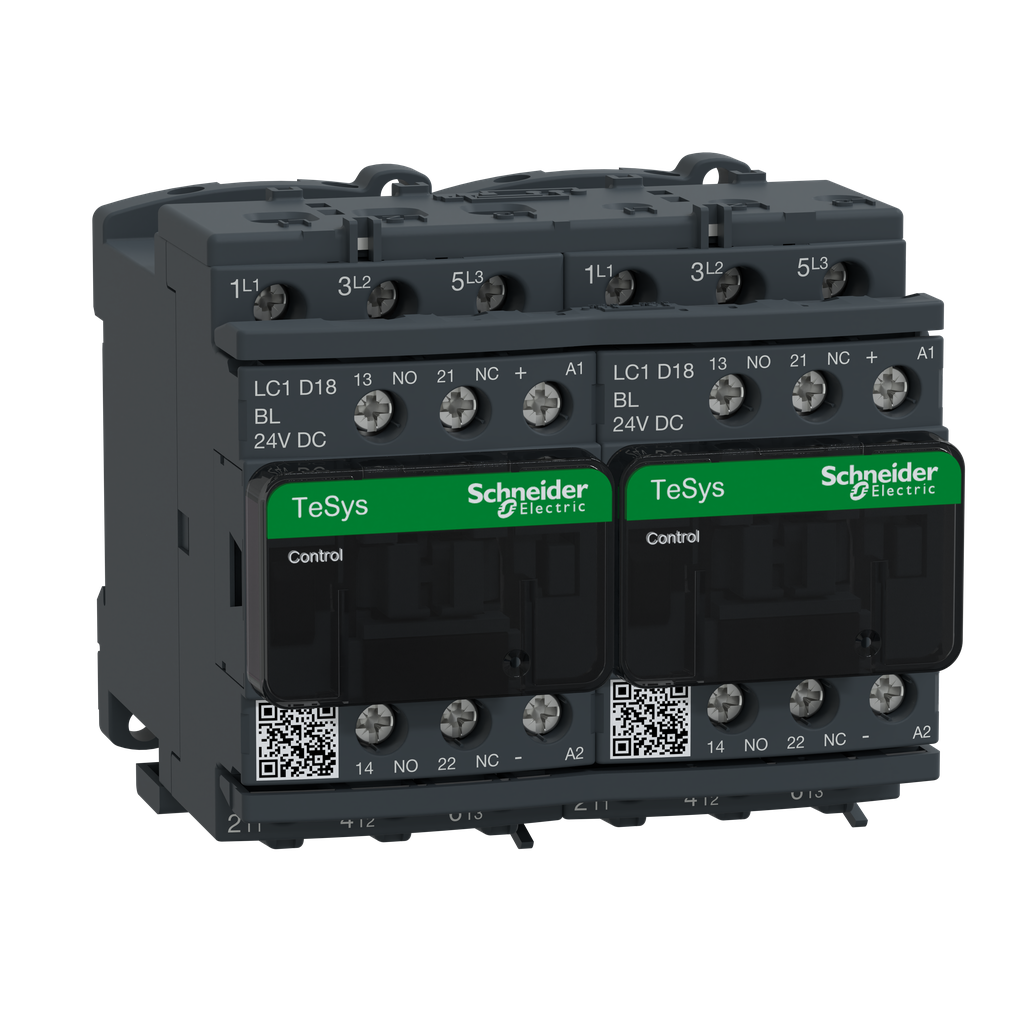

Schneider Electric LC2D18BL

B00CONM91Y

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 18-Amp Iec LC2D18BL Speeddrive 200-240Vac 2Hp,Atv212

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 18-Amp Iec LC2D18BL Speeddrive 200-240Vac 2Hp,Atv212zoom

Attributes

Key Value
[Icw] Rated Short-Time .40 A 40 ?C - 10 min pow.
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Uc] Control Circuit Vo.24 V DC
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
ApplicationResistive load;motor co.
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 32 A 50 .
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC2D18BL
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1501004
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating15 hp at 575 to 600 VAC.
Coil Technologybuilt-in bidirectional .
Coil Voltage24 V DC, 24, 24 VDC
ConnectionCONTROL CIRCUIT SCREW C.
Connections - Terminalscontrol circuit screw c.
Contact Configuration3NO, 1 NO + 1 NC
Contact Rating10 A 60 A Degrees C SIG.
Contactor Applicationresistive load || motor.
Control Circuit TypeDC low consumption
Control Circuit Voltage.0.1...0.3 Uc -40-70 ?C .
Country of OriginFrance
Depth95 mm
Device Presentationpreassembled with rever.
Device Short NameLC2D
Dimensions77 mm H x 90 mm W x 95 .
Enclosure TypeOpen
Environmental DisclosureENVPEP1501004
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Frequency Rating25 to 400, 25 to 400 Hz
Height77 mm
Hold-In Power Consumpti.2.4-2.4 W 20 ?C
Inrush Power In W2.4-2.4 W 20 ?C)
Insulation Resistance> 10 MOhm signalling ci.
Interlocking Typemechanical
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.140 A AC signalling cir.
Item TypeReversing contactor;LC2D
Made in USANo
ManufacturerSchneider Electric
Maximum Horse Power Rat.1 hp 115 V at AC 60 Hz .
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw4 kW 220...230 V AC 50 .
MountingRail Plate
Mounting Supportplate || rail
Mounting typePlate/Rail
Net Weight1.037 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Auxiliary Con.1NO-1NC
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 HZ,3600 CYC/H .
Operating Temperature-20 to 60, -20 to 60 de.
Operating Time65.45...88.55 ms closin.
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles Description3P
Pollution Degree3
Power Dissipation Per P.0.8 W AC-3 || 2.5 W AC-1
Product CertificationsDNV || CSA || CCC || UL.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.reversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity300 A 440 V power circu.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys? D LC2D
Signalling Circuit Freq.25...400 Hz
Size77 MM,90 MM,95 MM
Special Features1 HP 115 V AC 60 HZ 1 P.
StandardDNV;CSA;CCC;UL;GL;LROS .
StandardsCSA C22.2 No 14 || EN 6.
Sub BrandTESYS D
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew Clamp, Screw/Clamp
Tightening Torquepower circuit 1.7 N.m s.
Time Constant40 ms
Toxic Heavy Metal FreeYes
TypeReversing
UPC785901528159
Utilisation CategoryAC-1 || AC-3
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage0.8 W AC-3-2.5 W AC-1
Width90 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomkempstoncontrols.co.ukLC2D18BL318.83582251In StockSchneider318.8358225 @ 1
us.rs-online.com72552334409.491In StockSchneider Electric409.49 @ 1
thumbzoomgordonelectricsupply.comLC2D18BL438.01In Stock10SQUARE D438.0 @ 1
thumbzoomstandardelectricsupply.com2215916510.721In StockSquare D (Schneider Electric)510.72 @ 1
Newark64M2705512.481In StockSCHNEIDER ELECTRIC512.48 @ 1
thumbzoommayerelectric.comSQDLC2D18BL571.811In StockSCHNEIDER ELECTRIC2.2814571.81 @ 1
thumbzoomcrescentelectric.com197016760.561In StockSchneider Electric760.56 @ 1
