Schneider Electric LC2D25B7

B00CONIVAW

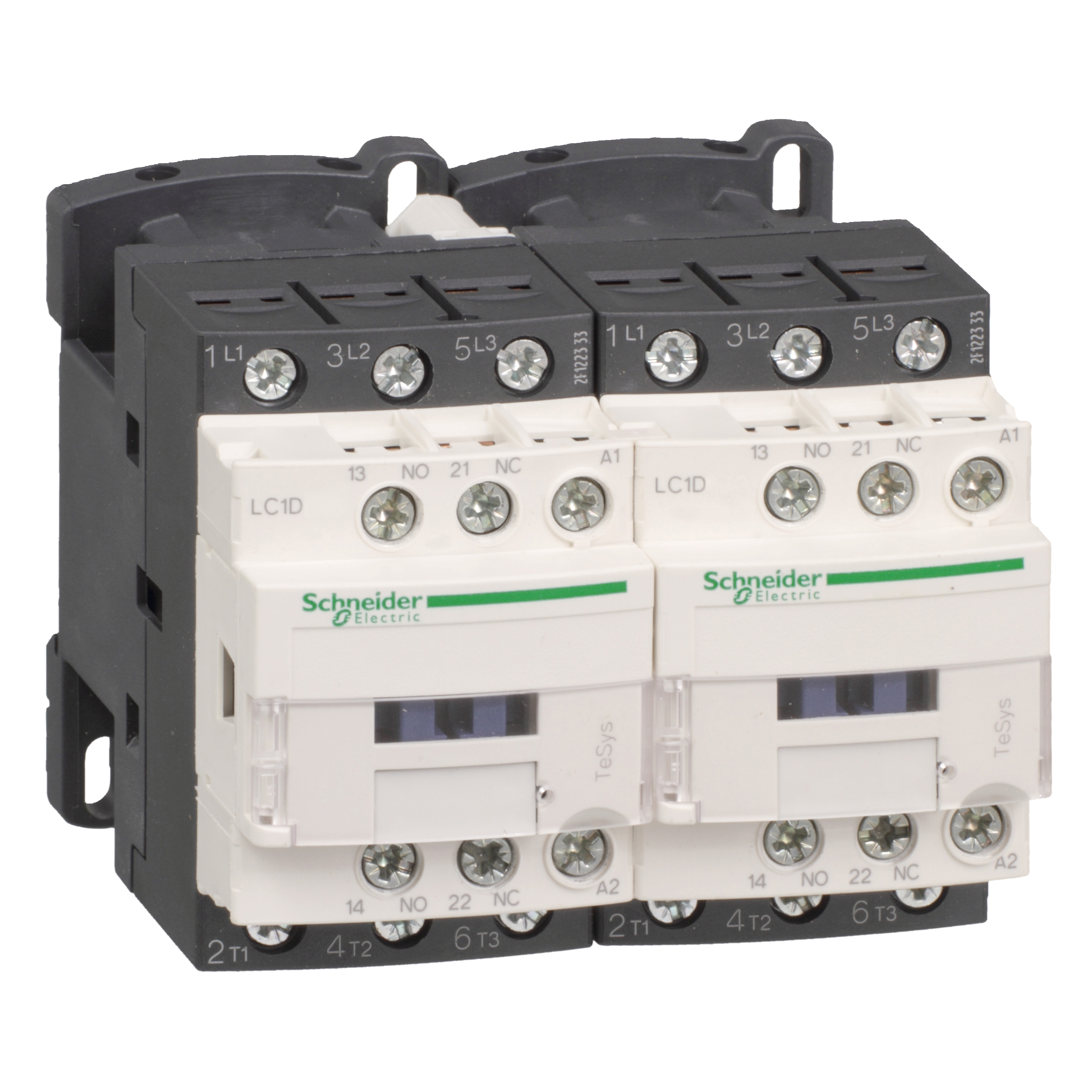

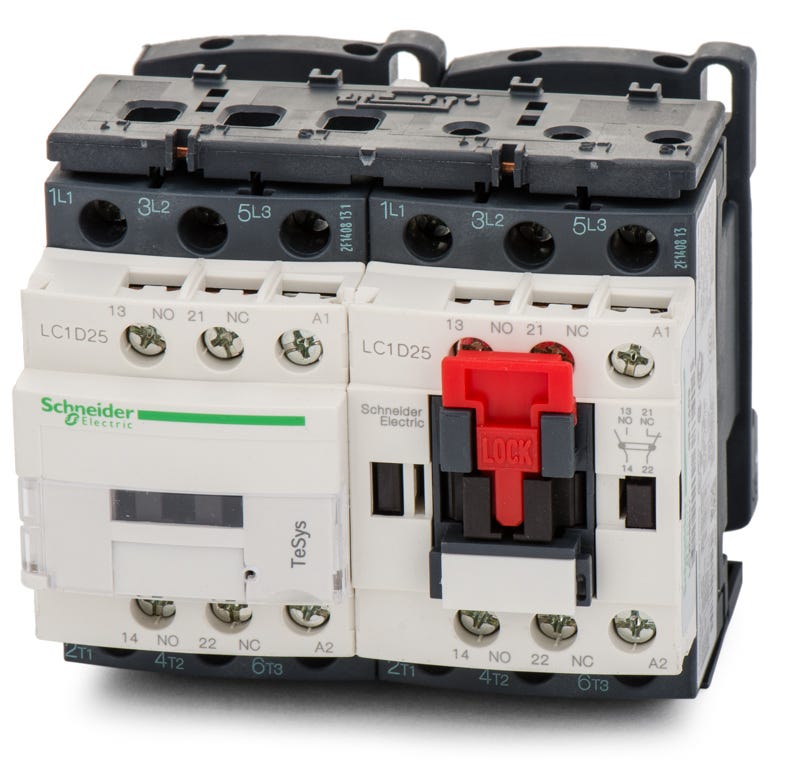

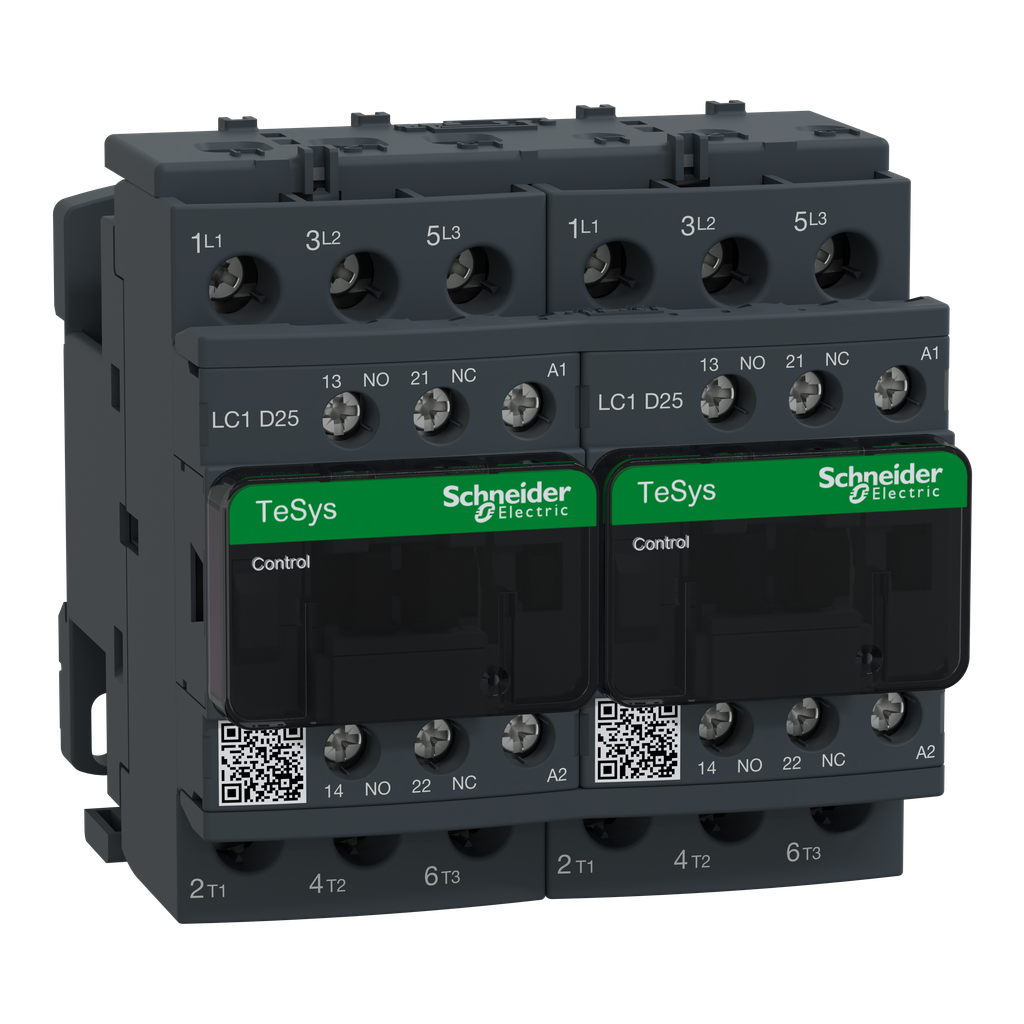

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 25-Amp Iec LC2D25B7 Speeddrive 380-480Vac 30Hp,Atv212 Type12

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 25-Amp Iec LC2D25B7 Speeddrive 380-480Vac 30Hp,Atv212 Type12zoom

Attributes

Key Value
3-Phase HP Rating (Max.)20 hp
[Icw] Rated Short-Time .50 A 40 ?C - 10 min pow.
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Uc] Control Circuit Vo.24 V AC 50/60 Hz
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
ActionReversing
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
Amperage25A
ApplicationMotor control;resistive.
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2 mOhm - Ith 40 A 50 Hz.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC2D25B7
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1102029EN
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating70 VA Inrush, 7/7.5 VA .
Coil Technologywithout built-in suppre.
Coil Voltage24, 24 Vac, 24 V AC 50/.
Coil Volts24 V AC
ConnectionCONTROL CIRCUIT SCREW C.
Connection typeScrew Clamp
Connections - Terminalscontrol circuit screw c.
Contact Configuration3NO, 1 NO + 1 NC
Contact Current Rating25 A
Contact Operation3NO
Contact Rating25 A at 575 VAC, 10 A 6.
Contact typeReversing
Contactor Applicationmotor control || resist.
Contactor TypeIEC, Reversing
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.3...0.6 Uc -40-70 ?C .
Control Voltage24 V
Country of OriginID - Indonesia, Indones.
Country of Origin (subj.Multiple
Depth92 mm
Device Presentationpreassembled with rever.
Device Short NameLC2D
Dimensions90 mm W x 86 mm D x 82-.
ECCNEAR99
Enclosure TypeIP2X
Environmental DisclosureENVPEP110229EN
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Frequency Rating50/60
Full Load Amps-Inductive25 A
Gtin785901207498
Heat Dissipation2-3 W 50/60 Hz
Height85 mm
Hold-In Power Consumpti.7.5-7.5 VA 60 Hz 0.3 20.
Inrush Power In Va70-70 VA 60 Hz 0.75 20 .
Insulation Resistance> 10 MOhm signalling ci.
Interlocking Typemechanical
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.140 A AC signalling cir.
ItemIEC Magnetic Contactor
Item TypeReversing contactor;LC2D
Made in USANo
ManufacturerSchneider Electric
Max. Inductive Amps (AC.25A
Max. Resistive Amps (AC.40A
Maximum Horse Power Rat.3 hp 230/240 V at AC 60.
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw5.5 kW 220...230 V AC 5.
MountingRail Plate
Mounting Supportrail || plate
Mounting typeSurface
Mounting TypeDIN Rail Mount ; Panel .
MpnLC2D25B7
Net Weight0.787 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Auxiliary Con.1NO-1NC
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 HZ,3600 CYC/H .
Operating Temperature-5 to 60, -20-60 A Degr.
Operating Time12...22 ms closing || 4.
Overvoltage CategoryIII
Phase3
Pole Contact Composition3 NO
Poles3
Poles Description3P
Pollution Degree3
Power Dissipation Per P.1.25 W AC-3 || 3.2 W AC.
Power factor0.75 Inrush, 0.3 Hold-In
Product CertificationsDNV || CSA || CCC || UL.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.reversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity450 A 440 V power circu.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys D, LC2D, TeSys De.
Signalling Circuit Freq.25...400 Hz
Single-Phase HP Rating .3 hp
Size85 MM,90 MM,92 MM
Special Features3 HP 230/240 V AC 60 HZ.
StandardDNV;CSA;CCC;UL;GL;LROS .
StandardsCSA C22.2 No 14 || EN 6.
Sub BrandTeSys D
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew Clamp
Tightening Torquecontrol circuit 1.7 N.m.
Toxic Heavy Metal FreeYes
TypeLC1D D-Line Standard
UNSPSC39121529
Upc78590120749
UPC785901207498
UPC Code785901207498
Utilisation CategoryAC-3 || AC-1
Voltage24V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage11, 1.25 W AC-3-3.2 W A.
WeeeThe product must be dis.
Width90 mm
