Schneider Electric LC2D25G7

B00CONIYL8

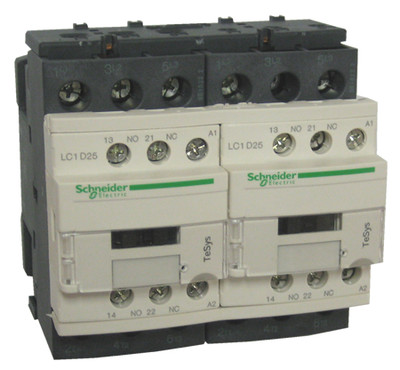

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 25-Amp Iec LC2D25G7 Speeddrive 380-480Vac100Hpatv212 Type12, Black

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 25-Amp Iec LC2D25G7 Speeddrive 380-480Vac100Hpatv212 Type12, Blackzoom

Attributes

Key Value
3-Phase HP Rating (Max.)20 hp
[Icw] Rated Short-Time .50 A 40 ?C - 10 min for.
[Ith] Conventional Free.10 A (at 60 ?C) for sig.
[Uc] Control Circuit Vo.120 V AC 50/60 Hz
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
ApplicationMotor control;resistive.
Aux. Contact Configurat.1NO/1NC
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2 mOhm - Ith 40 A 50 Hz.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC2D25G7
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI110229EN
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating7.5-7.5 VA 60 HZ 0.3 20.
Coil Technologywithout built-in suppre.
Coil Voltage120 V AC 50/60 Hz, 120 .
Coil Volts120 V AC
ConnectionCONTROL CIRCUIT SCREW C.
Connections - Terminalscontrol circuit screw c.
Contact Configuration1 NO + 1 NC
Contact Current Rating25 A
Contact Operation3NO
Contact Rating10 A 60 A Degrees C SIG.
Contactor Applicationmotor control || resist.
Contactor TypeReversing
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.3...0.6 Uc -40-70 ?C .
Control Voltage120 V
Country of OriginFR - France, France
Depth3.62 in, 92 mm, 0.079 in
Device Presentationpreassembled with rever.
Device Short NameLC2D
Dimensions85 x 90 x 92 mm
ECCNEAR99
Environmental DisclosureENVPEP110229EN
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Frame / Series / Class .TeSys
Full Load Amps-Inductive25 A
Full Load Amps-Resistive40 A
Heat Dissipation2-3 W 50/60 Hz
Height85 mm, 3.35 in
Hold-In Power Consumpti.7.5-7.5 VA 60 Hz cos ph.
Horsepower Rating15 HP
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 208V5 hp
HP @ 3 Phase - 240V7 1/2 hp
HP @ 3 Phase - 480V15 HP
HP @ 3 Phase - 575V20 hp
Hz50/60
Inrush Power In Va70-70 VA 60 Hz cos phi .
Insulation Resistance> 10 MOhm for signallin.
Interlocking Typemechanical
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.140 A AC for signalling.
ItemIEC Magnetic Contactor
Item TypeReversing contactor;LC2D
Length3.346 in
Made in USANo
ManufacturerSchneider Electric
Max. Inductive Amps (AC.25A
Max. Resistive Amps (AC.40A
Maximum Horse Power Rat.3 hp at 230/240 V AC 60.
Maximum Operating Rate3600 cyc/h 60 ?C
Maximum Operating Tempe.60 C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Operating Tempe.-5 C
Minimum Switching Curre.5 mA for signalling cir.
Minimum Switching Volta.17 V for signalling cir.
Motor Power Kw5.5 kW at 220...230 V A.
MountingRail Plate
Mounting Supportrail || plate
Mounting TypeDIN Rail Mount ; Panel .
Net Weight0.787 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 HZ,3600 CYC/H .
Operating Temperature-20-60 A Degrees C,-40-.
Operating Time12...22 ms closing || 4.
Overvoltage CategoryIII
Package Quantity1
Pole Contact Composition3 NO
Poles Description3P
Pollution Degree3
Power Dissipation Per P.1.25 W AC-3 || 3.2 W AC.
Power Rating15 kW
Primary TypeIEC Contactor
Product CertificationsDNV || CSA || CCC || UL.
Product NameTeSys Deca
Product Or Component Ty.reversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity450 A at 440 V for powe.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
ReversingYes
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys D, TeSys Deca Ser.
Signalling Circuit Freq.25...400 Hz
Single-Phase HP Rating .3 hp
Size85 MM,90 MM,92 MM
Special Features3 HP 230/240 V AC 60 HZ.
StandardDNV;CSA;CCC;UL;GL;LROS .
StandardsCSA C22.2 No. 14 ; EN 6.
Sub BrandTeSys D
Sustainable Offer StatusGreen Premium product
Temperature Operating R.-5 to 60 C
Terminal TypeScrew Terminal
TerminationScrew Clamp
Tightening Torquecontrol circuit 1.7 N.m.
Toxic Heavy Metal FreeYes
TypeIEC Contactor
UNSPSC39121529
UPC785901207528
UPC Code785901207528
Utilisation CategoryAC-1 || AC-3 || AC-3e
Voltage Rating575 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage1.25 W AC-3-3.2 W AC-1
WeeeThe product must be dis.
Width0 in, 90 mm, 3.54 in
