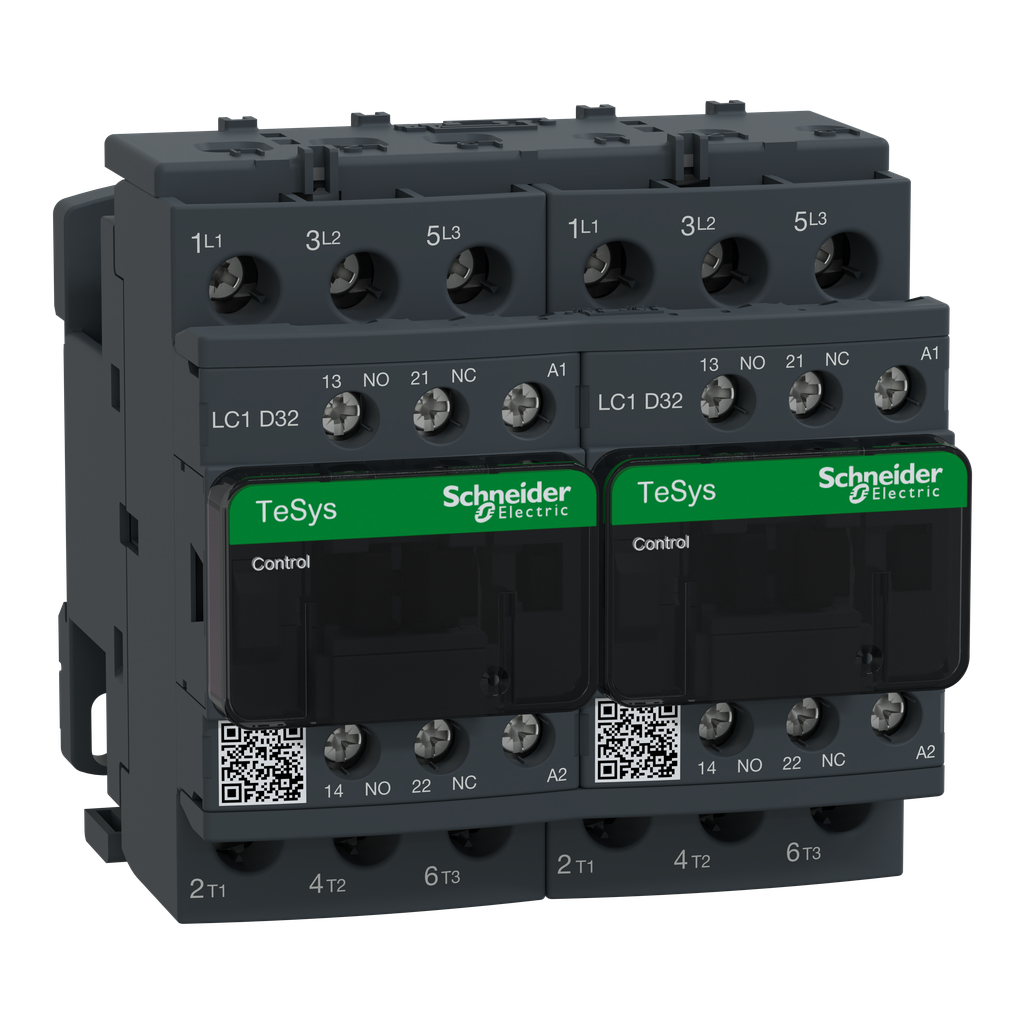

Schneider LC2D32M7

Schneider LC2D32M7

mpn:
LC2D32M7
brand:
Schneider Electric
manufacturer:
Schneider Electric
MPN:
LC2D32M7
Description:
Reversing Contactor LC2, 575VAC 32A IEC, TeSys Deca Series
Weight:
0.1095875
Weight:
0.1095875 LB
Preferred Price:
431.34
Price:
431.34
Min Simple Price:
243.7
Absolute Min Price:
346.05
Min Price:
346.05
Dimensions:
[4.0, 4.0, 4.0]
qty:
21
simpleSku:
OTkxNQ:::LC2D32M7
sku:
OTkxNQ::MY:LC2D32M7@y0
condition:
11
seller:
kentstore.com
amzMan:
schneider
HazMat:
False
DropShip:
False

Attributes

Key ^Value
3-Phase HP Rating (Max.)25 hp
[Icw] Rated Short-Time Withstand Current60 A 40 ?C - 10 min power circuit || 138 A 40 ?C - 1 min power circuit || 260 A 40 ?C - 10 s power circuit || 430 A 40 ?C - 1 s power circuit || 100 A - 1 s signalling circuit || 120 A - 500 ms signalling circuit || 140 A - 100 ms signalling circuit
[Ith] Conventional Free Air Thermal Current10 A 60 ?C signalling circuit || 50 A 60 ?C power circuit
[Uc] Control Circuit Voltage, Coil Voltage220 V AC 50/60 Hz
[Ui] Rated Insulation Voltagepower circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Ambient Air Temperature For Operation-40-60 ?C || 60-70 ?C with derating
Ambient Air Temperature For Storage-60-80 ?C
ApplicationResistive load;motor control
Auxiliary Contact Composition, Contact Configuration1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Average Impedance2 mOhm - Ith 50 A 50 Hz power circuit
Brand, ManufacturerSchneider Electric
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Catalog NumberLC2D32M7
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Circularity ProfileENVEOLI1102029EN
Climatic WithstandIACS E10 || IEC 60947-1 Annex Q category D
Coil Technologywithout built-in suppressor module
Coil Voltage220 Vac
Connections - Terminalscontrol circuit screw clamp terminals 1 1-4 mm?flexible without cable end || control circuit screw clamp terminals 2 1-4 mm?flexible without cable end || control circuit screw clamp terminals 1 1-4 mm?flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm?flexible with cable end || control circuit screw clamp terminals 1 1-4 mm?solid || control circuit screw clamp terminals 2 1-4 mm?solid || power circuit screw clamp terminals 1 2.5-10 mm?flexible without cable end || power circuit screw clamp terminals 2 2.5-10 mm?flexible without cable end || power circuit screw clamp terminals 1 1-10 mm?flexible with cable end || power circuit screw clamp terminals 2 1.5-6 mm?flexible with cable end || power circuit screw clamp terminals 1 1.5-10 mm?solid || power circuit screw clamp terminals 2 2.5-10 mm?solid
Contact Operation3NO
Contactor Applicationresistive load || motor control
Contactor TypeReversing
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage Limits0.3...0.6 Uc -40-70 ?C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 ?C operational AC 50 Hz || 0.85...1.1 Uc -40-60 ?C operational AC 60 Hz || 1...1.1 Uc 60-70 ?C operational AC 50/60 Hz
Country of OriginFrance, 00 - Unknown
Depth92 mm
Device Presentationpreassembled with reversing power busbar
Device Short NameLC2D
ECCNEAR99
Environmental DisclosureENVPEP110229EN
Eu Rohs DirectiveCompliant
Family NameTeSys Family
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Heat Dissipation2-3 W 50/60 Hz
Height85 mm
Hold-In Power Consumption In Va7.5-7.5 VA 60 Hz 0.3 20 ?C) || 7-7 VA 50 Hz 0.3 20 ?C)
Inrush Power In Va70-70 VA 60 Hz 0.75 20 ?C) || 70-70 VA 50 Hz 0.75 20 ?C)
Insulation Resistance> 10 MOhm signalling circuit
Interlocking Typemechanical
Ip Degree Of ProtectionIP20 front face IEC 60529
Irms Rated Making Capacity140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1 || 550 A 440 V power circuit IEC 60947
Item TypeReversing contactor;LC2D
Made in USANo
Max. Inductive Amps (AC3)32A
Max. Resistive Amps (AC1)50A
Maximum Horse Power Rating2 hp 115 V at AC 60 Hz for 1 phase || 5 hp 230/240 V at AC 60 Hz for 1 phase || 7.5 hp 200/208 V at AC 60 Hz for 3 phase || 10 hp 230/240 V at AC 60 Hz for 3 phase || 20 hp 460/480 V at AC 60 Hz for 3 phase || 30 hp 575/600 V at AC 60 Hz for 3 phase
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms
Mercury Free, Pvc Free, Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal FreeYes
Minimum Switching Current5 mA signalling circuit
Minimum Switching Voltage17 V signalling circuit
Motor Power Kw7.5 kW 220...230 V AC 50 Hz || 15 kW 380...400 V AC 50 Hz || 15 kW 415...440 V AC 50 Hz || 18.5 kW 500 V AC 50 Hz || 18.5 kW 660...690 V AC 50 Hz
Mounting Supportplate || rail
Mounting TypeDIN Rail Mount ; Panel Mount
Net Weight0.797 kg
Non-Overlap Time1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Operating Altitude0...9842.52 ft (0...3000 m)
Operating Time12...22 ms closing || 4...19 ms opening
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles Description3P
Pollution Degree3
Power Dissipation Per Pole2 W AC-3 || 5 W AC-1
Product CertificationsUL || CSA || RINA || GOST || CCC || DNV || LROS (Lloyds register of shipping) || GL || BV || UKCA
Product NameTeSys D || TeSys Deca
Product Or Component Typereversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
RangeTeSys || TeSys Deca
Rated Breaking Capacity550 A 440 V power circuit IEC 60947
Reach RegulationFree of Substances of Very High Concern above the threshold
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
SeriesTeSys D, TeSys Deca Series
Signalling Circuit Frequency25...400 Hz
Single-Phase HP Rating (Max.)5 hp
StandardUL;CSA;RINA;GOST;CCC;DNV;LROS (Lloyds register of shipping);GL;BV;UKCA
StandardsCSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
Sustainable Offer StatusGreen Premium product
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals flat ? 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 2.5 N.m screw clamp terminals flat ? 6 mm || power circuit 2.5 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 2.5 N.m screw clamp terminals pozidriv No 2
TypeIEC Contactor
UNSPSC39121529
UPC Code3389110391558
Utilisation CategoryAC-3 || AC-1
Warranty18 months
Warranty DescriptionContractual Warranty:18 months
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width90 mm

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomkentstore.comLC2D32M7243.7243.714Square D/Telemecanique243.7 @ Qty: 1+
gordonelectricsupply.comLC2D32M7453.0453.01In Stock10SQUARE D453.0 @ Qty: 1+
us.rs-online.com70875415572.28572.281In StockSchneider Electric572.28 @ Qty: 1+
Graybar26334296589.4784589.47841In StockSquare D (Schneider Electric)589.4784 @ Qty: 1+
thumbzoommayerelectric.comSQDLC2D32M7590.1590.11In StockSQUARE D1.7534590.1 @ Qty: 1+
thumbzoomcrescentelectric.com1289444784.89784.891In StockSchneider Electric784.89 @ Qty: 1+
B01KHZ8SMY
Schneider LC2D32M7

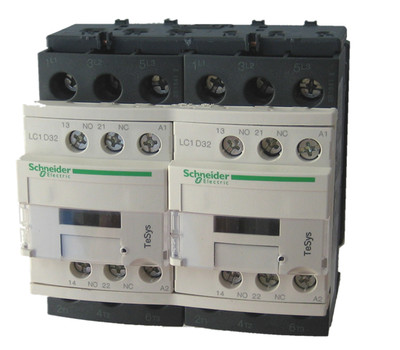

NEW Schneider AC Contactor LC2D32M7 LC2-D32M7 3P 32A 220VAC Coil
