Square D/Telemecanique LP1K09008BD

B00CONIYMW

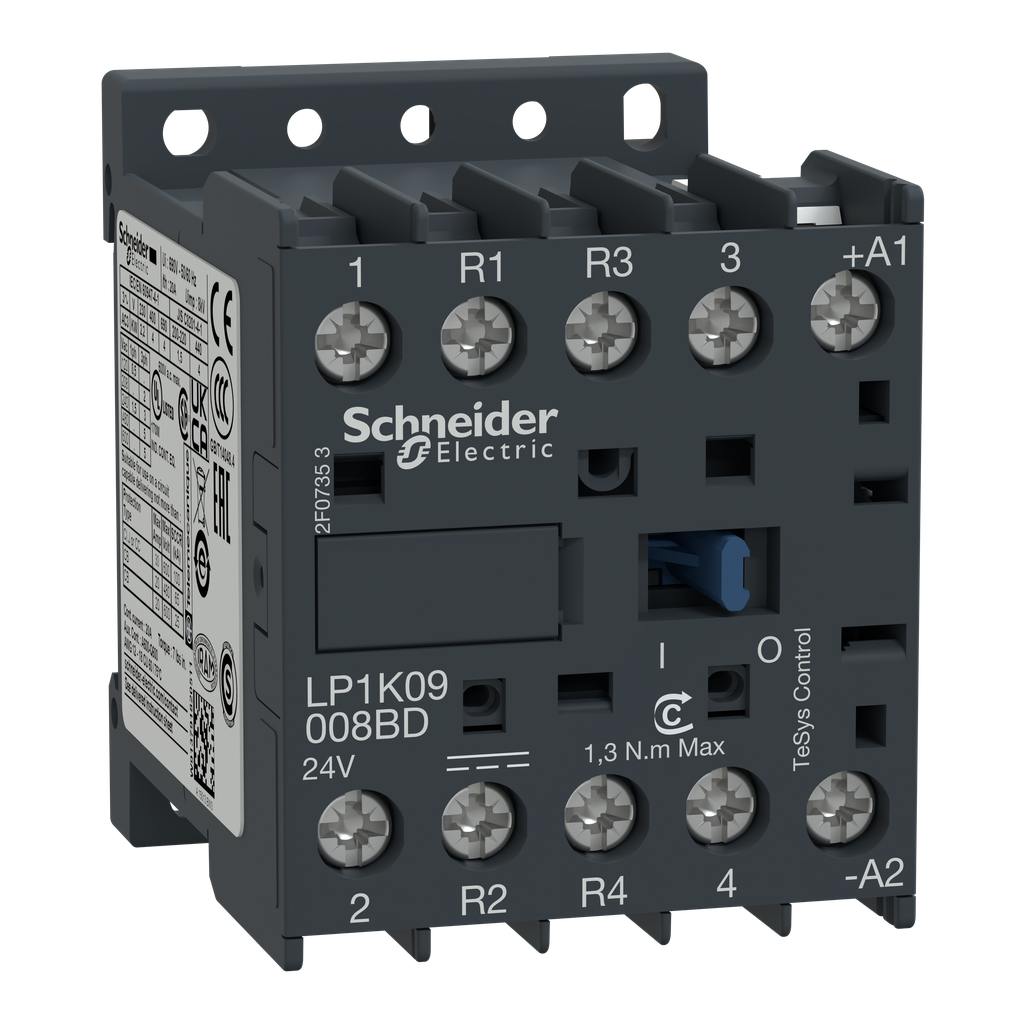

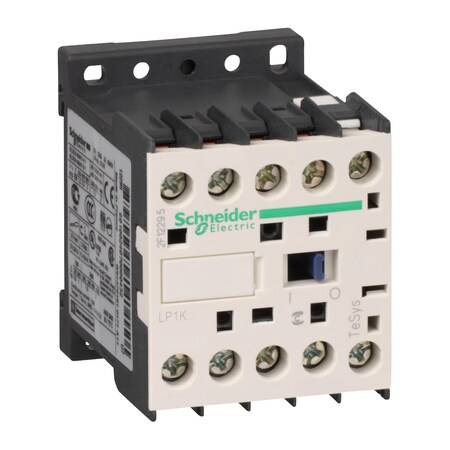

Square D Lp1K09008Bd Contactor 600Vac

Square D Lp1K09008Bd Contactor 600Vaczoom

Attributes

Key Value
3-Phase HP Rating (Max.)5 hp
[Icw] Rated Short-Time .90 A 50 ?C - 1 s power .
[Ith] Conventional Free.20 A 60 ?C power circui.
[Uc] Control Circuit Vo.24 V DC
[Ui] Rated Insulation V.power circuit 600 V UL .
[Uimp] Rated Impulse Wi.8 kV
Ambient Air Temperature.-25-50 ?C
Ambient Air Temperature.-50-80 ?C
ApplicationResistive Load
Aux. Contact Configurat.2NO/2NC
Average Impedance3 mOhm - Ith 20 A 50 Hz.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLP1K09008BD
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1503003EN
Coil Power Rating3-3 W 20 A Degrees C
Coil VoltagePOWER CIRCUIT 690 V AC .
Coil Volts24 V DC
ConnectionSCREW CLAMP TERMINALS 1.
Connections - Terminalsscrew clamp terminals 1.
Contact Configuration2 NO, 2 NC, 2 NO + 2 NC
Contact Current Rating20 A
Contact Form2NO ; 2NC
Contact Operation2NO/2NC
Contact Rating20 A 50 A Degrees C POW.
Contactor ApplicationResistive Load
Contactor TypeNon-Reversing
Control Circuit TypeDC standard
Control Circuit Voltage.Operational: 0.8 to 1.1.
Control Voltage24 V
Country of OriginFR - France, France
Depth57 mm
Device Short NameLP1K
ECCNEAR99
Environmental AttributesMercury Free, Toxic Hea.
Environmental DisclosureENVPEP1503003EN
Eu Rohs DirectiveCompliant
Family NameTeSys Family
Flame RetardanceV1 conforming to UL 94 .
Full Load Amps-Inductive9 A
Full Load Amps-Resistive20 A
Fuse Amps25 A
GTIN00785901832522, 0338911.
Heat Dissipation1.3-1.3 W
Height58 mm
Hold-In Power Consumpti.3-3 W 20 ?C
Impulse Withstand Volta.8 kV
Inrush Power In W3-3 W 20 ?C)
Ip Degree Of ProtectionIP2X
Irms Rated Making Capac.110 A AC power circuit .
ItemIEC Magnetic Contactor
Item Typecontactor
Made in USANo
ManufacturerSchneider Electric
Max. Inductive Amps (AC.9A
Max. Resistive Amps (AC.20A
Maximum Operating Rate3600 cyc/h
Mechanical Durability10 Mcycles
Mercury FreeYes
MountingRail Plate
Mounting StyleDIN Rail, Plate
Mounting Supportrail || plate
Mounting TypeDIN Rail Mount ; Panel .
Mounts OnPlate, Rail
Net Weight0.225 kg
Number of Poles4
Operating Altitude6561.68 ft (2000 m) wit.
Operating Cycles3600 cyc/h
Operating Temperature-25-50 A Degrees C
Operating Time30...40 ms coil energis.
Overvoltage CategoryIII, CAT III
Pole Contact Composition2 NO + 2 NC
Poles Description4P
Power Rating8 kW
Product CertificationsCB Scheme || CCC || UL .
Product Or Component Ty.contactor
RangeTeSys
Rated Breaking Capacity110 A 220...230 V IEC 6.
Rated Making Capacity110 A (AC Power Circuit)
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesLP1K, TeSys Micra Serie.
Single-Phase HP Rating .1-1/2 hp
Size45 MM,57 MM,58 MM
Special Features20 A AT
StandardCSA-UL,V1 UL 94-REQUIRE.
StandardsBS 5424 ; IEC 60947 ; N.
Sub BrandTeSys K
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew Clamp
Thermal Amperage20 A (at 50?C Power Cir.
Tightening Torque0.8 to 1.3 Nm, 0.8-1.3 .
Toxic Heavy Metal FreeYes
UNSPSC39121529
UPC785901832522
UPC Code785901832522
Utilisation CategoryAC-1
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm
Working Height6561.68 ft

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMELP1K09008BD40.42141SCHNEIDER ELECTRIC40.42 @ 1
RS Delivers609-785851.192161Schneider Electric51.192 @ 1
thumbzoomkempstoncontrols.co.ukLP1K09008BD51.3310591In StockSchneider51.331059 @ 1
standardelectricsupply.com222720698.141In StockSchneider Electric98.14 @ 1
thumbzoomZoroG0849530100.991In StockSchneider Electric0.5100.99 @ 1
thumbzoomgordonelectricsupply.comLP1K09008BD101.091In Stock10SQUARE D101.09 @ 1
Graybar96073672109.761In StockSquare D (Schneider Electric)109.76 @ 1
thumbzoommayerelectric.comSQDLP1K09008BD113.911In StockSQUARE D0.495113.91 @ 1
thumbzoomcrescentelectric.com154485133.31In StockSchneider Electric133.3 @ 1
us.rs-online.com70379455134.2111Schneider Electric134.21 @ 1
Newark16B616137.951In StockSCHNEIDER ELECTRIC137.95 @ 1
thumbzoomsustainablesupply.comC3039476139.01In StockSchneider Electric0.5139.0 @ 1
thumbzoomNational Supply Network69527778146.551In StockSchneider Electric146.55 @ 1
