- mpnRHN416KF
- brandname: SCHNEIDER ELECTRIC
- manufacturername: SCHNEIDER ELECTRIC

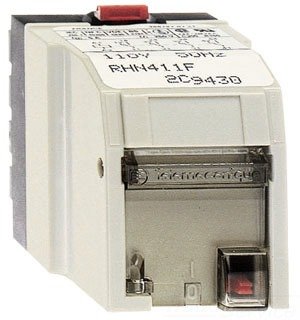

SCHNEIDER ELECTRIC RHN416KF Electormagnetic Relay
- Brand: Schneider Electric
- PartNumber: RHN416KF
- Model: RHN416KF
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: SCHNEIDER ELECTRIC
- Label: SCHNEIDER ELECTRIC
Attributes
| Key | Value |
|---|
| [Ithe] conventional enc. | 5 A at |
| [Ui] rated insulation v. | 250 V |
| Ambient air temperature. | 23...104 ?F (-5...40 ?C. |
| Ambient air temperature. | -40...158 ?F (-40...70 . |
| Average consumption in . | 2.5 (holding) at 68 ?F . |
| Average resistance | 30 mOhm at 68 ?F (20 ?C) |
| CAD overall depth | 2.13 in (54 mm) |
| CAD overall height | 1.69 in (43 mm) |
| CAD overall width | 1.3 in (33 mm) |
| Category | 18073 - SPARE PARTS DIS. |
| Coil interference suppr. | Without |
| Commercial Status | Commercialised |
| Contacts operation | Standard, Instantaneous |
| Contacts type and compo. | 4 C/O |
| Control circuit voltage | 120 V AC, 60 Hz |
| Control circuit voltage. | 0.8...1.1 Uc conforming. |
| Control type | Manual control |
| Cos phi | 0.6 (inrush), 0.7 (hold. |
| Country of origin | FR |
| Device short name | RHN |
| Dielectric strength | 2500 V |
| Discount Schedule | CP2 |
| Drop-out voltage thresh. | 0.15...0.5 Uc |
| GTIN | 00785901446002 |
| Mechanical durability | 20000000 cycles |
| Minimum switching capac. | 150 mVA/1 V, 150 mVA at. |
| Nbr. of units in pkg. | 1 |
| Operating position | Any position |
| Operating time | 2...15 ms between energ. |
| Product certifications | EDF, CSA, UR, BV, USSR,. |
| Product or component ty. | Plug-in relay |
| Product weight | 0.2 lb(US) (0.09 kg) |
| Protective treatment | TC |
| Range of product | Zelio Relay |
| Returnability | N |
| Shock resistance | 50 gn 11 ms conforming . |
| Standards | NF C 45-250, IEC 60255,. |
| Status LED | Without |
| Switching time | 0.5...6 ms de-energisat. |
| Terminals description I. | (A1-A2)CO, (41-42-44)OC. |
| Vibration resistance | 6 gn (f = 10...55 Hz) c. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Nex Instrument | RHN416KF | 79.0 | 1 | In Stock | | Schneider Electric | | 79.0 @ 1 |
 | gordonelectricsupply.com | RHN416KF | 127.59 | 1 | In Stock | 10 | SQUARE D | | 127.59 @ 1 |
 | mayerelectric.com | SQDRHN416KF | 147.4 | 1 | In Stock | | SQUARE D | 0.2 | 147.4 @ 1 |
