Schneider Electric RPM22F7

B013ETMUEC

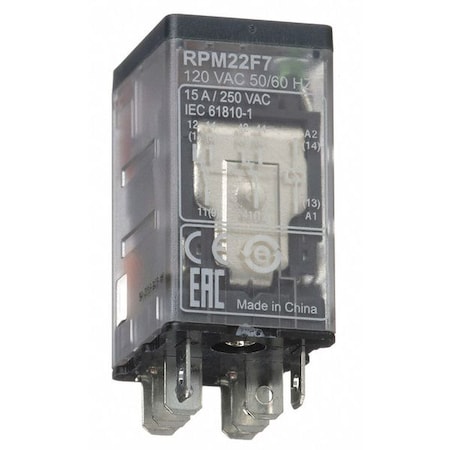

Industrial Relays PLUG-IN RELAY 250V 15A RPM

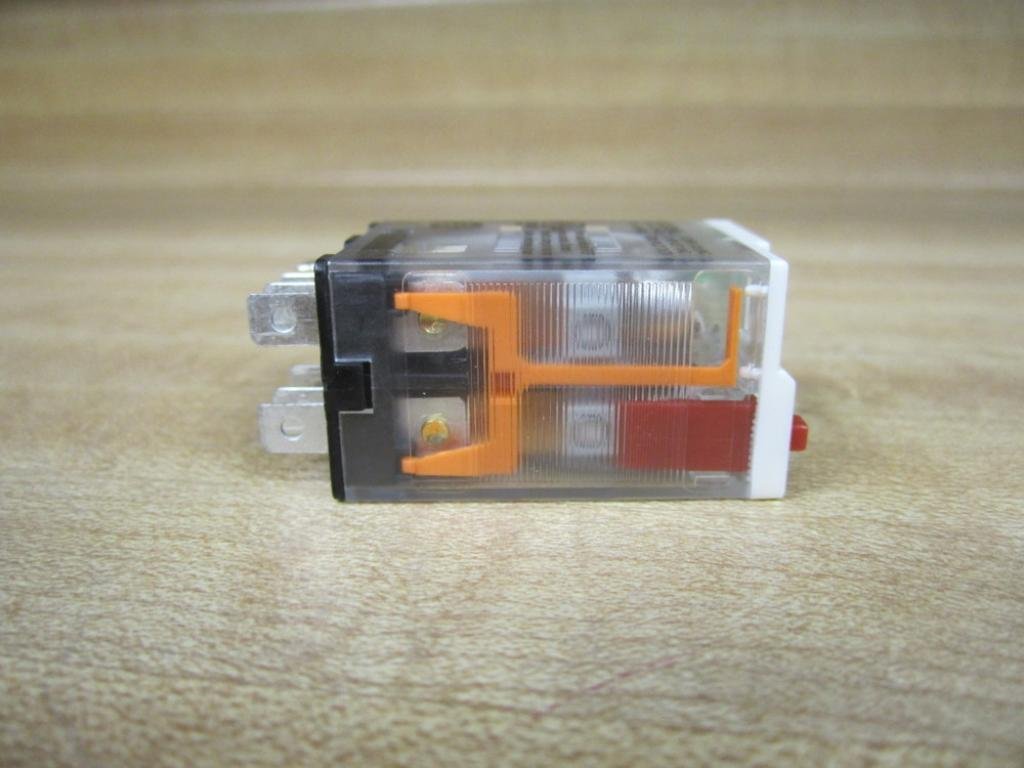

Industrial Relays PLUG-IN RELAY 250V 15A RPMzoom

Attributes

Key Value
AC Contact Rating - Rel.15 A @ 277V, 15A @ 277V
Alternate Part No.996-RPM22F7
Amperage Rating15 A 277 V AC) UL || 15.
ApprovalsCE, CSA, UL
Base Type - Plug In Rel.Square
Body Depth1.54 in
Body Depth - Relay1.06 in
Body Height1.06 in
Body Height - Relay1.82 in
Body Width0.83 in
Body Width - Relay0.83 in
BrandSchneider Electric
Catalog NumberRPM22F7
Coil Resistance4.43 kOhms
Coil TerminationQuick Connect Terminal
Coil TypeNon-Latching
Coil Voltage120 V AC 50/60 Hz, 120 .
Coil Volts120V AC
ConnectionFLAT/SPADE (FASTON TYPE)
Contact Configuration2 C/O
Contact Current Rating15 A
Contact FormDPDT, DPDT (2 Form C)
Contact Form - RelayDPDT
Contact MaterialSilver Nickel Alloy, Si.
Contact Operation2 C/O
Contact RatingB300
Contact Voltage Rating300
ContactsDPDT
Control Voltage120
Country of OriginCN - China, China
Cross Reference ProductsIDEC RH2B-ULCAC110-120V.
Current Rating15 A
Current Stock498
DC Contact Rating - Rel.15 A @ 28V, 15A @ 28V
DiodeNo
ECCNEAR99
EnclosureIP 40 CONFORMING TO IEC.
Family SeriesSquare D Relays
FeaturesPlug-In Protection Modu.
Flat Pin Width0.18 in
FunctionGeneral Purpose
Gross Weight0.08 lbs
GTIN03389119401920, 0078590.
HP @ 120VNot Rated
HP @ 240VNot Rated
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item NumberRPM22F7
Item TypePlug-in relay;Flat
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part No.RPM22F7
Manufacturer Part Number433723
MaterialAgNi
Max Current15 A
MountingDin Rail
Mounting - RelayPlug In, Plug-In
Mounting StyleSocket
Mounting TypeDIN Rail Mount ; Panel .
MpnRPM22F7
Net Weight0.08 lbs
Nominal Coil Voltage120 VAC
Number of Pins - Relay8
Operating Temperature-40-55 A Degrees C
Overall Depth1.82 in
Overall Height - Relay2.13 in
Pins8
Power Consumption - Rel.1.1 VA
Primary TypePower Relays
ProductPower Relays
Product CategoryIndustrial Relays
Published Coil Voltage120 VAC
Push To TestLockable
Push-to-TestYes
Relay TypeElectromechanical
Resistance4430 OHMS
RoHSYes
Safety GuidedNo
SeriesHarmony
SKUZO-G0311893
Socket Code - RelayD
Special FeaturesLED Indicator, Any posi.
Standard15 GNIN OPERATION-30 GN.
StandardsCSA C22.2 No 14, CSA Ce.
Status IndicatorLED and Mechanical Flag.
Sub BrandRPM
SubCategoryElectrical
Switching Voltage250 VAC/DC
TerminationQC Tabs, Plug-In
Termination StyleQuick Connect Terminal
TypePlug In
UNSPSC39122326
UPC785901635734
UPC Code785901635734
Warranty DescriptionContractual Warranty:18.
