mpn:
brand:
manufacturer:
MPN:
Description:

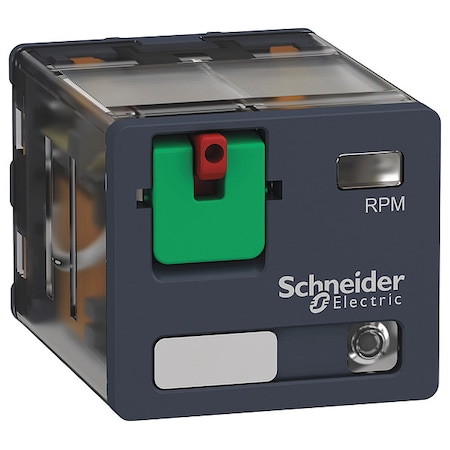

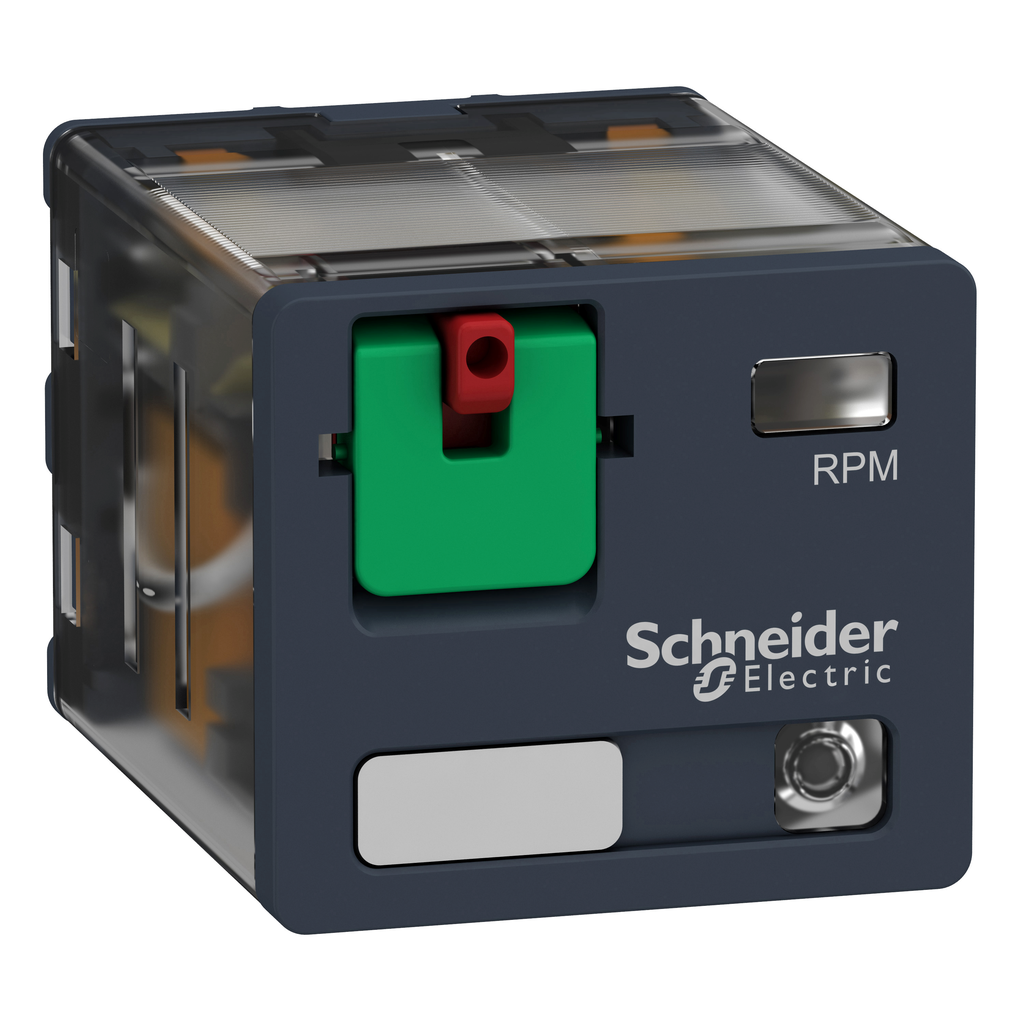

3PDT Panel Mount Non-Latching Relay Plug In, 15 A, 48VAC
Weight:
0.1276
Weight:
0.1276 LB
Preferred Price:
25.79
Price:
25.79
Min Simple Price:
13.8
Absolute Min Price:
19.85
Min Price:
19.85
Dimensions:
[2.0, 1.0, 1.0]
qty:
21
simpleSku:
DY0NDY:::RPM32E7
sku:
DY0NDY::J8:RPM32E7@y0
condition:
11
seller:
Zoro
amzMan:
schneider elec
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| [Ie] Rated Operational Current | 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC |
| [Ithe] Conventional Enclosed Thermal Current | 15 A -40-55 ?C |
| [Uc] Control Circuit Voltage | 48 V AC 50/60 Hz |
| [Ui] Rated Insulation Voltage | 250 V IEC || 300 V CSA || 300 V UL |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV 1.2/50 ?s |
| AC Contact Rating - Relay | 15A @ 250/277V, 8A @ 250V |
| Ambient Air Temperature For Operation | -40-55 ?C |
| Ambient Air Temperature For Storage | -40-85 ?C |
| Average Coil Consumption In Va | 1.7 60 Hz |
| Average Resistance | 460 Ohm at 20 ?C +/- 15 % |
| Base Type - Plug In Relay | Square |
| Body Depth - Relay | 1.54 in |
| Body Height - Relay | 1.06 in |
| Body Width - Relay | 1.22 in |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Coil Volts | 48V AC |
| Contact Form - Relay | 3PDT |
| Contact Material | Silver Nickel |
| Contacts Material | AgNi |
| Contacts Type And Composition | 3 C/O |
| Control Type | lockable test button |
| Country of Origin (subject to change) | China |
| Device Presentation | complete product |
| Device Short Name | RPM |
| Dielectric Strength | 1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced || 2000 V AC between poles with basic |
| Drop-Out Voltage Threshold | >= 0.15 Uc AC |
| Electrical Durability | 100000 cycles resistive |
| Environmental Disclosure | ENVPEP1406038EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Features | EU RoHS Directive, Green Premium Product, Mercury Free, REACh free of SVHC, Toxic heavy Metal Free |
| Ip Degree Of Protection | IP40 conforming to EN/IEC 60529 |
| Item | Relay |
| Item - Relay | Plug In Relay |
| Load Current | 15 A 250 V AC || 15 A 28 V DC |
| Maximum Switching Capacity | 3750 VA || 420 W |
| Maximum Switching Voltage | 250 V IEC |
| Mechanical Durability | 10000000 cycles |
| Mercury Free | Yes |
| Minimum Switching Capacity | 170 mW 10 mA, 17 V |
| Mounting - Relay | Plug In |
| Net Weight | 0.054 kg |
| Number of Pins - Relay | 11 |
| Operating Position | any position |
| Operating Time | 20 ms at nominal voltage |
| Overall Height - Relay | 1.06 in |
| Pollution Degree | 3 |
| Power Consumption - Relay | 1.7 VA |
| Product Certifications | CSA || EAC || UL |
| Product Or Component Type | plug-in relay |
| Protection Category | RT I |
| Push To Test | Lockable |
| Range Of Product | Harmony Electromechanical Relays |
| Rated Operational Voltage Limits | 38.4...52.8 V AC |
| Reach Free Of Svhc | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reset Time | 20 ms at nominal voltage |
| Rohs Exemption Information | Yes |
| Safety Rating | IP40 EN/IEC 60529(Housing only), Protection Category RT I, Test Levels Level A |
| Safety Reliability Data | B10d = 100000 |
| Series Name | Power |
| Shape Of Pin | flat |
| Shock Resistance | 15 gnin operation || 30 gnnot operating |
| Standards | CSA C22.2 No 14, EN/IEC 61810-1, UL 508, CSA C22.2 No 14 || EN/IEC 61810-1 || UL 508 |
| Status Indicator | LED |
| Status Led | with |
| Sustainable Offer Status | Green Premium product |
| Test Levels | level A |
| Toxic Heavy Metal Free | Yes |
| Utilisation Coefficient | 20 % |
| Vibration Resistance | 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G2053408 | 13.8 | 13.8 | 1 | In Stock | 85 | Schneider Electric | 0.13 | 13.8 @ Qty: 1+ |
 | mayerelectric.com | SQDRPM32E7 | 13.96 | 13.96 | 1 | In Stock | SQUARE D | 0.1188 | 13.96 @ Qty: 1+ | |
 | Newark | 66AH6871 | 16.06 | 16.06 | 1 | In Stock | SCHNEIDER ELECTRIC | 16.06 @ Qty: 1+ | ||
 | Radwell | RPM32E7 | 18.0 | 82.8 | 10 | In Stock | SCHNEIDER ELECTRIC SQUARE D | 18.0 @ Qty: 10+ | ||
 | gordonelectricsupply.com | RPM32E7 | 128.9 | 128.9 | 1 | In Stock | 10 | SQUARE D | 128.9 @ Qty: 1+ |
