Schneider Electric RPM32F7

mpn:
RPM32F7
brand:
Schneider Electric
manufacturer:
Schneider Electric
MPN:
RPM32F7
Description:
3PDT Panel Mount Non-Latching Relay Plug In 15 A 120V ac
Weight:
0.0075
Weight:
0.1254 LB
Price:
13.07
qty:
21
simpleSku:
Mjc3MA:::RPM32F7
sku:
Mjc3MA::64:RPM32F7@y0
condition:
11
seller:
Galco
amzMan:
schneider electric
Dimensions:
[2.0, 2.0, 2.0]

Attributes

Key Value
[Ie] Rated Operational Current15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
[Ithe] Conventional Enclosed Thermal Current15 A -40-55 ?C
[Uc] Control Circuit Voltage120 V AC 50/60 Hz
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 ?s
AC Contact Rating - Relay15A @ 277V
Ambient Air Temperature For Operation-40-55 ?C
Ambient Air Temperature For Storage-40-85 ?C
Amperage Rating15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
ApprovalsCE, CSA, UL
Average Coil Consumption In Va1.7 60 Hz
Average Resistance2880 Ohm at 20 ?C +/- 15 %
Base Type - Plug In RelaySquare
Body Depth1.54 in
Body Depth - Relay1.06 in
Body Height1.06 in
Body Height - Relay1.82 in
Body Width1.22 in
Body Width - Relay1.22 in
BrandSchneider Electric
California Proposition 65 : WARNING: This product can expose you to chemicals includingNickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Catalog NumberRPM32F7
China Rohs RegulationX
Circularity ProfileN/A
Coil Voltage120 V AC 50/60 Hz
Coil Volts120V AC
ConnectionFLAT/SPADE (FASTON TYPE)
Contact Configuration3 C/O
Contact Current Rating15 A
Contact Form3PDT
Contact Form - Relay3PDT
Contact MaterialSilver Nickel Alloy, Silver Alloy
Contact Operation3 C/O
Contact RatingB300
Contact Voltage Rating300
Contacts3PDT
Contacts MaterialAgNi
Contacts Type And Composition3 C/O
Control Typelockable test button
Country of OriginCN - China, China
Cross Reference ProductsIDEC RH3B-ULCAC120V|Magnecraft 783XCXM4L120VAC
Current Rating15 A
DC Contact Rating - Relay15A @ 28V
Device Presentationcomplete product
Device Short NameRPM
Dielectric Strength1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
DiodeNo
Drop-Out Voltage Threshold>= 0.15 Uc AC
ECCNEAR99
Electrical Durability100000 cycles resistive
EnclosureIP 40 CONFORMING TO IEC/EN 60529, Plastic
Environmental DisclosureENVPEP1406038EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Family SeriesSquare D Relays
FeaturesPlug In Protection Module to Protect Against Electrical Spikes
Flat Pin Width0.18 in
Gross Weight0 lbs
GTIN03389119402088
HP @ 120VNot Rated
HP @ 240VNot Rated
Ip Degree Of ProtectionIP40 conforming to IEC 60529
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item NumberRPM32F7
Item TypePlug-in relay;Flat
Load Current15 A 250 V AC || 15 A 28 V DC
Made in USANo
ManufacturerSquare D, Schneider Electric
Manufacturer Part NumberRPM32F7
MaterialAgNi
Max Current15 A
Maximum Switching Capacity3750 VA || 420 W
Maximum Switching Voltage250 V IEC
Mechanical Durability10000000 cycles
Minimum Switching Capacity170 mW 10 mA, 17 V
MountingDIN Rail
Mounting - RelayPlug In
Mounting TypePanel Mount
Net Weight0 lbs, 0.054 kg
Nominal Coil Voltage120 VAC
Number of Pins - Relay11
Operating Positionany position
Operating Temperature-40-55 A Degrees C
Operating Time20 ms at nominal voltage
Overall Depth1.82 in
Overall Height - Relay2.13 in
Pollution Degree3
Power Consumption - Relay1.7 VA
Primary TypePower Relays
Product CertificationsEAC || CSA || UL
Product Or Component Typeplug-in relay
Protection CategoryRT I
Published Coil Voltage120 VAC
Push-to-TestYes
Range Of ProductHarmony Electromechanical Relays
Rated Operational Voltage Limits96...132 V AC
Reach Free Of SvhcYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Reset Time20 ms at nominal voltage
Resistance2770 OHMS
RoHSYes
Safety GuidedNo
Safety Reliability DataB10d = 100000
SeriesHarmony
Series NamePower
Shape Of Pinflat
Shock Resistance15 gnin operation || 30 gnnot operating
Special Featuresany position
StandardCSA C22.2 No 14 || EN/IEC 61810-1 || UL 508, 15 GNIN OPERATION-30 GNNOT OPERATING,3 GN +/- 1 MM 10-150 HZ)5 CYCLES IN OPERATION-5 GN +/- 1 MM 10-150 HZ)5 CYCLES NOT OPERATING,CSA C22.2 NO 14-EN/IEC 61810-1-UL 508,EAC-CSA-ROHS-UL-REACH,IP40 EN/IEC 60529
StandardsCSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed, CSA C22.2 No 14 || IEC 61810-1 || UL 508
Status IndicatorYes
Status Ledwith
Sub BrandRPM
TerminationPlug-In
Test Levelslevel A group mounting
UNSPSC39122326
UPC785901572824
UPC Code785901572824
Utilisation Coefficient20 %
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Warranty18 months
Warranty DescriptionContractual Warranty:18 months
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

All Prices

Img Seller Supplier SKU Requested Price Calc MOQ Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoRPM32F7-SQD13.0713.071In StockSquare D13.07 @ Qty: 1+
Graybar2507460113.7213.721In StockSquare D (Schneider Electric)13.72 @ Qty: 1+
thumbzoomZoroG048737414.2914.291280Schneider Electric0.1214.29 @ Qty: 1+
thumbzoommayerelectric.comSQDRPM32F716.0616.061In StockSQUARE D0.118816.06 @ Qty: 1+
thumbzoomcrescentelectric.com16117517.6417.64115Schneider Electric17.64 @ Qty: 1+
us.rs-online.com7033506918.3618.361In StockSchneider Electric18.36 @ Qty: 1+
thumbzoomNewark66AH687320.1620.161In StockSCHNEIDER ELECTRIC20.16 @ Qty: 1+
thumbzoombscsource.comRPM32F728.9928.991In StockSquare D28.99 @ Qty: 1+
thumbzoomNational Supply Network6861842033.1933.191In StockSquare D33.19 @ Qty: 1+
thumbzoomRaptor SuppliesAF6PXQ35.095963535.09596351In StockSCHNEIDER ELECTRIC35.0959635 @ Qty: 1+
thumbzoomblackhawksupply.comRPM32F7128.13128.131In StockSquare D128.13 @ Qty: 1+
B0085CUZ64
Schneider Electric RPM32F7

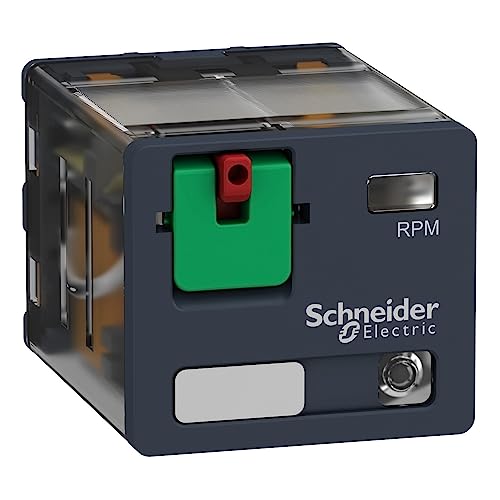

Plug in Relay, 11 Pins, Square, 120Vac
