| Accepts Input Control Signal | Remote Contact |
| Adjustable Acceleration Time, Adjustable Deceleration Time | 0.1 to 999.9 sec |
| Application | Commercial office Buildings, Residential High Rise and Mixed-Use Buildings, Schools and Campus Environments |
| Control Method, Control Type | Keypad, Remote |
| Country of Origin (subject to change) | Indonesia |
| Depth | 10.141 in |
| Display Type | LCD |
| Displays | Integrated, LCD |
| Dynamic Braking | Dynamic Deceleration |
| Enclosure | Totally Enclosed |
| Enclosure Rating | NEMA 1 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Height | 40.375 in |
| Input Frequency | 50/60 Hz |
| Input Phase AC, Output Phase AC | Three |
| Input Voltage, Output Voltage | 208V AC |

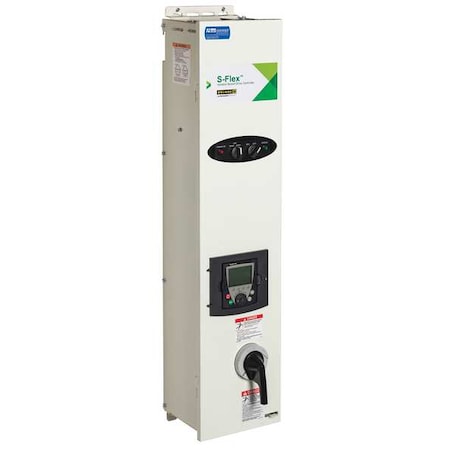

| Item | Variable Torque AC Drive |
| Max. HP | 7.5 hp |
| Max. Output Amps, Maximum Output Current | 25.3 A |
| Maximum Output Power | 7 1/2 hp |
| Number of Inputs | (2) Analog |
| Number of Outputs | (1) Analog |
| Output Frequency Range | 0.5 to 200 Hz |
| Overall Depth | 10 1/8 in |
| Overall Height | 40 3/8 in |
| Overall Width | 9 1/16 in |
| Protection | Circuit Breaker |
| Standards | UL Type 1, RoHS |
| Start/Stop Control | Yes |
| Starting Torque, Torque @ 1 Hz | 110% |
| Width | 9.038 in |
| With Bypass / No Bypass | With Bypass |
| With Line Contactor / No Line Contactor | No Line Contactor |
