Schneider Electric SSP3A225BD

B00VJL22SM

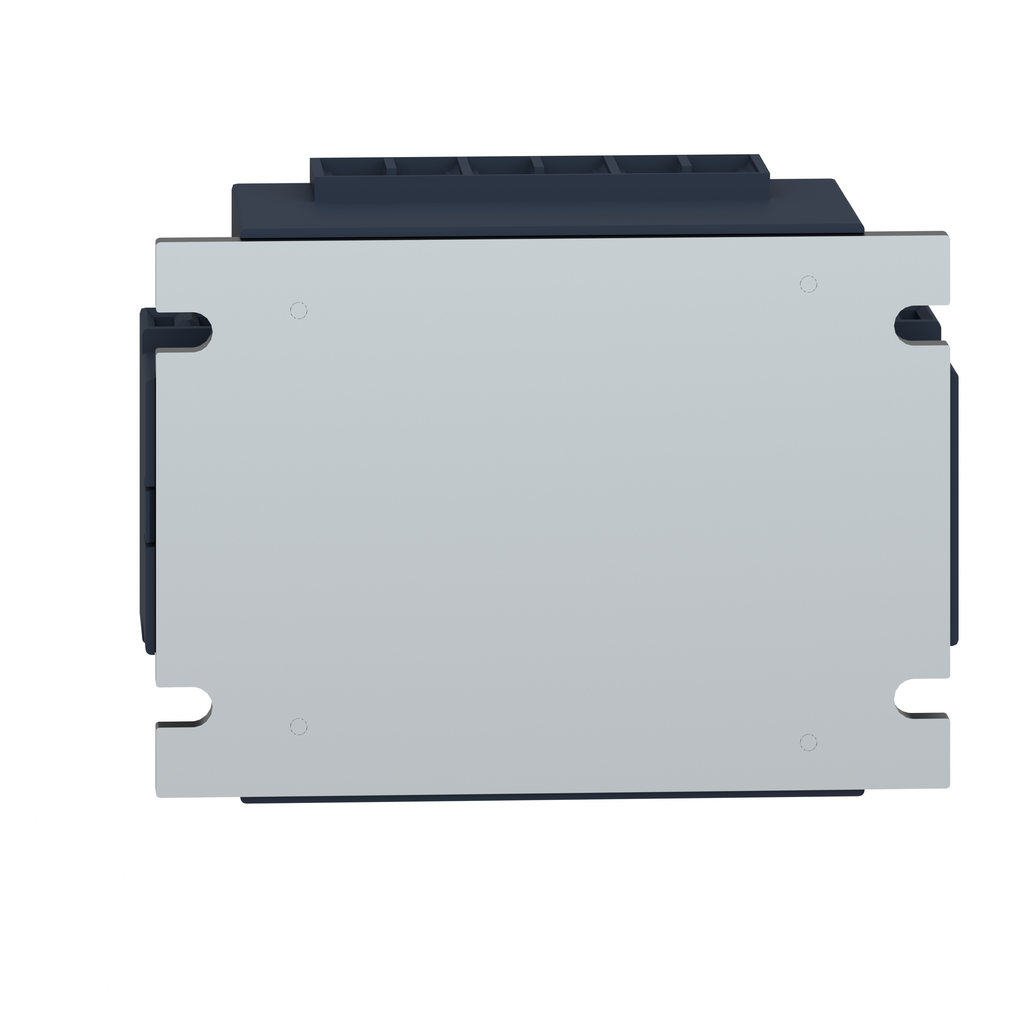

SCHNEIDER ELECTRIC SSP3A225BD SSR, PANEL MOUNT, 530VAC, 25A, SCREW

SCHNEIDER ELECTRIC SSP3A225BD SSR, PANEL MOUNT, 530VAC, 25A, SCREWzoom

Attributes

Key Value
[Uc] Control Circuit Vo.4...32 V DC, 4...32 V
Absolute Maximum Voltage1200 V
Ambient Air Temperature.-40-80 ?C
Ambient Air Temperature.-40-125 ?C
Application0.56 KW 40-40 A Degrees.
Body Depth1.39 in
Body Depth - Relay3.14 in
Body dimensions101.3x79.7x35.4mm
Body Height3.13 in
Body Height - Relay1.4 in
Body Width3.98 in
Body Width - Relay4 in
BrandSchneider Electric
California Proposition .Lead and lead compounds.
Capacitance Unbalance8 pF for input/output
Catalog NumberSSP3A225BD
CategoryRelays
China Rohs RegulationX
CircuitSPST-NO (1 Form A)
Circularity ProfileENVEOLI1505006EN
ConnectionScrew terminals 1 x 0.2.
Connections - Terminalsscrew terminals 1 x 0.2.
Contact Current Rating25 A
Contact Form3PST-NO
Contact Form - Relay(3) SPST-NO
Control Typewithout test button
Control voltage4...32V DC
Control Voltage32 V
Cos Phi0.5-0.5 (with maximum l.
Country of OriginMexico
Depth35.4 mm
DescriptionSSR RELAY SPST-NO 25A 4.
Detailed DescriptionSolid State SPST-NO (1 .
Device Presentationcomplete product
Device Short NameSSP
Dielectric Strength4 kV AC for input/outpu.
Digi-Key Part Number4008-SSP3A225BD-ND
Dv/Dt500 V/?s off-state at m.
Environmental DisclosureENVPEP1505006EN
Eu Rohs DirectivePro-active compliance (.
Flame RetardanceV0 conforming to UL 94
GTIN03606480579820
Heat SinkNot Included
Height79.7 mm
Input Current Limits24-35 mA
Input or Control Voltage4 to 32V DC
Input Power Consumption.1.1W
Input Voltage4 to 32V DC
Insulation Resistance>= 1000 MOhm at 500 V DC
International ShippingNo
Ip Degree Of ProtectionIP20
IP ratingIP20
ItemSolid State Relay
Item - RelaySolid State Relay
Item TypeSolid state relay up to.
Line Rated Current25 A
Load Current0.1-25 A, 25 A
Local SignallingLED, green input
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.SSP3A225BD
Manufacturer seriesZelio Relay
Manufacturer Standard L.1 Weeks
MarkingCE
Max. operating current25A
Max. Output Amps w/Heat.25 A
Maximum Horse Power Rat.0.75 hp 40 ?C 120 V AC .
Maximum I?T For Fusing380 A?.s for 10 ms at 5.
Maximum Leakage Current3 mA off-state
Maximum Switching Volta.1 V DC turn-off
Mercury FreeYes
MfrSchneider Electric
Minimum Switching Volta.4 V DC turn-on
Motor Power Kw0.56 kW 40-40 ?C 120 V .
MountingPanel
Mounting - RelaySurface
Mounting SupportPanel
Mounting TypePanel Mount, Chassis Mo.
MpnSSP3A225BD
Net Weight0.24 kg
Number of Poles3
Operating temperature-40...80?C
Operating Temperature-40-80 A Degrees C
Output or Controlled Vo.48 to 530V AC
Output Switching Modezero voltage switching
Output TypeAC, Zero Cross
Overall Depth1.39 in
Overall Height - Relay1.4 in
Overvoltage CategoryIII
PackageBox
Package / CaseHockey Puck
Phase3 phase
Pollution Degree2
Product CertificationsCSA || UL
Product Or Component Ty.Solid state relay up to.
Product StatusActive
Range Of ProductHarmony Solid State Rel.
Reach RegulationReference contains Subs.
Relay seriesSSP
Relay Turns On AtZero Crossing
Relay variant3-phase
Response Time8.33 ms (turn-on) || 8..
Rohs Exemption Informat.Yes
SeriesHarmony, SSP Series
Size1.39
SKUZO-G9347852
Solid State Output Typezero voltage switching
Special FeaturesLED, green input
StandardIP20
StandardsIEC 60950-1 || IEC 6231.
Sub BrandSSP
SubCategoryElectrical
Supplier Device PackageHockey Puck
Surge Current275 A 20 ms || 300 A 16.
Sustainable Offer StatusGreen Premium product
Switch TypeSCR
Switched voltage48...530V AC
Switching methodzero voltage switching
TerminationScrew
Termination StyleScrew Terminal
Thermal Resitance0.24 ?C/W
Tightening Torque0.9...1.1 N.m for input.
Type of relaysolid state
UPC785901970934
UPC Code785901970934
Voltage - Input4 ~ 32VDC
Voltage - Load48 V ~ 530 V
Voltage Output48 to 530VAC
Width101.3 mm
