Schneider Electric SSP3A225F7

B00VJL2OFI

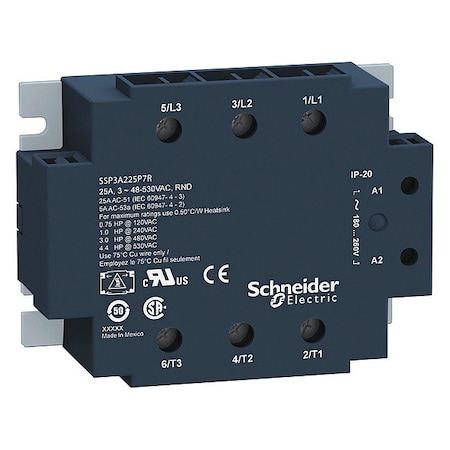

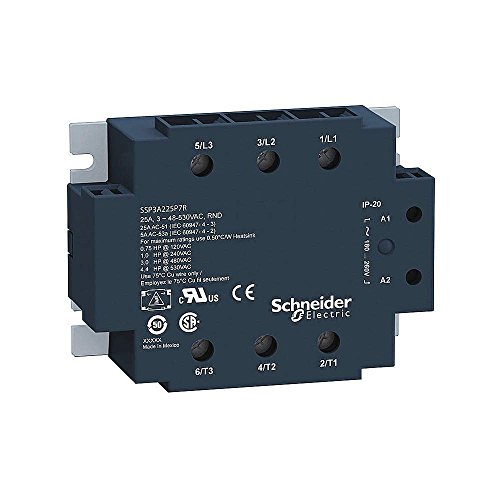

SCHNEIDER ELECTRIC SSP3A225F7 SSR, PANEL MOUNT, 530VAC, 25A, SCREW

SCHNEIDER ELECTRIC SSP3A225F7 SSR, PANEL MOUNT, 530VAC, 25A, SCREWzoom

Attributes

Key Value
Body Depth - Relay3.14 in
Body dimensions101.3x79.7x35.4mm
Body Height - Relay1.4 in
Body Width - Relay4 in
Case ColorDark Gray
CategoryRelays
CircuitSPST-NO (1 Form A)
Contact Current Rating25 A
Contact Form3PST-NO
Contact Form - Relay(3) SPST-NO
Control Voltage140 V
Control voltage90...140V AC
DescriptionSSR RELAY SPST-NO 25A 4.
Detailed DescriptionSolid State SPST-NO (1 .
Digi-Key Part Number4008-SSP3A225F7-ND
Finger SafeYes
Heat SinkNot Included
Input or Control Voltage30 to 140V AC
Input Power Consumption.2.2VA
Input Voltage30 to 140VAC
IP ratingIP20
ItemSolid State Relay
Item - RelaySolid State Relay
Load Current25 A
ManufacturerSCHNEIDER ELECTRIC
Manufacturer Product Nu.SSP3A225F7
Manufacturer seriesZelio Relay
Manufacturer Standard L.1 Weeks
Max. operating current25A
Max. Output Amps w/Heat.25
Max. Output Amps Withou.Not Recommended
Max. Output w/Heat Sink25A
MfrSCHNEIDER ELECTRIC
MountingFlange
Mounting - RelaySurface
Mounting TypePanel Mount, Chassis Mo.
Number of Poles3
Operating temperature-40...80?C
Output or Controlled Vo.48 to 530V AC
Output TypeAC, Zero Cross
Overall Height - Relay1.4 in
PackageBox
Package / CaseHockey Puck
Product StatusActive
Relay seriesSSP
Relay Turns On AtZero Crossing
Relay variant3-phase
SeriesHarmony, SSP Series
StandardsCE, CSA, RoHS, UL
Supplier Device PackageHockey Puck
Switch TypeSCR
Switched voltage48...530V AC
Switching methodzero voltage switching
TerminationScrew
Termination StyleScrew Terminal
Turns On AtZero Cross
Type of relaysolid state
UPC Code785901970927
Voltage - Input90 ~ 140VAC
Voltage - Load48 V ~ 530 V
Voltage Output48 to 530VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RadwellSSP3A225F7159.09125SCHNEIDER ELECTRIC159.09 @ 25
thumbzoomTMESSP3A225F7176.17125SCHNEIDER ELECTRIC176.17 @ 25
thumbzoomgordonelectricsupply.comSSP3A225F7179.5912510SQUARE D179.59 @ 25
thumbzoomZoroG9347861212.8512568Schneider Electric0.79212.85 @ 25
thumbzoomDigi-Key17151307213.38125Schneider Electric213.38 @ 25
thumbzoomsustainablesupply.comC2926596222.9125Schneider Electric0.79222.9 @ 25
us.rs-online.com70462278275.07125Schneider Electric275.07 @ 25
RS Delivers922-2022275.472125Schneider Electric275.472 @ 25
