Schneider Electric SSP3A225P7

B011OXMEJG

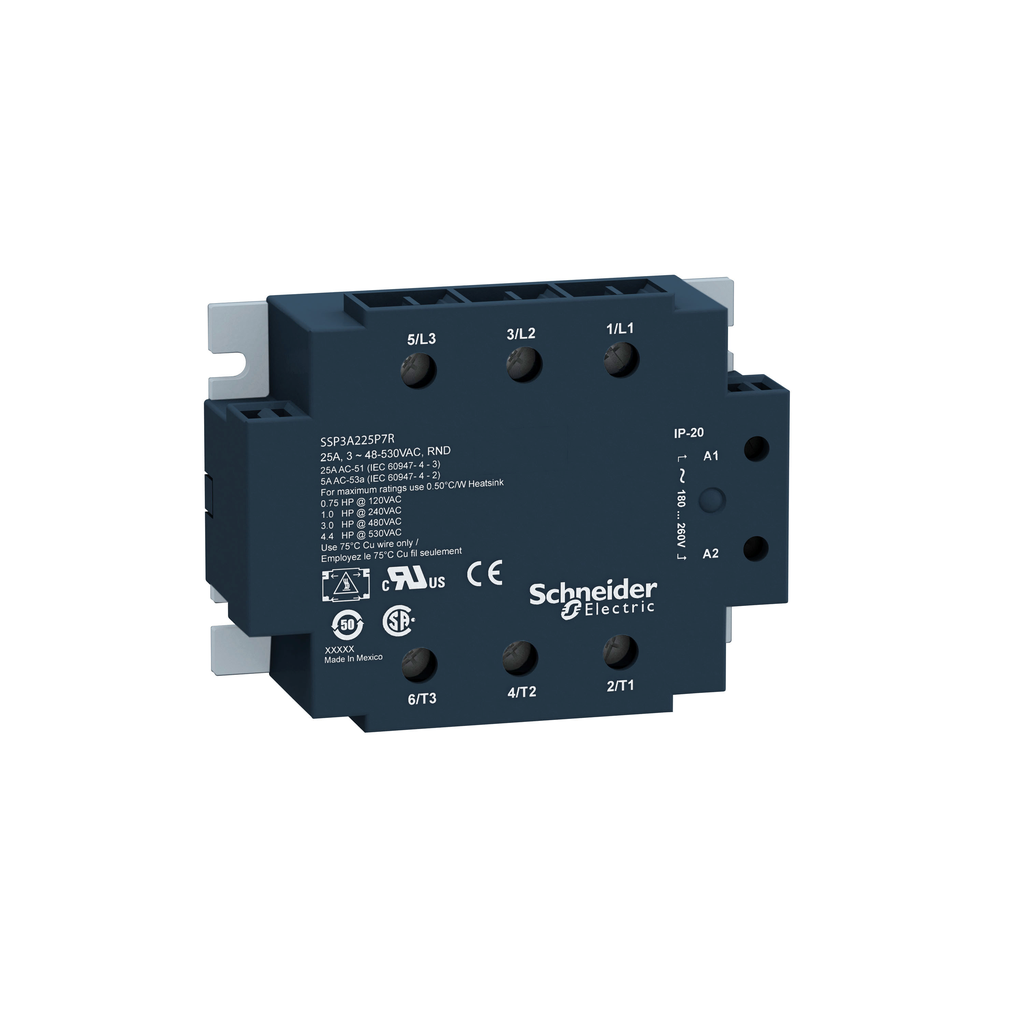

SCHNEIDER ELECTRIC SSP3A225P7 SSR, PANEL MOUNT, 530VAC, 25A, SCREW

SCHNEIDER ELECTRIC SSP3A225P7 SSR, PANEL MOUNT, 530VAC, 25A, SCREWzoom

Attributes

Key Value
[Uc] Control Circuit Vo.180...280 V AC
Absolute Maximum Voltage1200 V
Ambient Air Temperature.-40-80 ?C
Ambient Air Temperature.-40-125 ?C
Body Depth - Relay3.14 in
Body dimensions101.3x79.7x35.4mm
Body Height - Relay1.4 in
Body Width - Relay4 in
California Proposition .Lead and lead compounds.
Capacitance Unbalance8 pF for input/output
Case ColorDark Gray
China Rohs RegulationX
Circularity ProfileENVEOLI1505006EN
Connections - Terminalsscrew terminals 1 x 0.2.
Contact Form - Relay(3) SPST-NO
Control Typewithout test button
Control voltage180...280V AC
Cos Phi0.5-0.5 (with maximum l.
Country of Origin (subj.Mexico
Depth35.4 mm
Device Presentationcomplete product
Device Short NameSSP
Dielectric Strength4 kV AC for input/outpu.
Dv/Dt500 V/?s off-state at m.
Environmental DisclosureENVPEP1505006EN
Eu Rohs DirectivePro-active compliance (.
Finger SafeYes
Flame RetardanceV0 conforming to UL 94
Green Environmental Att.Does not Contain Formal.
Heat SinkNot Included
Height79.7 mm
Input Current Limits7-20 mA
Input or Control Voltage180 to 280V AC
Input or Control Voltag.180 to 280VAC
Input Power Consumption.5.6VA
Input Voltage180 to 280VAC
Insulation Resistance>= 1000 MOhm at 500 V DC
Ip Degree Of ProtectionIP20
IP ratingIP20
ItemSolid State Relay
Item - RelaySolid State Relay
Line Rated Current25 A
Load Current0.1-25 A
Local SignallingLED, green input
ManufacturerSCHNEIDER ELECTRIC
Manufacturer seriesZelio Relay
MarkingCE
Max. operating current25A
Max. Output Amps w/Heat.25
Max. Output Amps Withou.Not Recommended
Max. Output w/Heat Sink25A
Maximum Horse Power Rat.0.75 hp 40 ?C 120 V AC .
Maximum I?T For Fusing380 A?.s for 10 ms at 5.
Maximum Leakage Current3 mA off-state
Maximum Switching Volta.10 V AC turn-off
Mercury FreeYes
Minimum Switching Volta.180 V AC turn-on
Motor Power Kw0.56 kW 40-40 ?C 120 V .
MountingFlange
Mounting - RelaySurface
Mounting Supportpanel
Net Weight0.24 kg
Operating temperature-40...80?C
Output or Controlled Vo.48 to 530V AC
Output Switching Modezero voltage switching
Output Voltage48...530 V AC
Overall Height - Relay1.4 in
Overvoltage CategoryIII
Phase3, 3 phase
Pollution Degree2
Product CertificationsUL || CSA
Product Or Component Ty.solid state relay up to.
Range Of ProductHarmony Solid State Rel.
Reach RegulationReference contains Subs.
Relay seriesSSP
Relay Turns On AtZero Crossing
Relay variant3-phase
Response Time20 ms (turn-on) || 30 m.
Rohs Exemption Informat.Yes
Solid State Output Typezero voltage switching
StandardsIEC 61000 || IEC 60950-.
Surge Current275 A 20 ms || 300 A 16.
Sustainable Offer StatusGreen Premium product
Switch TypeSCR
Switched voltage48...530V AC
Switching methodzero voltage switching
Thermal Resitance0.24 ?C/W
Tightening Torque0.9...1.1 N.m for input.
Turns On AtZero Cross
Type of relaysolid state
Voltage Output48 to 530VAC
Width101.3 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMESSP3A225P7158.41In StockSCHNEIDER ELECTRIC158.4 @ 1
thumbzoomRadwellSSP3A225P7195.01In StockSCHNEIDER ELECTRIC SQUARE D195.0 @ 1
thumbzoomZoroG9347877224.111In Stock30Schneider Electric0.79224.11 @ 1
thumbzoomsustainablesupply.comC2926593228.281In StockSchneider Electric0.79228.28 @ 1
RS Delivers922-2032248.79614Schneider Electric248.796 @ 1
thumbzoommayerelectric.comSQDSSP3A225P7269.171In StockSQUARE D0.528269.17 @ 1
