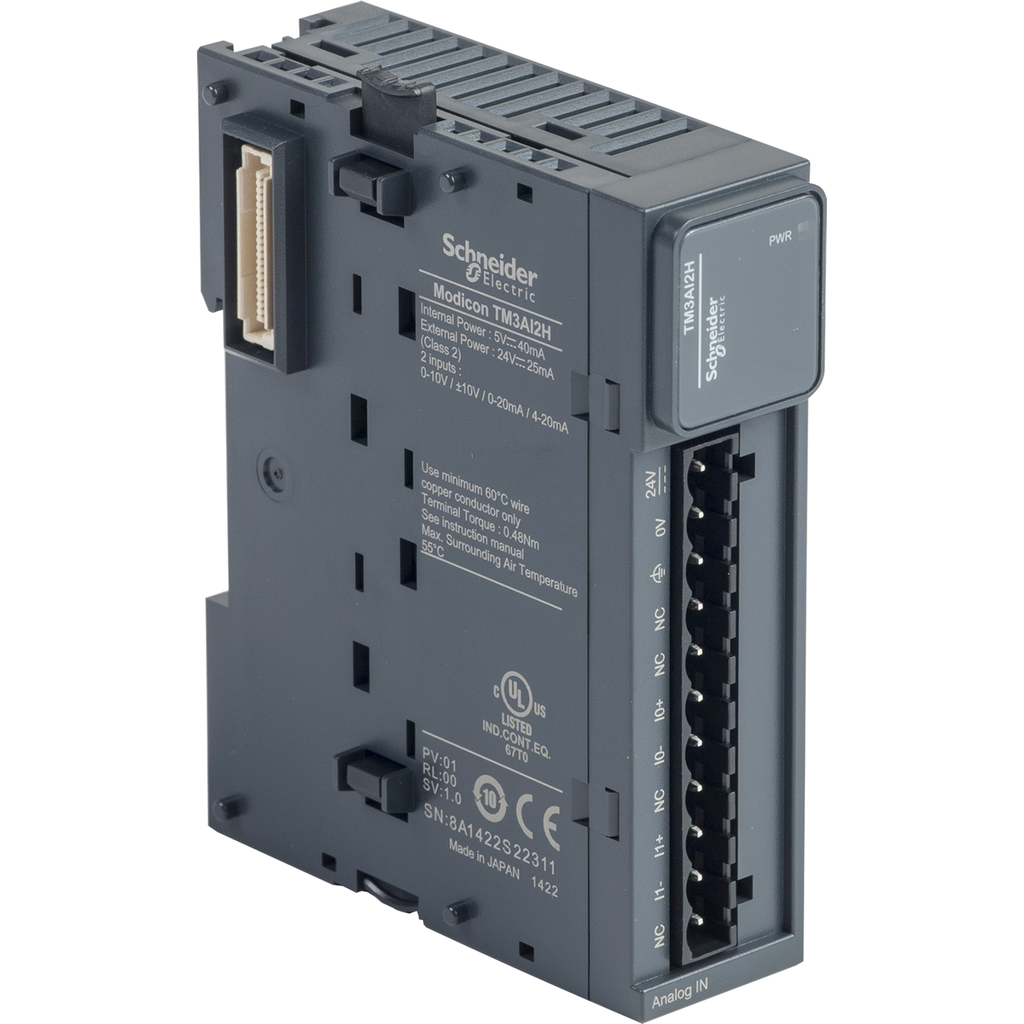

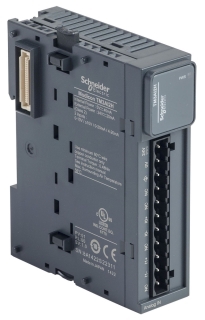

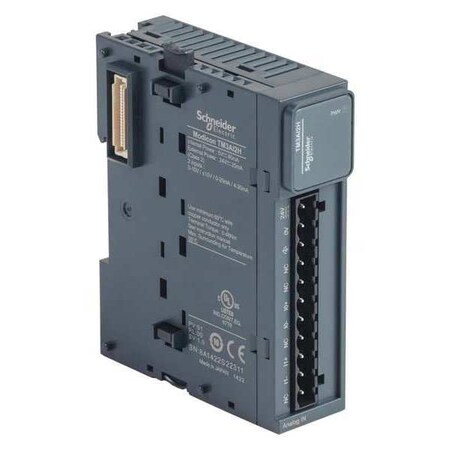

Schneider Electric TM3AI2H

B00ZEEXKXQ

Modicon TM3

Modicon TM3zoom

Attributes

Key Value
[Us] Rated Supply Volta.24 V DC
Absolute Accuracy Error+/- 0.1 % of full scale.
Ambient Air Temperature.-10-55 ?C horizontal in.
Ambient Air Temperature.-25-70 ?C
Analogue Input Number2
Analogue Input Resoluti.16 bits || 15 bits + si.
Analogue Input Typecurrent 4...20 mA || cu.
ApplicationModicon TM3
Approval AgencyCE
BrandSchneider Electric
California Proposition .Lead and lead compounds.
Catalog NumberTM3AI2H
CategoryIndustrial Automation a.
China Rohs RegulationX
Circularity ProfileENVEOLI1402009EN
ConditionNew
Connection Cables11 X 2.5 MMA? REMOVABLE.
Conversion Time1 ms + 1 ms per channel.
Country of OriginJapan, JP - Japan
Current Consumption30 mA 5 V DC via bus co.
Depth70 mm
DescriptionTM3-2 ANALOG INPUTS HIG.
Detailed DescriptionInput, Output (I/O) Mod.
Digi-Key Part Number4008-TM3AI2H-ND
Dimensions90 x 70 x 23.6 mm
Displayfor PWR 1 LED (green)
ECCNEAR99
Electrical Connection11 x 2.5 mm? removable .
Electromagnetic Emissionradiated emissions 40 d.
EnclosureIP20
Environmental DisclosureENVPEP1402009EN
Eu Rohs DirectivePro-active compliance (.
Family NameModicon Controllers Fam.
FeaturesPlate or panel with fix.
For Use WithModicon Mfr. No.M221 PL.
For Use With/Related Pr.Multiple Series
GTIN00785901278511, 0360648.
Height3.54, 90 mm
Immunity To Microbreaks10 ms
IncludesTerminal Block
Ingress ProtectionIP20
Input Current0 to 20 mA
Input Impedance<= 50 Ohm current || >=.
Input Signalcurrent 4...20 mA; curr.
Input TypeCurrent, Voltage
Insulationbetween input and suppl.
Ip Degree Of ProtectionIP20
IP RatingIP20
ItemExtension Module
Item Typeanalog input module
Length2.76
Length UOMInch
Local Signallingfor PWR 1 LED (green)
Lsb Value0.153 mV 0...10 V volta.
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Product Nu.TM3AI2H
Manufacturer Standard L.1 Weeks
MarkingCE
Mercury FreeYes
MfrSchneider Electric
MountingRail Plate
Mounting Supporttop hat type TH35-15 ra.
Mounting TypePanel Mount, DIN Rail
Net Weight0.115 kg
Non-Linearity+/- 0.01 %FS
Number of Channels2
Number of Inputs2
Number of Inputs and Ty.4 - Analog
Number of Outputs0
Number of Outputs and T.-
Operating Altitude0...6561.68 ft (0...200.
Operating Temperature-10...55 A Degrees C (H.
PackageBox
Permissible Continuous .13 V voltage || 40 mA c.
Pollution Degree2
Power Required24V DC
Power Supply30 mA 5 V DC via bus co.
Primary TypeInput Module
Product Or Component Ty.analog input module
Product StatusActive
Product TypeExtension Module
Pvc FreeYes
Range CompatibilityModicon M221 || Modicon.
Range Of ProductModicon TM3
Reach RegulationReference contains Subs.
Relative Humidity10-95 %, without conden.
Repeat Accuracy+/-0.5 %FS
Resistance To Conducted.10 V 0.15...80 MHz EN/I.
Resistance To Electroma.10 V/m 80 MHz...1 GHz E.
Resistance To Electrost.8 kV in air EN/IEC 6100.
Resistance To Fast Tran.1 kV EN/IEC 61000-4-4 I.
Resistance To Magnetic .30 A/m EN/IEC 61000-4-8
Rohs Exemption Informat.Yes
Sampling Duration1 ms
SeriesModicon TM3 Series, Mod.
Shock Resistance15 gn 11 ms
Special Features11 x 2.5 mm? removable .
StandardCE
StandardsEN/IEC 61131-2 || EN/IE.
Storage Altitude0-3000 m
Sub BrandModicon M221;Modicon M2.
Supply Voltage24 VDC
Supply Voltage Limits20.4-28.8 V
Surge Withstand1 kV power supply commo.
Sustainable Offer StatusGreen Premium product
Temperature Drift+/- 0.006 %FS/?C
Termination StyleScrew Terminal
Toxic Heavy Metal FreeYes
TypeAnalog, Input, Output (.
UNSPSC32151705
UPC785901278511
UPC Code785901278511
Vibration Resistance3.5 mm 5-8.4 Hz DIN rai.
Voltage - Supply24VDC
WeeeThe product must be dis.
Weight2.000000, -
Width23.6 mm, 0.93
