CAI - SCHNEIDER ELECTRIC XB5AA51

B07J4VR3DS

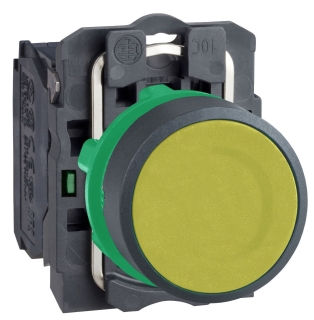

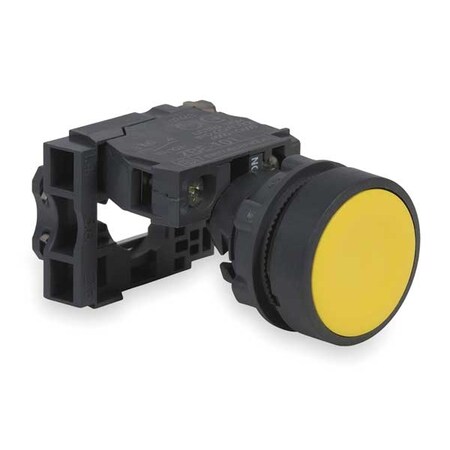

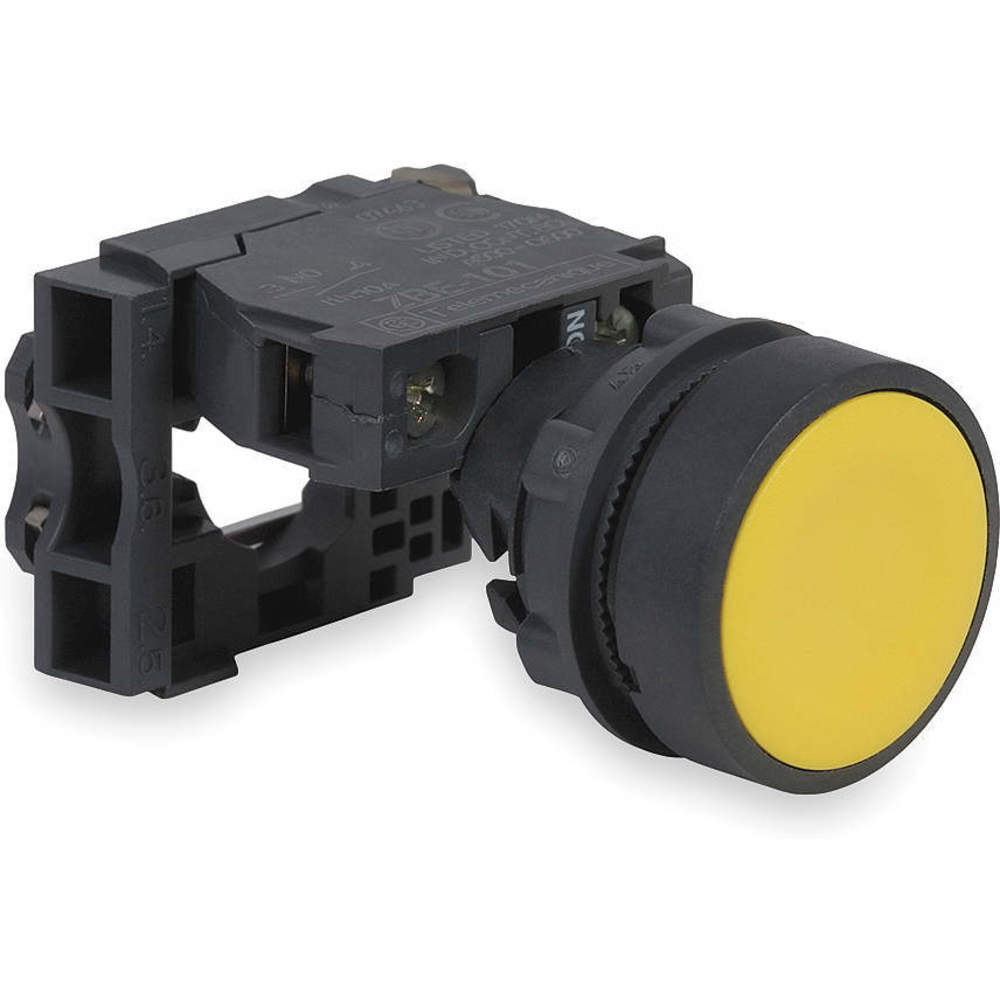

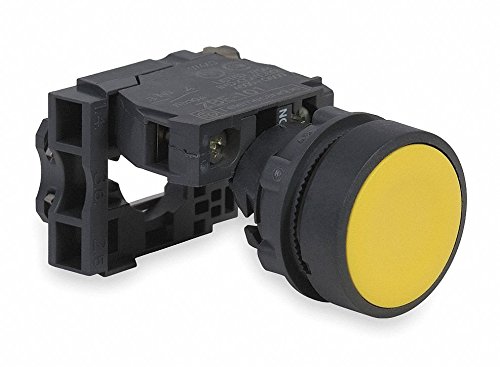

Schneider Electric Non-Illuminated Push Button, Type of Operator: Flush Button, Size: 22mm, Action: Momentary Push

Schneider Electric Non-Illuminated Push Button, Type of Operator: Flush Button, Size: 22mm, Action: Momentary Pushzoom

Attributes

Key Value
AC contacts rating @R3A / 240V AC
ActionMomentary Push, Slow-br.
ActuationSpring Return
Actuatorspring return;Yellow fl.
Actuator colouryellow
Actuator TypeRound, Button, Flush
Amperage Rating10
Basic MaterialPlastic
BezelPlastic
Bezel Materialplastic || dark grey pl.
BrandSCHNEIDER ELECTRIC
Button markingblank
Button shapeflat
Catalog NumberXB5AA51
CategorySwitches
CircuitSPST-NO
Coloryellow
Color - Actuator/Capyellow
Colouryellow
ConnectionScrew clamp terminals,
Contact Configuration1 NO
Contact Form1NO
Contact Rating10A @ 600V AC, 10 A @ 6.
Contacts configurationNO
Country of OriginFR - France, France
Current Rating (Amps)6A (AC), 550mA (DC)
DC contacts rating @R0.55A / 125V DC
Depth52 mm
DescriptionHARMONY XB5, PUSH BUTTO.
Detailed DescriptionPushbutton Switch SPST-.
Digi-Key Part Number4008-XB5AA51-ND
ECCNEAR99
Electrical Life1,000,000 Cycles
EnclosureNEMA 4/4X/13
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Family NameHarmony XB4 / XB5 Family
Features-
Head MaterialPlastic
Height42 mm
Illuminationnone, Illuminated, Yell.
Illumination Coloryellow
Illumination Type, Color-
Illumination Voltage (N.-
Indicatoryellow
Ingress ProtectionIP66/IP67/IP69/IP69K - .
Insulation600 V 3)EN/IEC 60947-1
IP ratingIP66
IP Rating65
ItemNon-Illuminated Push Bu.
Item Typepush-button
LegendNo legend
Made in USANO
ManufacturerSCHNEIDER ELECTRIC
Manufacturer Product Nu.XB5AA51
Manufacturer seriesHarmony XB5
Manufacturer Standard L.6 Weeks
MaterialPlastic;dark grey plast.
Mechanical Life10,000,000 Cycles
MfrSCHNEIDER ELECTRIC
Mounting Diameter22 mm
Mounting hole diameter?22mm
Mounting Hole Size22 mm, 22
Mounting TypePanel Mount, Front
NEMA Contact Rating Des.A600/Q600
NEMA Rating1, 12, 13, 2, 3, 4, 4X
Number of Operators1
Number of positions2
Operating temperature-25...70?C
Operating Temperature-40-70 A Degrees C, -40.
PackageBox
Panel Cutout DimensionsCircular - 22.00mm Dia
Product StatusActive
Product TypeNon-Illuminated Push Bu.
Related itemsZBE101,
SeriesHarmony XB5, Harmony, H.
Size2.05, 22 mm
Special FeaturesNON-ILLUMINATED
Stable positions number1
StandardUL LISTED FILE NUMBER E.
StandardsCE, CSA, UL
Sub BrandXB5
Switch FunctionOn-Off
Switch standard22mm
Switches featureswitout symbol
Terminal ConnectionPressure Plate
Termination StyleScrew Terminal
TypeStandard
Type of OperatorFlush Button
Type of switchpush-button
UNSPSC39122216
UPC785901383529
UPC Code785901383529
Voltage Rating - AC120 V
Voltage Rating - DC125 V
Warranty DescriptionContractual Warranty:18.
Width30 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
TMEXB5AA5112.041In StockSCHNEIDER ELECTRIC12.04 @ 1
RS Delivers815-183416.741In StockSchneider Electric16.74 @ 1
thumbzoomNewark66AH760225.281In StockSCHNEIDER ELECTRIC25.28 @ 1
us.rs-online.com7000867929.2112Schneider Electric29.21 @ 1
thumbzoomZoroG193014429.49126Schneider Electric0.0629.49 @ 1
standardelectricsupply.com224257330.51In StockSchneider Electric30.5 @ 1
thumbzoomgordonelectricsupply.comXB5AA5133.591In Stock10SQUARE D33.59 @ 1
grainger.caTLQXB5AA5134.954816961In StockSCHNEIDER ELECTRIC0.0634.95481696 @ 1
industrialautomationparts.comAE-00884637.061In StockSchneider Electric37.06 @ 1
Future Electronics702841742.2645In StockSchneider Electric42.264 @ 5
Graybar9953450843.121In StockSquare D (Schneider Electric)43.12 @ 1
thumbzoomDigi-Key1661458243.311In StockSchneider Electric43.31 @ 1
thumbzoomsustainablesupply.comC118379546.471In StockSchneider Electric0.0646.47 @ 1
thumbzoomcrescentelectric.com42275748.181100Schneider Electric48.18 @ 1
thumbzoomNational Supply Network6967183249.961In StockSchneider Electric49.96 @ 1
thumbzoomRaptor SuppliesAF9JZR61.8564961In StockSCHNEIDER ELECTRIC61.856496 @ 1
