Schneider Electric XB5AD33

B002ICOOWI

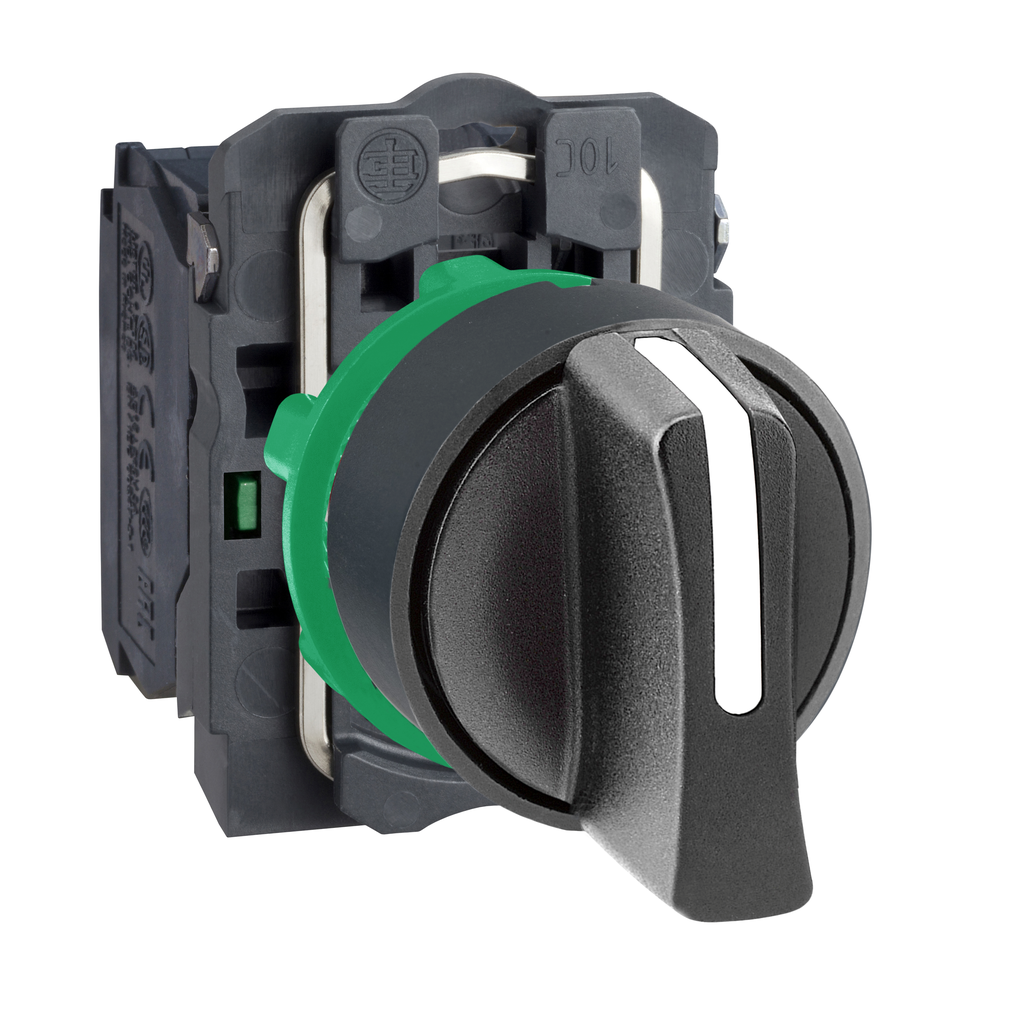

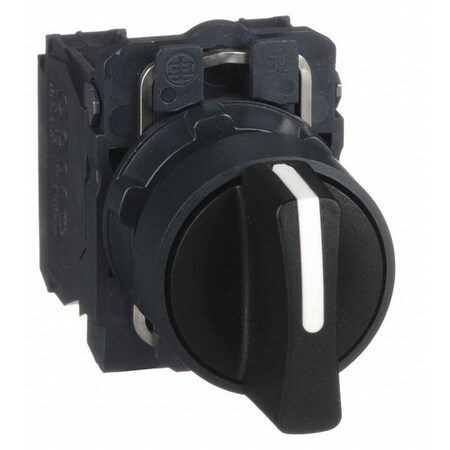

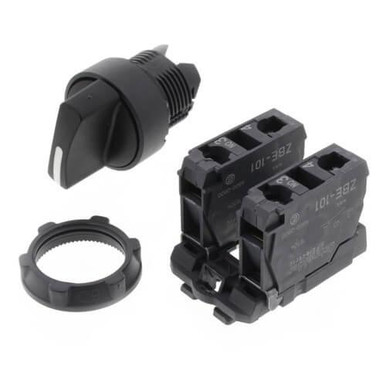

Non-illicit selector Switch, 22 mm, 3 Points, Key

Non-illicit selector Switch, 22 mm, 3 Points, Keyzoom

Attributes

Key Value
[Ie] Rated Operational .3 A 240 V, AC-15, A600 .
[Ith] Conventional Free.10 A IEC 60947-5-1
[Ui] Rated Insulation V.600 V 3)IEC 60947-1
[Uimp] Rated Impulse Wi.6 kV IEC 60947-1
ActionMaintained / Maintained.
Actuatorstay put;Black standard.
Actuator ColorBlack
Actuator TypeKnob, Rotary
Ambient Air Temperature.-40-70 ?C
Ambient Air Temperature.-40-70 ?C
Amperage Rating10
ApprovalsCSA, UL
Basic MaterialPlastic
Batteries Required?No
Best Sellers Rank#1,457,328 in Industria.
BezelPlastic Round
Bezel ColorChrome
Bezel ColourChrome
Bezel Materialdark grey plastic, Plas.
BrandSCHNEIDER ELECTRIC
California Proposition .Di-isodecyl phthalate (.
CamNo Cam
Catalog NumberXB5AD33
China Rohs RegulationX
Circularity ProfileENVEOLI1710010EN
ColorBlack
ColourBlack
ConnectionScrew clamp terminals,
Connector TypeScrew
Contact Configuration2 NO
Contact FormDPST-NO, 2NO
Contact Operationslow-break
Contact Rating10A @ 600V AC, 10 A @ 6.
Contacts2NO
Contacts Materialsilver alloy (Ag/Ni)
Contacts Type And Compo.2 NO
Contacts Usagestandard contacts
Country of OriginFR - France, France
Current (A)0-6 A
Current Rating2 A
Date First AvailableNovember 19, 2014
Depth70 mm
Device Presentationcomplete product
Device Short NameXB5
ECCNEAR99
Electrical Durability1000000 cycles, AC-15, .
Electrical Shock Protec.class II IEC 60536
EnclosureNEMA 4/4X/13
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Environmental DisclosureENVPEP1710010EN
Eu Rohs DirectivePro-active compliance (.
Family NameHarmony XB4 / XB5 Family
Family SeriesSquare D Switches
Gross Weight0.115 lbs
Head Typestandard
Height42 mm
Ik Degree Of ProtectionIK04 IEC 50102
IlluminationNon-Illuminated
Illumination ColorNone
Insulation600 V 3)EN 60947-1
Ip Degree Of ProtectionIP67 IEC 60529 || IP69 .
IP Rating69K, IP67, IP69, IP69K,.
ItemNon-Illuminated Selecto.
Item Dimensions LxWxH4 x 2 x 1.3 inches
Item model numberXB5AD33
Item NumberXB5AD33
Item Package Quantity1
Item Typeselector switch
Item Weight1.76 ounces
Key RemovalNo Key
Made in USANo
ManufacturerSquare D, SCHNEIDER ELE.
Manufacturer Part Number313639
Materialdark grey plastic
Max Voltage600 VAC, 600 VDC
Measurement SystemMetric, Imperial
Mechanical Durability1000000 cycles
Mercury FreeYes
Mounting Diameter22 mm
Mounting Size (mm)22 mm
National Stock Number5930-01-593-2095
NEMA Contact Rating Des.B600/Q600
Nema Degree Of Protecti.NEMA 13 || NEMA 4X
NEMA Rating1, 2, 3, 4, 4X, 12, 13,.
Net Weight0.09 lbs, 0.052 kg
Number of Positions3
Operating Temperature-40-70 A Degrees C
OperationON-OFF-ON
Operator ColorBlack
Operator Head MaterialPolyamide
Operator Position Infor.3 positions +/- 45?
Operator Profileblack standard handle
Operator TypeKnob
Part NumberXB5AD33
Position3
Positive Openingwithout
Product CertificationsUL || GL || LROS (Lloyd.
Product Dimensions4 x 2 x 1.3 inches
Product Or Component Ty.selector switch
Product with faster shi.true
Protective TreatmentTH
Range Of ProductHarmony XB5
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Resistance To High Pres.7000000 Pa 55 ?C 0.1 m
RoHSNo
Rohs Exemption Informat.Yes
Sale Per Indivisible Qu.1
Selector FunctionMaintained
SeriesHarmony XB5 Series
Shape Of Screw Headcross Philips no 1 || c.
Shape Of Signaling Unit.round
Shippingundefined (Fixed Shippi.
Shock Resistance30 gn 18 ms) half sine .
Short-Circuit Protection10 A cartridge fuse gG .
Size22 mm, 2.76
Special FeaturesPLASTIC,SELECTOR SWITCH
StandardUL LISTED FILE NUMBER E.
StandardsUL, CSA, IEC 60947-1 ||.
Sub BrandXB5
Sustainable Offer StatusGreen Premium product
Switch FunctionMaintained
Switch Operation @ Posi.XO
Switch Operation @ Posi.OO
Switch Operation @ Posi.OX
Switch Operation @ Posi.No Fourth Position
Switch TypeMaintained Selector Swi.
Terminal TypeScrew
Terminals Description I.(13-14)NO
TerminationScrew
Tightening Torque0.8-1.2 N.m IEC 60947-1
Torque Value0.14 N.m NO changing el.
Toxic Heavy Metal FreeYes
TypeGeneral Purpose
Type Of Operatorstay put
Type of OperatorLever
UNSPSC39122216
UPC785901383666
UPC Code785901383666
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Voltage Rating230 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width30 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEXB5AD3322.12139SCHNEIDER ELECTRIC22.12 @ 1
thumbzoomkempstoncontrols.co.ukXB5AD3328.5371191In StockSchneider28.537119 @ 1
RS Delivers609-604129.2561142Schneider Electric29.256 @ 1
AmazonTPB002ICOOWI35.871In Stock2SCHNEIDER ELECTRIC35.87 @ 1
AmazonUNKB002ICOOWI35.871In StockSCHNEIDER ELECTRIC35.87 @ 1
thumbzoommostelectric.comXB5AD3345.5317SQUARE D/TELEMECANIQUE45.53 @ 1
industrialrefrigerationparts.comXB5AD3347.061In StockSchneider Electric47.06 @ 1
standardelectricsupply.com35554953.87120Schneider Electric53.87 @ 1
thumbzoomZoroG058905757.551228Schneider Electric0.157.55 @ 1
grainger.caTLQXB5AD3360.945929821In StockSCHNEIDER ELECTRIC0.160.94592982 @ 1
hvacdiscountstore.comSCH--XB5AD3362.41131SCHNEIDER ELECTRIC (SQUARE D)62.41 @ 1
thumbzoomblackhawksupply.comXB5AD3364.01In StockSquare D64.0 @ 1
thumbzoommayerelectric.comSQDXB5AD3366.081In StockSQUARE D0.114466.08 @ 1
thumbzoomGalcoXB5AD33-SQD67.31In StockSquare D0.11567.3 @ 1
us.rs-online.com7000868168.161312Schneider Electric68.16 @ 1
thumbzoomVoomi SupplyXB5AD3373.01In StockSCHNEIDER ELECTRIC73.0 @ 1
thumbzoomhomeessentialsdirect.comXB5AD3375.91In StockSCHNEIDER ELECTRIC0.1175.9 @ 1
Graybar9953452876.16111Square D (Schneider Electric)76.16 @ 1
thumbzoomsustainablesupply.comC118380179.191In StockSchneider Electric0.179.19 @ 1
thumbzoommidwestapplianceparts.comXB5AD33-SQ-P80.591In StockSquared80.59 @ 1
thumbzoomNational Supply Network6953404882.541In StockSchneider Electric82.54 @ 1
thumbzoomebay.com_plccenterXB5AD3383.41In StockSCHNEIDER ELECTRIC83.4 @ 1
thumbzoomNewark27C144284.111In StockSCHNEIDER ELECTRIC84.11 @ 1
thumbzoomcrescentelectric.com2071485.112Schneider Electric85.1 @ 1
thumbzoomebay.com_hvacdiscountstoreXB5AD3392.971In StockSCHNEIDER ELECTRIC92.97 @ 1
thumbzoomnorthstock.comXB5AD3397.09114Square D97.09 @ 1
thumbzoomRaptor SuppliesAH2QHG109.4556061In StockSCHNEIDER ELECTRIC109.455606 @ 1
