Schneider Electric XB5AG03

mpnXB5AG03
brandname: Schneider Electric
manufacturername: Schneider Electric

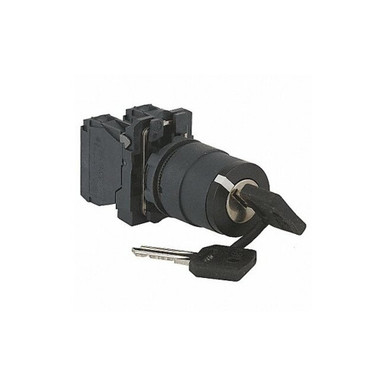

Non-Illum Selector Swtch, 22Mm, 3 Pos, Keyd

Brand: Schneider Electric
PartNumber: XB5AG03
Model: XB5AG03
Color: Black
PackageQuantity: 1
Binding: Misc.
Manufacturer: SCHNEIDER ELECTRIC
Label: SCHNEIDER ELECTRIC

Attributes

Key	Value
Action	Maintained / Maintained.
Actuator	stay put;Black key swit.
Actuator Type	Lever, Flat Key
Alternate Part No.	996-XB5AG03
Angle of Throw	45?
ASIN	B00CONPU8S
Basic Material	Plastic
Batteries Required?	No
Bezel Color	Black
Bezel Material	Plastic
Brand	Schneider Electric
Bushing Size	22 mm
Cam	No Cam
Catalog Number	XB5AG03
Category	Switches
Circuit	DPST-NO
Color	Black
Connection	Screw clamp terminals,
Contact Configuration	2 NO
Contact Finish	-
Contact Form	2NO, 2 NO
Contact Material	Silver Alloy
Contact Plating	Silver Alloy
Contact Rating	AC15 - DC13, 1.2 A, 0.1.
Contact Timing	Not Specified
Contacts	2NO
Country of Origin	France
Current Rating	2 A, 1.2 A, 0.1 A
Current Rating (Amps)	6A (AC), 550mA (DC)
Current Stock	22
Depth	96 mm
Depth Behind Flange	-
Description	HARMONY XB5, KEY SWITCH.
Detailed Description	Keylock Switch 3 Positi.
Digi-Key Part Number	4008-XB5AG03-ND
Electrical Life	1,000,000 Cycles
Enclosure	NEMA 13-NEMA 4X
Environmental Conditions	WATER TIGHT, DUST TIGHT.
Family Name	Harmony XB4 / XB5 Family
Family Series	Square D Switches
Features	-
Gross Weight	0 lbs
GTIN	03389110903478
Height	42 mm
Housing Material	Plastic
Illuminated	Non-Illuminated
Included Components	XB5AG03
Includes	key
Indexing	45 deg
Insulation	600 V 3)EN 60947-1
International Shipping	No
IP Rating	65
Item	Non-Illuminated Selecto.
Item model number	XB5AG03
Item Number	XB5AG03
Item Package Quantity	1
Item Type	Selector switch;Key 455
Key Removable Positions	Left and Right
Key Removal	Any Position
Key Type	Flat
Lead Time	Expected to ship in 1-2.
Made in USA	No
Manufacturer	Square D, Schneider Ele.
Manufacturer Part No.	XB5AG03
Manufacturer Part Number	530203
Manufacturer Product Nu.	XB5AG03
Manufacturer Standard L.	6 Weeks
Material	Dark grey plastic
Mechanical Life	1,000,000 Cycles
Mfr	Schneider Electric
Mounting Diameter	22 mm
Mounting Size (mm)	22 mm
Mounting Type	Panel Mount
Mpn	XB5AG03
NEMA Rating	1, 12, 13, 2, 3, 4, 4X
Net Weight	0 lbs
Number of Positions	3
Operating Temperature	-40-70 A Degrees C, -40.
Operator Color	Black
Operator Head Material	Plastic
Operator Type	key
Package	Box
Panel Cutout Dimensions	Circular - 22.00mm Dia
Part Number	XB5AG03
Position	3
Product Category	Keylock Switches
Product Status	Active
Selector Function	Maintained
Series	Harmony XB5, X5B, Harmo.
Size	22 MM,30 MM,42 MM,96 MM.
SKU	ZO-G0841565
Special Features	PLASTIC,SELECTOR SWITCH
Standard	1000000 CYCLES, AC-15, .
Standards	CE Marked, CSA Certifie.
Sub Brand	XB5
SubCategory	Electrical
Switch Function	Off-On
Switch Operation @ Posi.	OO
Switch Operation @ Posi.	OX
Switch Operation @ Posi.	No Fourth Position
Terminal Type	Screw
Termination Style	Screw Clamp, Screwless .
Type of Operator	Keyed
UPC	785901383680
UPC Code	785901383680
Voltage Rating	230 V
Voltage Rating - AC	120 V
Voltage Rating - DC	125 V
Voltage Rating AC	600 V
Voltage Rating DC	600 V
Warranty Description	Contractual Warranty:18.
Width	30 mm

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
TME	XB5AG03	56.76	1	1		SCHNEIDER ELECTRIC		56.76 @ 1
kempstoncontrols.co.uk	XB5AG03	59.487714	1	In Stock		Schneider		59.487714 @ 1
RS Delivers	609-6063	60.216	1	37		Schneider Electric		60.216 @ 1
mostelectric.com	XB5AG03	94.41	1	In Stock		SQUARE D/TELEMECANIQUE		94.41 @ 1
Zoro	G0841565	120.99	1	37		Schneider Electric	0.15	120.99 @ 1
blackhawksupply.com	XB5AG03	122.39	1	In Stock		Square D		122.39 @ 1
Newark	80C6567	123.03	1	In Stock		SCHNEIDER ELECTRIC		123.03 @ 1
gordonelectricsupply.com	XB5AG03	123.09	1	In Stock	10	SQUARE D		123.09 @ 1
Galco	XB5AG03-SQD	127.9	1	In Stock		Square D		127.9 @ 1
Radwell	XB5AG03	140.0	1	In Stock		SCHNEIDER ELECTRIC TELEMECANIQUE		140.0 @ 1
simsupply.com	ZO-G0841565	143.29	1	22		Schneider Electric		143.29 @ 1
Digi-Key	16612878	145.74	1	In Stock		Schneider Electric		145.74 @ 1
sustainablesupply.com	C1211755	158.4	1	In Stock		Schneider Electric	0.15	158.4 @ 1
Amazon	B00CONPU8S	163.24	1	In Stock		Schneider Electric	1.45	163.24 @ 1
crescentelectric.com	52513	176.43	1	In Stock		Schneider Electric		176.43 @ 1
us.rs-online.com	70337190	194.08	1	In Stock		Schneider Electric		194.08 @ 1
Raptor Supplies	AG7EUA	231.7942575	1	In Stock		SCHNEIDER ELECTRIC		231.7942575 @ 1
swatee.com	XB5AG03	264.89	1	1		Schneider Electric		264.89 @ 1
