- mpnXB5AJ21
- brandname: Schneider Electric
- manufacturername: Schneider Electric

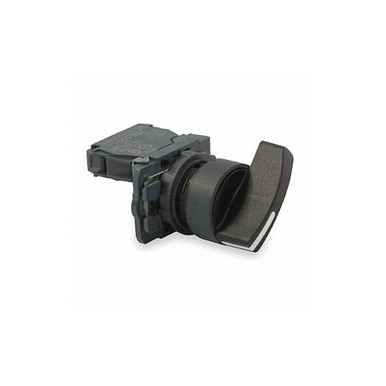

Square D Xb5Aj21 Selector Switch 230Vac
- Brand: Square D
- PartNumber: XB5AJ21
- Color: Black
- PackageQuantity: 1
- Manufacturer: Schneider Electric
- Label: Schneider Electric
Attributes
| Key | Value |
|---|
| Action | Maintained / Maintained. |
| Actuator | stay put;Black long han. |
| Actuator Type | Lever |
| Approval Agency | CSA, UL |
| Basic Material | Plastic |
| Bezel Color | Black |
| Bezel Material | Plastic |
| Brand | Schneider Electric |
| Cam | No Cam |
| Catalog Number | XB5AJ21 |
| Category | Switches |
| Circuit | SPST-NO |
| Color | Black |
| Connection | Screw clamp terminals, |
| Contact Configuration | 1 NO |
| Contact Form | 1NO |
| Contact Rating | 10A @ 600V AC, AC15 - D. |
| Country of Origin | France |
| Current Rating | 2 A |
| Current Rating (Amps) | 6A (AC), 550mA (DC) |
| Current Stock | 197 |
| Depth | 70 mm |
| Depth Behind Flange | - |
| Description | HARMONY XB5, SELECTOR S. |
| Detailed Description | Selector Switch 2 Posit. |
| Digi-Key Part Number | 4008-XB5AJ21-ND |
| Electrical Life | 1,000,000 Cycles |
| Enclosure | NEMA 13-NEMA 4X |
| Environmental Conditions | WATER TIGHT, DUST TIGHT. |
| Family Name | Harmony XB4 / XB5 Family |
| Features | - |
| Height | 48 mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (N. | - |
| Ingress Protection | IP67/IP69/IP69K - Dust . |
| Insulation | 600 V 3)EN 60947-1 |
| International Shipping | No |
| Item | Non-Illuminated Selecto. |
| Item Type | Selector switch |
| Key Removal | No Key |
| Lead Time | Expected to ship in 1-2. |
| Made in USA | No |
| Manufacturer | Schneider Electric |
| Manufacturer Product Nu. | XB5AJ21 |
| Manufacturer Standard L. | 5 Weeks |
| Material | Dark grey plastic |
| Mechanical Life | 1,000,000 Cycles |
| Mfr | Schneider Electric |
| Mounting Diameter | 22 mm |
| Mounting Type | Panel Mount |
| Mpn | XB5AJ21 |
| NEMA Contact Rating Des. | B600/Q600 |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| Number of Positions | 2 |
| Operating Temperature | -40-70 A Degrees C, -40. |
| Operator Head Material | Polyamide |
| Package | Box |
| Panel Cutout Dimensions | Circular - 22.00mm Dia |
| Position | 2 |
| Product Status | Active |
| Series | Harmony XB5, Harmony XB. |
| Size | 22 mm, 2.76 |
| SKU | ZO-G2013496 |
| Special Features | PLASTIC,SELECTOR SWITCH |
| Standard | 1000000 CYCLES, AC-15, . |
| Standards | CE Marked, CSA Certifie. |
| Sub Brand | XB5 |
| SubCategory | Electrical |
| Switch Function | Maintained, Off-On |
| Switch Operation @ Posi. | O |
| Switch Operation @ Posi. | X |
| Switch Operation @ Posi. | No Third Position |
| Termination Style | Screw Terminal |
| Type | Standard |
| Type of Operator | Extended Lever |
| UPC | 785901383734 |
| UPC Code | 785901383734 |
| Voltage Rating | 230 V |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
| Warranty Description | Contractual Warranty:18. |
| Width | 30 mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| RS Delivers | 123-8154 | 25.428 | 1 | 60 | | Schneider Electric | | 25.428 @ 1 |
 | mostelectric.com | XB5AJ21 | 34.15 | 1 | In Stock | | SQUARE D/TELEMECANIQUE | | 34.15 @ 1 |
| us.rs-online.com | 70337151 | 42.65 | 1 | 3 | | Schneider Electric | | 42.65 @ 1 |
 | Zoro | G2013496 | 45.49 | 1 | 225 | | Schneider Electric | 0.08 | 45.49 @ 1 |
| Newark | 80C6572 | 48.72 | 1 | In Stock | | SCHNEIDER ELECTRIC | | 48.72 @ 1 |
 | Digi-Key | 16614386 | 52.71 | 1 | In Stock | | Schneider Electric | | 52.71 @ 1 |
| Future Electronics | 8028419 | 55.968 | 5 | In Stock | | Schneider Electric | | 55.968 @ 5 |
 | sustainablesupply.com | C1183799 | 56.95 | 1 | In Stock | | Schneider Electric | 0.08 | 56.95 @ 1 |
 | simsupply.com | ZO-G2013496 | 59.8 | 1 | 197 | | Schneider Electric | | 59.8 @ 1 |
 | crescentelectric.com | 122322 | 63.81 | 1 | In Stock | | Schneider Electric | | 63.81 @ 1 |
 | Raptor Supplies | AH2QHD | 76.4155665 | 1 | In Stock | | SCHNEIDER ELECTRIC | | 76.4155665 @ 1 |
