Square D by Schneider Electric XB5AVB4

B00CONDLWU

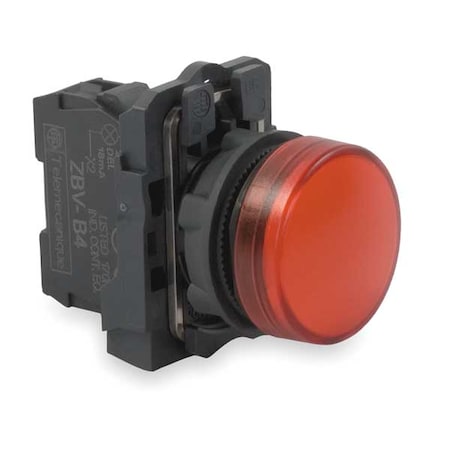

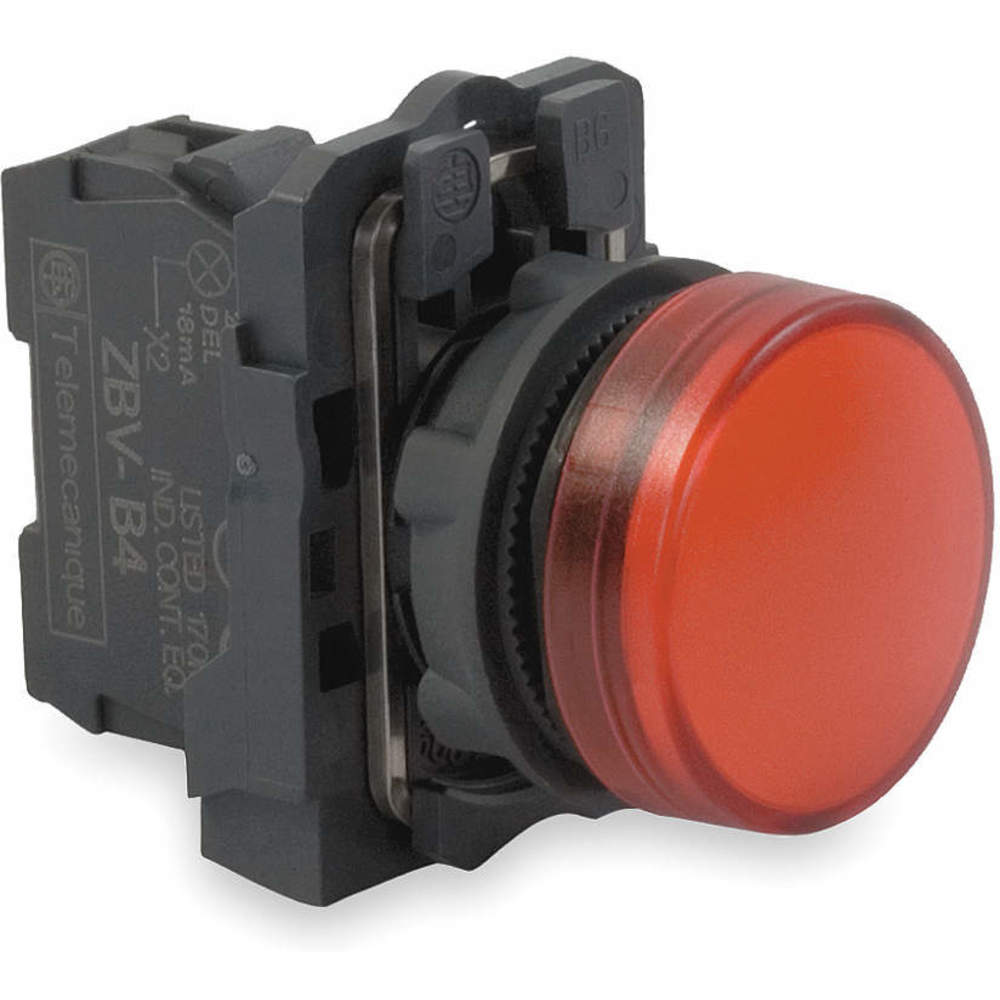

Square D by Schneider Electric XB5AVB4 Schneider Electric/Square D XB5AVB4 LED Pilot Light 22mm 24 Volt

Square D by Schneider Electric XB5AVB4 Schneider Electric/Square D XB5AVB4 LED Pilot Light 22mm 24 Voltzoom

Attributes

Key Value
Amperage Rating18
ApplicationSIGNALLING
ApprovalsCSA, UL
Average Life100000 hr
Basic MaterialPlastic
BezelDark Grey Plastic
Body MaterialPlastic
BrandSCHNEIDER ELECTRIC
Catalog NumberXB5AVB4
CategoryOptoelectronics
Colorred
Color Familyred
Colourred
ConnectionScrew clamp terminals,
Contact Form(X1-X2)PL
Country of OriginFR - France, France
Current18mA
DescriptionHARMONY XB5, PILOT LIGH.
Detailed DescriptionLED Panel Indicator 24V.
Digi-Key Part Number4008-XB5AVB4-ND
ECCNEAR99
Environmental ConditionsNEMA 4/4X/13
Family NameHarmony XB4 / XB5 Family
Family SeriesSquare D Switches, Harm.
Features-
FinishBLACK PLASTIC
Gross Weight0.055 lbs
Height42 mm
IlluminationZBVB, Illuminated
Illumination Colorred
IncludesLight Module and Head, .
Ingress ProtectionIP66, IP67, IP69, IP69K.
IP ratingIP66
IP Rating66, IP66
ItemPilot Light Complete
Item NumberXB5AVB4
Item TypePilot light
Kind of indicatorflat
Lamp Color-
Lamp colourred
Lamp Module TypeFull Voltage
Lamp TypeLed
Length54 mm
Lens Colorred
Lens Shapeflat
Lens Size30.00mm Dia
Lens StyleRound with Convex Top
Lens Transparency-
Lens/Button Colorred
Made in USANo
ManufacturerSquare D, SCHNEIDER ELE.
Manufacturer Part Number526248
Manufacturer Product Nu.XB5AVB4
Manufacturer seriesHarmony XB5
Manufacturer Standard L.3 Weeks
MfrSCHNEIDER ELECTRIC
Millicandela Rating-
MountingPanel Mount
Mounting hole diameter?22mm
Mounting Hole Size0.87 in ; 22 mm
NEMA Rating13, 4, 4X, NEMA 4X, NEM.
Net Weight0.055 lbs
Nominal Mounting Size22 mm
Operating temperature-25...70?C
Operating Temperature-40-70 A Degrees C
Operator Size (mm)22 mm
PackageBox
Panel Cutout Dimensions0.87" (22.00mm)
Panel Cutout ShapeRound
Product SeriesHarmony XB5
Product StatusActive
RatingsAC/DC
SeriesHarmony XB5, Harmony XB.
ShapeRound
Size22 mm, 2.13
Special FeaturesIP67-IP66 CONFORMING TO.
StandardUL LISTED, CSA, CE
StandardsUL E164353 CCN NKCR - C.
Sub BrandXB5
Supply Voltage24 VAC/VDC
Switch standard22mm
Terminal ConnectionScrew Clamp
Terminal TypeScrew
TerminationScrew
Termination StyleScrew Terminal
TypeNon-Relampable, Steady .
Type of indicatorcontrol lamp
UNSPSC39121534
UPC785901384007
UPC Code785901384007
Viewing Angle-
Voltage24V, 24V AC
Voltage Rating24 V AC/DC 50/60 Hz
Warranty DescriptionContractual Warranty:18.
Wavelength - Peak-
Width30 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEXB5AVB413.39170SCHNEIDER ELECTRIC13.39 @ 1
thumbzoomkempstoncontrols.co.ukXB5AVB419.5983191In StockSchneider19.598319 @ 1
RS Delivers609-625920.4481In StockSchneider Electric20.448 @ 1
thumbzoomZoroG076855548.05139Schneider Electric0.0648.05 @ 1
thumbzoommostelectric.comXB5AVB448.211In StockSQUARE D/TELEMECANIQUE48.21 @ 1
thumbzoomNewark66AH764150.4114SCHNEIDER ELECTRIC50.41 @ 1
standardelectricsupply.com62274157.031In StockSchneider Electric57.03 @ 1
us.rs-online.com7000868658.4114Schneider Electric58.41 @ 1
thumbzoomblackhawksupply.comXB5AVB467.381In StockSquare D67.38 @ 1
thumbzoomGalcoXB5AVB4-SQD69.311In StockSquare D0.05569.31 @ 1
thumbzoomDigi-Key1661421169.9912Schneider Electric69.99 @ 1
Future Electronics802842079.025In StockSchneider Electric79.02 @ 5
Graybar9953454180.641In StockSquare D (Schneider Electric)80.64 @ 1
grainger.caTLQXB5AVB482.908819381In StockSCHNEIDER ELECTRIC0.0682.90881938 @ 1
thumbzoomNational Supply Network5765489988.681In StockSchneider Electric88.68 @ 1
thumbzoomcrescentelectric.com14590790.0916Schneider Electric90.09 @ 1
thumbzoomRaptor SuppliesAF9JZY119.3776741In StockSCHNEIDER ELECTRIC119.377674 @ 1
