Schneider Electric XB5AW35B5

B008KM7UXK

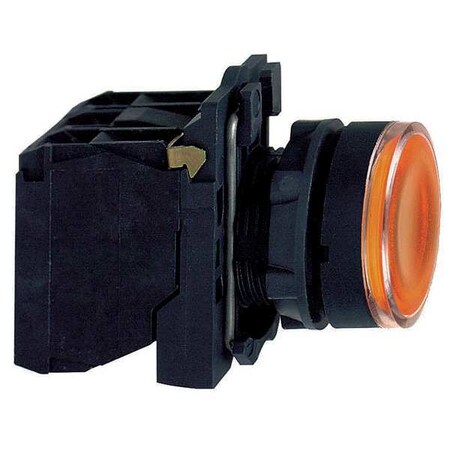

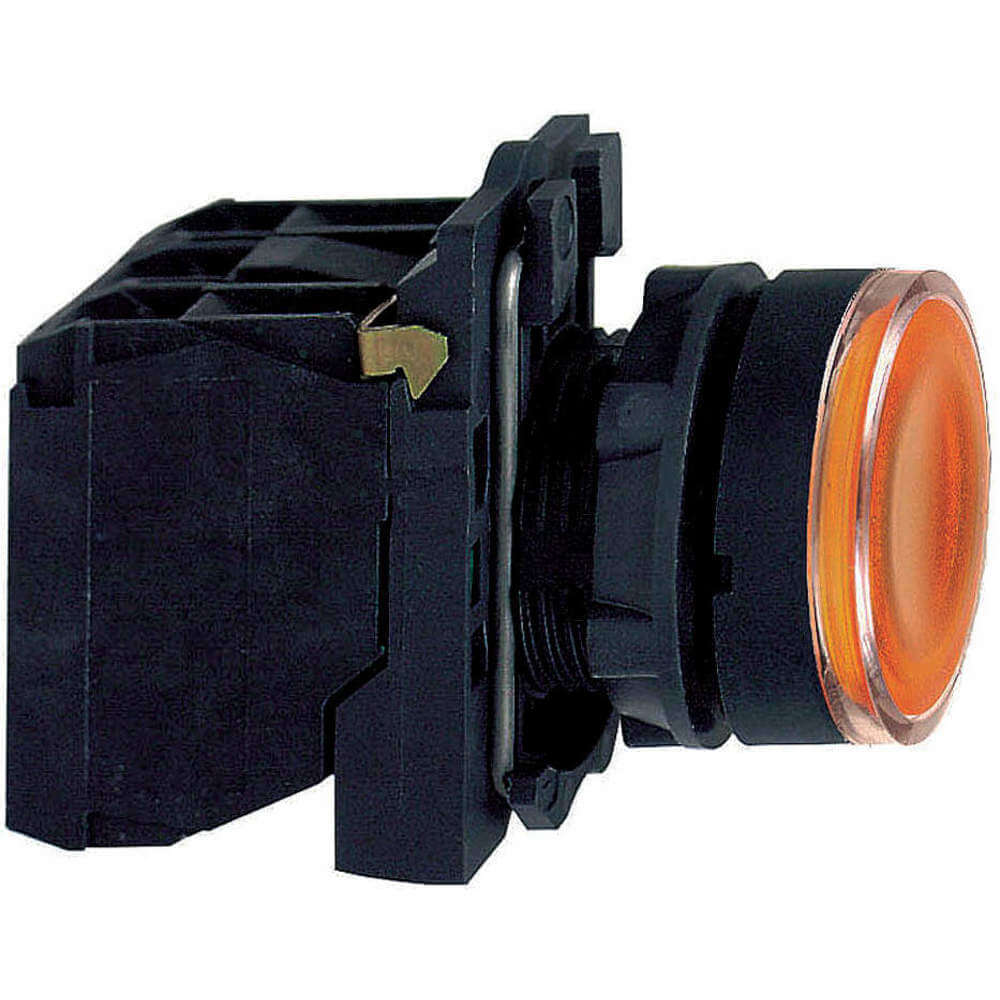

SCHNEIDER ELECTRIC XB5AW35B5 Pushbutton Led 24V 22mm X B5b +Options

SCHNEIDER ELECTRIC XB5AW35B5 Pushbutton Led 24V 22mm X B5b +Optionszoom

Attributes

Key Value
ActionSlow-break, Maintained .
ActuationSpring Return
ActuatorRound, spring return;Or.
Actuator TypeRound, Button, Flush
Alternate Part No.996-XB5AW35B5
Basic MaterialPlastic
BezelDouble-Insulated Plastic
Bezel Materialdark grey plastic
Body MaterialPlastic
Body ShapeRound
BrandSchneider Electric
Cap ColourOrange
Catalog NumberXB5AW35B5
CategorySwitches
CircuitDPST-NO/NC
ColorBlack, Yellow
Color - Actuator/CapOrange
Color FamilyYellow
ConnectionScrew clamp terminals,
Contact Configuration1 NO + 1 NC
Contact FormSPST, 1NO/1NC
Contact PlatingSilver Alloy
Contact Rating10A @ 600V AC, AC15 - D.
Country of OriginFR - France, France
Current Rating (Amps)6A (AC), 550mA (DC)
Depth57 mm
DescriptionHARMONY XB5, ILLUMINATE.
Detailed DescriptionPushbutton Switch DPST-.
Digi-Key Part Number4008-XB5AW35B5-ND
ECCNEAR99
Electrical Life1,000,000 Cycles
EnclosureNEMA 13-NEMA 4X
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Family NameHarmony XB4 / XB5 Family
Features-, Spring return, flush
GTIN00785901384663, 0338911.
Head MaterialPlastic
Height42 mm
Housing MaterialPlastic
IlluminationLed
Illumination ColourOrange
Illumination Type, ColorLED, Orange
Illumination Voltage (N.24 VDC
IndicatorINTEGRAL LED,PROTECTED .
Ingress ProtectionIP66/IP67/IP69/IP69K - .
Insulation600 V 3)EN/IEC 60947-1
ItemIlluminated Pushbutton
Item TypeIlluminated push-button
Lamp Module TypeFull Voltage
Lamp TypeLed
Lamp Voltage24V AC/V DC
Length56.5 mm
Lens MaterialPlastic
Made in USANo
ManufacturerSchneider Electric
Manufacturer Part No.XB5AW35B5
Manufacturer Product Nu.XB5AW35B5
Manufacturer Standard L.5 Weeks
Materialdark grey plastic, Plas.
Mechanical Life10,000,000 Cycles
MfrSchneider Electric
Mounting Diameter22 mm
Mounting HoleRound
Mounting Hole Diameter22 mm
Mounting StylePanel
Mounting TypePanel Mount, Front, Flu.
NEMA Rating13, 4, 4X, 4X, 13
Operating Temperature-40-70 A Degrees C, -40.
PackageBox
Panel Cutout DimensionsCircular - 22.00mm Dia
ProductStandard Switches
Product CategoryIlluminated Pushbutton .
Product StatusActive
SeriesHarmony XB5, X5B, Harmo.
ShapeRound
Size22 mm, 2.24
Special FeaturesWITH PLAIN LENS
Standard1000000 CYCLES, AC-15, .
Sub BrandXB5
Switch FunctionOn-Off, Off-On
Terminal ConnectionScrew Clamp
Termination StyleScrew, Screw Terminal
TypeStandard, Illuminated
Type of OperatorFlush Button
UNSPSC39122216
UPC785901384663
UPC Code785901384663
Voltage24V AC/V DC
Voltage Rating24 V AC/DC 50/60 Hz
Voltage Rating - AC120 V
Voltage Rating - DC125 V
Voltage Rating AC24 V
Voltage Rating DC24 V
Warranty DescriptionContractual Warranty:18.
Width30 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEXB5AW35B524.96119SCHNEIDER ELECTRIC24.96 @ 1
thumbzoomkempstoncontrols.co.ukXB5AW35B536.68260051In StockSchneider36.6826005 @ 1
RS Delivers178-68937.932132Schneider Electric37.932 @ 1
thumbzoommostelectric.comXB5AW35B579.6816SQUARE D/TELEMECANIQUE79.68 @ 1
thumbzoomZoroG612118486.2516Schneider Electric0.1286.25 @ 1
thumbzoomNewark80C6619103.841In StockSCHNEIDER ELECTRIC103.84 @ 1
thumbzoomDigi-Key16613113116.9212Schneider Electric116.92 @ 1
thumbzoomAmazonB000WL4VZC117.021In StockSchneider Electric117.02 @ 1
Future Electronics2028422130.6085In StockSchneider Electric130.608 @ 5
thumbzoomsustainablesupply.comC1170711146.261In StockSchneider Electric0.12146.26 @ 1
thumbzoomcrescentelectric.com156665148.911In StockSchneider Electric148.91 @ 1
Graybar22037908159.68961In StockSquare D (Schneider Electric)159.6896 @ 1
us.rs-online.com70337197159.841In StockSchneider Electric159.84 @ 1
thumbzoomswatee.comXB5AW35B5173.6911Schneider Electric173.69 @ 1
thumbzoomRaptor SuppliesAF7HBH189.55842751In StockSCHNEIDER ELECTRIC189.5584275 @ 1
