B001ZRZS2W

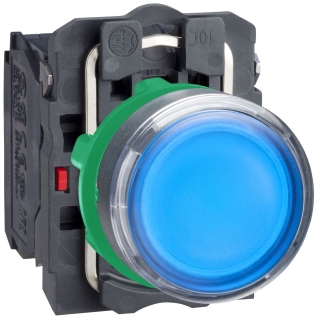

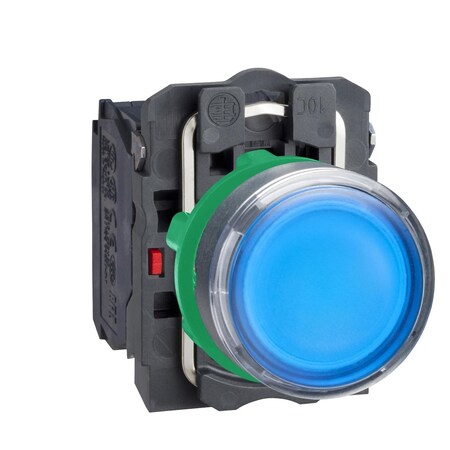

?22Mm Plastic Spring Return Button Light Blue Na+Nf 24Vca/Dc Xb5Aw36B5, Schneider Electric

Attributes

Key Value
ActionSlow-break
ActuationSpring Return
Actuatorspring return;Blue flus.
Actuator colourblue
Alternate Mfr Part Numb.450600DP10ACAN10
Alternate Part No.996-XB5AW36B5
Bezel/HousingPlastic Bezel
Body ShapeRound
BrandSCHNEIDER ELECTRIC
Button markingblank
Button shapeflat
Cap Colourblue
Catalog NumberXB5AW36B5
Colorblue, Black
Color Familyblue
ConnectionScrew clamp terminals,
Contact Configuration1NC-1NO, 1NO-1NC, 1 NO .
Contact FormSPST
Contact PlatingSilver Alloy
Contact RatingAC15 - DC13, 6 A at 120.
Contact typeSlow Break
Contacts configurationNC + NO
Country of OriginFR - France, France
Country of Origin (subj.France
ECCNEAR99
EnclosureNEMA 13-NEMA 4X
Enclosure TypeNEMA 4/4X/13/IP66/IP67/.
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Family NameHarmony XB4 / XB5 Family
FeaturesSpring return, flush
Height42 mm
Housing MaterialPlastic
IlluminationLED
Illumination Colourblue
Illumination voltage24V
IndicatorINTEGRAL LED,PROTECTED .
Insulation600 V 3)EN/IEC 60947-1
IP ratingIP66
ItemPushbutton Led 24V 22MM.
Item TypeIlluminated push-button
Lamp TypeIntegral LED
Length56.5 mm
Made in USANo
ManufacturerSCHNEIDER ELECTRIC
Manufacturer Part No.XB5AW36B5
Manufacturer seriesHarmony XB5
MaterialDark grey plastic, Plas.
Mounting HoleRound
Mounting Hole Diameter22 mm
Mounting hole diameter?22mm
Mounting StylePanel
Mounting typePanel
Mounting TypeFlush
NEMA Rating4X, 13
Number of positions2
Operating temperature-40...70?C
Operating Temperature-40-70 A Degrees C
Operator TypeSpring Return
ProductStandard Switches
Product CategoryIlluminated Pushbutton .
SeriesXB5, X5B, Harmony XB5 S.
Size22, 22 mm
Special FeaturesWITH PLAIN LENS
Stable positions number1
Standard1000000 CYCLES, AC-15, .
Sub BrandXB5
Switch standard22mm
Switches featureswitout symbol
Terminal TypeScrew Clamp, Screw/Clamp
Termination StyleScrew
TypeCorrosion-Resistant Dus.
Type of switchpush-button
UNSPSC39122216
UPC785901384779
UPC Code785901384779
Voltage Rating24 V AC/DC 50/60 Hz
Voltage Rating AC24 V
Voltage Rating DC24 V
Warranty DescriptionContractual Warranty:18.
Width30 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEXB5AW36B526.312SCHNEIDER ELECTRIC26.3 @ 1
RS Delivers178-66737.896141Schneider Electric37.896 @ 1
thumbzoomkempstoncontrols.co.ukXB5AW36B538.0345941In StockSchneider38.034594 @ 1
thumbzoomNewark66AH766475.0123SCHNEIDER ELECTRIC75.0 @ 1
thumbzoomZoroG765587575.01In Stock15Schneider Electric2.075.0 @ 1
thumbzoommostelectric.comXB5AW36B579.681In StockSQUARE D/TELEMECANIQUE79.68 @ 1
thumbzoomstandardelectricsupply.com224635194.261In StockSquare D (Schneider Electric)94.26 @ 1
thumbzoomgordonelectricsupply.comXB5AW36B5104.091In Stock10SQUARE D104.09 @ 1
Graybar22037909112.01In StockSquare D (Schneider Electric)112.0 @ 1
Digi-Key16612844123.01In Stockschneider-electric123.0 @ 1
us.rs-online.com70380034141.66126Schneider Electric141.66 @ 1
thumbzoomcrescentelectric.com257185148.91128Schneider Electric148.91 @ 1
thumbzoomNational Supply Network69671683180.021In StockSchneider Electric180.02 @ 1
AmazonTPB001ZRZS2W180.131In Stock2SCHNEIDER ELECTRIC180.13 @ 1
thumbzoomswatee.comXB5AW36B5237.1313Schneider Electric237.13 @ 1
