Schneider Electric XB5EVG5

B07FQ6WKT5

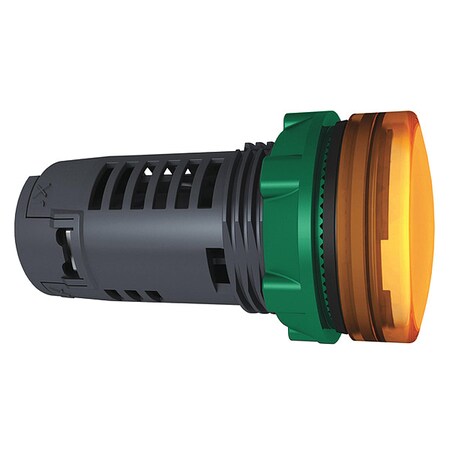

SCHNEIDER ELECTRIC XB5EVG5 LED Panel Mount Indicator, Round, Orange, 120 VAC, 22 mm, IP66, IK05, NEMA 4X, NEMA 13

SCHNEIDER ELECTRIC XB5EVG5 LED Panel Mount Indicator, Round, Orange, 120 VAC, 22 mm, IP66, IK05, NEMA 4X, NEMA 13zoom

Attributes

Key Value
Average Life100,000 hr
Basic MaterialPlastic
BezelDark Grey Plastic
BrandSchneider Electric
Bulb TypeLED
Catalog NumberXB5EVG5
CategoryOptoelectronics
ColorOrange
ConfigurationMonolithic
ConnectionScrew clamp terminals,
Contact Form(X1-X2)PL
Country of OriginID - Indonesia, Indones.
Current14mA
Current Drawn14 mA
Current Rating14 mA
DescriptionHARMONY XB5, MONOLITHIC.
Detailed DescriptionLED Panel Indicator 110.
Digi-Key Part Number4008-XB5EVG5-ND
ECCNEAR99
Electrical ConnectionTerminal Clamps
EnclosureNEMA 13-NEMA 4X
Family NameHarmony XB4 / XB5 Family
Features-
Height29 mm
Ingress ProtectionIP66, IP67, IP69, IP69K.
Insulation250 V 3)EN 60947-1
IP RatingIP66, 66, 67, 69, 69K
ItemPilot Light
Item TypePilot Light
Lamp Color-
Lamp TypeLED
Length54 mm
Lens ColorOrange
Lens Size29.00mm Dia
Lens StyleRound with Flat Top
Lens Transparency-
Life100000 hrs.
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.XB5EVG5
Manufacturer Standard L.1 Weeks
MaterialDark Grey Plastic
Material of ConstructionPlastic
MfrSchneider Electric
Millicandela Rating-
NEMA Rating13, 4X
Operating Temperature-25-70 A Degrees C
PackageBox
Package Quantity1
Panel Cutout Dimensions0.87" (22.00mm)
Panel Cutout ShapeRound
Panel Thickness0.030 in to 0.24 in
Product StatusActive
Product TypePilot Light
RatingsAC
SeriesHarmony XB5, Harmony XB.
ShapeRound
Size22mm, 2.13
Special FeaturesWITH PLAIN LENS
Standard5 GN 12-500 HZ)IEC 6006.
StandardsCSA, EN/IEC, EN/IEC , J.
Sub BrandXB5
Supply Voltage120 V
Terminal ConnectionScrew Clamp terminals
Termination StyleScrew Terminal
TypeSteady Signal, LED
UNSPSC39122216
UPC785901506560
UPC Code785901506560
Viewing Angle-
Voltage110 to 120V AC, 110V ~ .
Voltage Rating110 to 120 V, 110...120.
Warranty DescriptionContractual Warranty:18.
Wavelength - Peak-
Width29 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG354703217.491In StockSchneider Electric0.0517.49 @ 1
thumbzoomgordonelectricsupply.comXB5EVG520.491In Stock10SQUARE D20.49 @ 1
thumbzoomDigi-Key1660575724.7618Schneider Electric24.76 @ 1
thumbzoomNewark94Y536625.9810In StockSCHNEIDER ELECTRIC25.98 @ 10
thumbzoomRadwellXB5EVG526.010In StockSCHNEIDER ELECTRIC SQUARE D26.0 @ 10
RS Delivers875-293628.56168Schneider Electric28.56 @ 1
thumbzoomcrescentelectric.com125212229.291In StockSchneider Electric29.29 @ 1
AmazonSCB07FQ6WKT535.631In StockSchneider Electric35.63 @ 1
us.rs-online.com7091227435.6916Schneider Electric35.69 @ 1
Graybar2584970138.05761In StockSquare D (Schneider Electric)38.0576 @ 1
standardelectricsupply.com2393419185.41In StockSchneider Electric185.4 @ 1
