XB7EV05GP

mpnXB7EV05GP
brandname: Schneider Electric
manufacturername: Schneider Electric

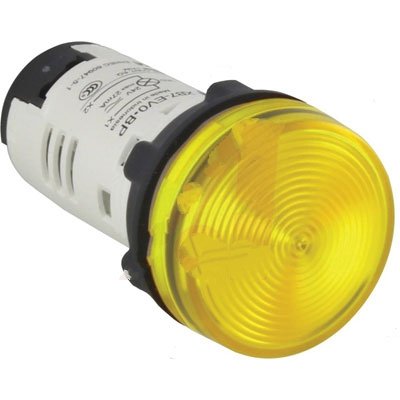

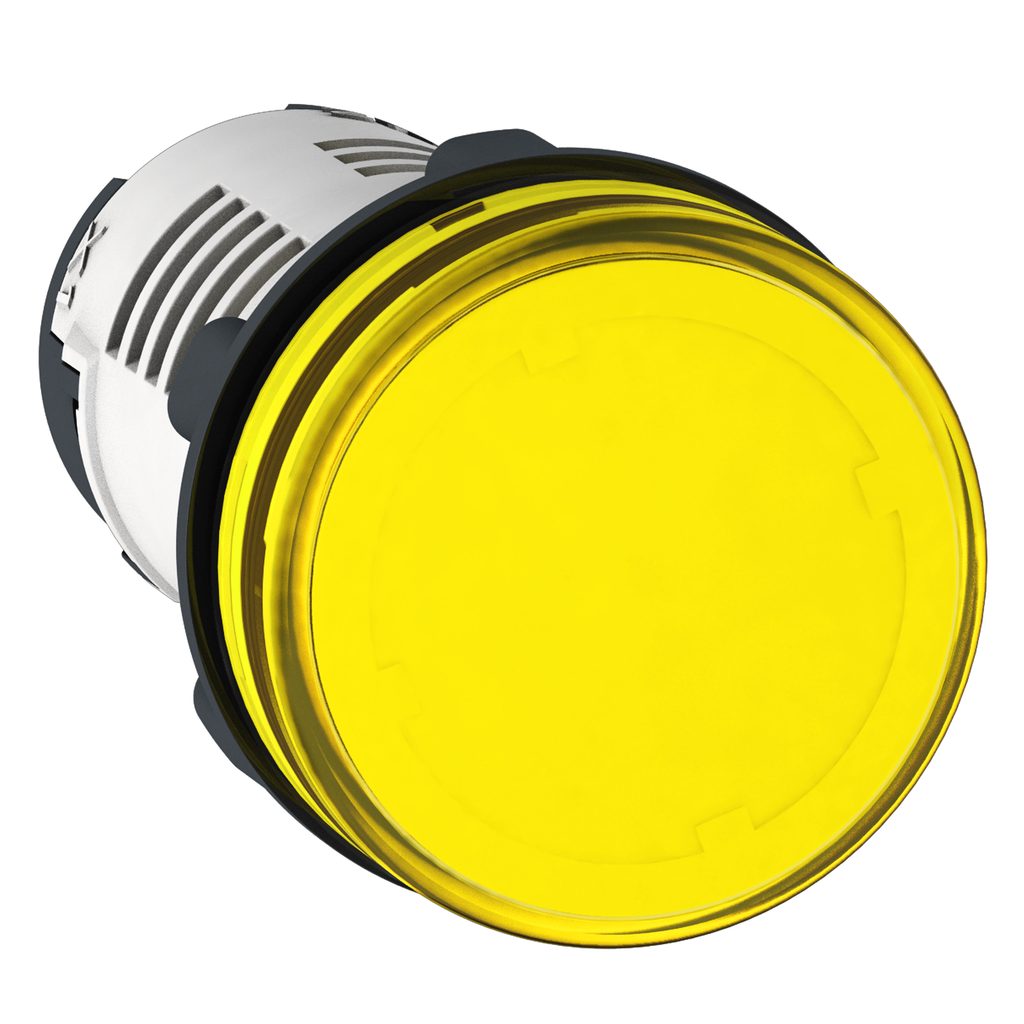

Schneider Electric XB7EV05GP , Indicator, Pilot Light, 22mm mnt, Integrated LED, Yellow, 120VAC

PartNumber: XB7EV05GP
Model: XB7EV05GP
PackageQuantity: 1
Manufacturer: Schneider Electric
Label: Schneider Electric

Attributes

Key	Value
[Ui] Rated Insulation V.	250 V 3)EN/IEC 60947-1
[Uimp] Rated Impulse Wi.	6 kV EN/IEC 60947-1
[Us] Rated Supply Volta.	120 V AC 50/60 Hz
Ambient Air Temperature.	-25-70 ?C
Ambient Air Temperature.	-40-70 ?C
Average Life	70000 hr
Base Type	integral LED
Bezel/Housing	Plastic
Brand	SCHNEIDER ELECTRIC
Bulb Base	integral LED
California Proposition .	Lead and lead compounds.
Cap/Operator Or Lens Co.	yellow
Catalog Number	XB7EV05GP
China Rohs Regulation	X
Circularity Profile	ENVEOLI1805012EN
Color	yellow
Color Family	yellow
Connection	Screw clamp terminals,
Contact Form	(X1-X2)PL
Country of Origin	ID - Indonesia, Indones.
Current Consumption	18...21 mA
Current Rating	21 mA
Depth	54 mm
Device Mounting	fixing hole 22.5 mm 22..
Device Presentation	monolithic product
Device Short Name	XB7
ECCN	EAR99
Electromagnetic Compati.	disturbing field emissi.
Enclosure	NEMA 4 UL 50 E-NEMA 12 .
Enclosure Type	NEMA 3/4/12/IP54/IP65, .
Environmental Conditions	-13 to 158 deg F Operat.
Environmental Disclosure	ENVPEP1805012EN
Eu Rohs Directive	Pro-active compliance (.
Fixing Center	>= 30 x 40 mm support p.
Fixing Mode	fixing nut beneath head.
Height	29 mm
Hz	50/60 Hz
IEC Rating	EN/IEC 60947-1; EN/IEC
Illumination	LED, Illuminated
Illumination Color	yellow
Illumination voltage	120V
Indicator	LED,INTEGRAL LED,YELLOW
Insulation	250 V 3)EN/IEC 60947-1
Ip Degree Of Protection	IP20 IEC 60529 rear fac.
IP rating	IP65
IP Rating	IP20 ; IP65, IP20/IP65
Item	Pilot Light Led,120V,Ye.
Item Type	pilot light
Kind of indicator	flat
Lamp colour	yellow
Lamp Type	LED, A22 LED, LED
LED Lamp Voltage	120 VAC
Length	54 mm
Lens Color	yellow
Lens Type	Plain
Light Source	LED
Made in USA	No
Manufacturer	SCHNEIDER ELECTRIC
Manufacturer series	Harmony XB7
Mercury Free	Yes
Mounting	Mounting Holes
Mounting Diameter	22 mm
Mounting hole diameter	?22mm
Mounting Hole Size	0.87 in ; 22 mm
Mounting type	Panel
Nema Degree Of Protecti.	NEMA 4 UL 50 E \|\| NEMA .
NEMA Rating	4, 12
Net Weight	0.02 kg
Operating temperature	-25...70?C
Operating Temperature	-25-70 A Degrees C
Operator Shape	round
Overvoltage Category	class II IEC 60536
Product Or Component Ty.	pilot light
Protective Treatment	TH
Range Of Product	Harmony XB7
Reach Free Of Svhc	Yes
Reach Regulation	Free of Substances of V.
Rohs Exemption Informat.	Yes
Sale Per Indivisible Qu.	10
Series	XB7, Harmony XB7 Series
Service Life	70000 h at rated voltag.
Shape	round
Shape Of Screw Head	cross JIS No 1 \|\| cross.
Shape Of Signaling Unit.	round
Shock Resistance	50 gn 11 ms) half sine .
Signalling Type	steady
Size	22, 22/29/54 mm, 2.13
Special Features	pilot light
Standard	5 GN 2-500 HZ)IEC 60068.
Standards	UL 508 \|\| JIS C8201-5-1.
Style	Integral
Sub Brand	XB7
Supply Voltage	120 VAC
Supply Voltage Limits	100-132 V AC
Sustainable Offer Status	Green Premium product
Switch standard	22mm
Terminal Connection	Screw Clamp terminals
Terminal Type	Screw Clamp, Screw Clam.
Terminals Description I.	(X1-X2)PL
Termination	Screw
Tightening Torque	0.8-1.2 N.m EN 60947-1
Toxic Heavy Metal Free	Yes
Type	Direct Monolithic, Stea.
Type of indicator	control lamp
UNSPSC	39122216
UPC	785901860648
UPC Code	785901860648
Use With	integral LED
Vibration Resistance	5 gn 2-500 Hz)IEC 60068.
Voltage	120V AC
Voltage Rating	120 V, 120, 120 VAC, 12.
Warranty	18 months
Warranty Description	Contractual Warranty:18.
Weee	The product must be dis.
Width	29 mm

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
TME	XB7EV05GP	6.74	1	12		SCHNEIDER ELECTRIC		6.74 @ 1
mayerelectric.com	SQDXB7EV05GP	34.17	1	In Stock		SQUARE D	0.044	34.17 @ 1
Radwell	XB7EV05GP	38.0	10	In Stock		SCHNEIDER ELECTRIC TELEMECANIQUE		38.0 @ 10
Newark	47W8612	38.66	10	In Stock		SCHNEIDER ELECTRIC		38.66 @ 10
Graybar	25467334	38.7296	1	In Stock		Square D (Schneider Electric)		38.7296 @ 1
Digi-Key	16612695	40.49	1	In Stock		schneider-electric		40.49 @ 1
crescentelectric.com	157671	43.58	1	4		Schneider Electric		43.58 @ 1
us.rs-online.com	70273325	49.84	1	7		Schneider Electric		49.84 @ 1
standardelectricsupply.com	2292698	285.1	1	In Stock		Square D (Schneider Electric)		285.1 @ 1
gordonelectricsupply.com	XB7EV05GP	314.9	1	In Stock	10	SQUARE D		314.9 @ 1
Zoro	G1012731	352.5	1	In Stock		Schneider Electric	0.05	352.5 @ 1
