Square D ZB4BA232

B00CONKHTK

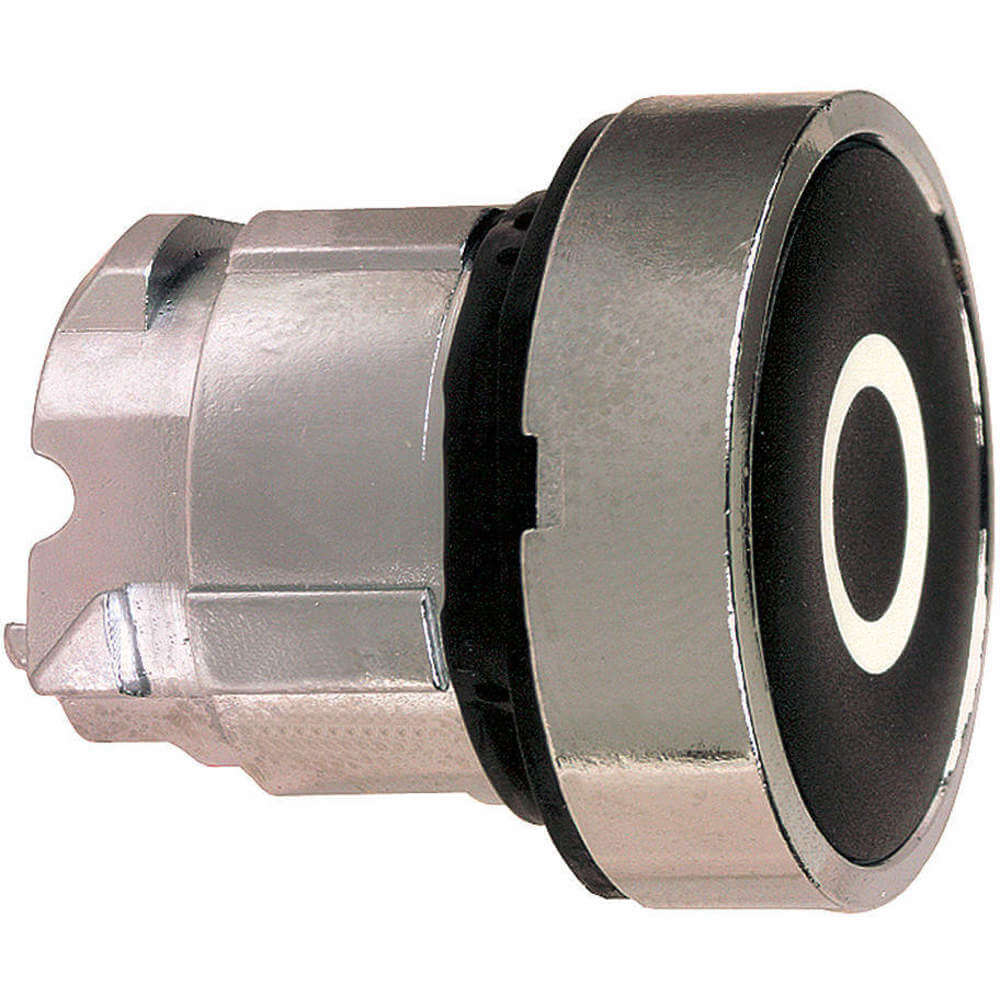

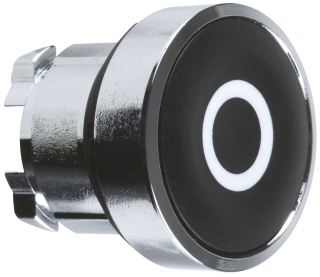

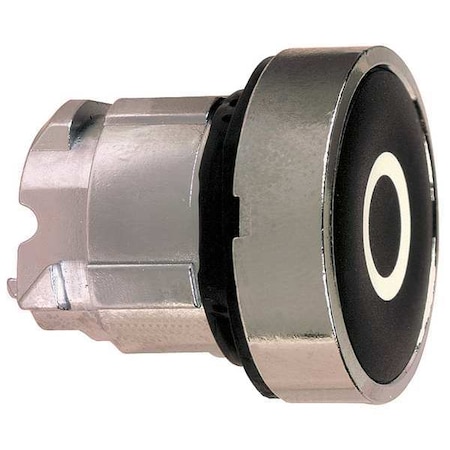

Square D Zb4Ba232 Blk O Fl Pb Operator

Square D Zb4Ba232 Blk O Fl Pb Operatorzoom

Attributes

Key Value
(Select First, Then App.Schneider, Harmony XB4
ActionSpring Return, Momentar.
Actuatorspring return;Black flu.
Actuator colourblack
Actuator TypePushbutton, Round
Applicationpush-button
Basic MaterialMetal
Bezel MaterialChrome Die Cast Aluminum
BrandSCHNEIDER ELECTRIC
Button markingO
Button shapeflat
Cad Overall Depth28 mm
Cad Overall Height29 mm
Cad Overall Width29 mm
Catalog NumberZB4BA232
CategorySwitches
Colorblack
Country of OriginFR - France, France
Device Presentationbasic element
ECCNEAR99
EnclosureNEMA 13-NEMA 4X
Environmental ConditionsIP 65
Family NameHarmony XB4 Family
For Use WithHarmony XB4 Family
GTIN03389110887655
Head MaterialAluminum-Zinc Alloy
Illuminationnone, Non-Illuminated
Indicatorblack
IP Rating66
IP ratingIP66
ItemPush Button operator
Item Typehead for non-illuminate.
LegendO
Legend/Background ColorWhite/Black
Made in USANo
ManufacturerSCHNEIDER ELECTRIC
Manufacturer seriesHarmony XB4
MaterialChromium plated metal
MfrSCHNEIDER ELECTRIC
Mounting Diameter22 mm
Mounting hole diameter?22mm
Mounting Hole Size22
NEMA Rating1, 13, 2, 3, 4, 4X
Number of Operators1
Number of positions2
Operating temperature-25...70?C
Operating Temperature-40-70 A Degrees C
Operator Profileblack flush, O white)
PackageBox
Panel Cutout Dimensions22mm (Round)
Primary TypeSelector
Product CertificationsBV || GL || LROS (Lloyd.
Product Or Component Ty.head for non-illuminate.
Product StatusActive
Product TypePush Button operator
Related itemsZB4BZ009,
RequiresContact Block(s)
SeriesHarmony XB4, ZB4 Series.
Shock Resistance30 gn 18 ms) half sine .
Size22 mm, 0.87
Special FeaturesCHROMIUM PLATED METAL,H.
Stable positions number1
Standard30 GN 18 MS) HALF SINE .
StandardsCE, CSA C22-2 n Degrees.
Sub BrandZB4
Switch standard22mm
Switches featureswith symbol
TerminationScrew
TypeMomentary
Type of OperatorFlush Button
Type of switchpush-button
UNSPSC39122216
UPC785901381679
UPC Code785901381679
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEZB4BA2328.62113SCHNEIDER ELECTRIC8.62 @ 1
RS Delivers815-415211.3161In StockSchneider Electric11.316 @ 1
thumbzoommostelectric.comZB4BA23212.351In StockSQUARE D/TELEMECANIQUE12.35 @ 1
thumbzoomZoroG972064513.791In StockSchneider Electric0.0613.79 @ 1
thumbzoomgordonelectricsupply.comZB4BA23216.291In Stock10SQUARE D16.29 @ 1
us.rs-online.com7033668918.31In StockSchneider Electric18.3 @ 1
Graybar9949595020.8321In StockSquare D (Schneider Electric)20.832 @ 1
Digi-Key1661352220.931In Stock26Schneider Electric20.93 @ 1
thumbzoomcrescentelectric.com55360921.691In StockSchneider Electric21.69 @ 1
Newark80C812621.791In StockSCHNEIDER ELECTRIC21.79 @ 1
thumbzoomsustainablesupply.comC117068922.531In StockSchneider Electric0.0622.53 @ 1
thumbzoomRaptor SuppliesAF7GZH30.0343681In StockSCHNEIDER ELECTRIC30.034368 @ 1
