CAI - SCHNEIDER ELECTRIC ZB4BD28

B07GT26VM8

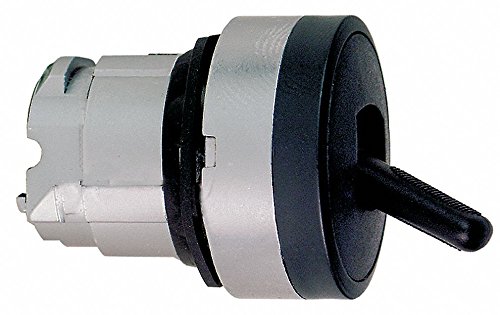

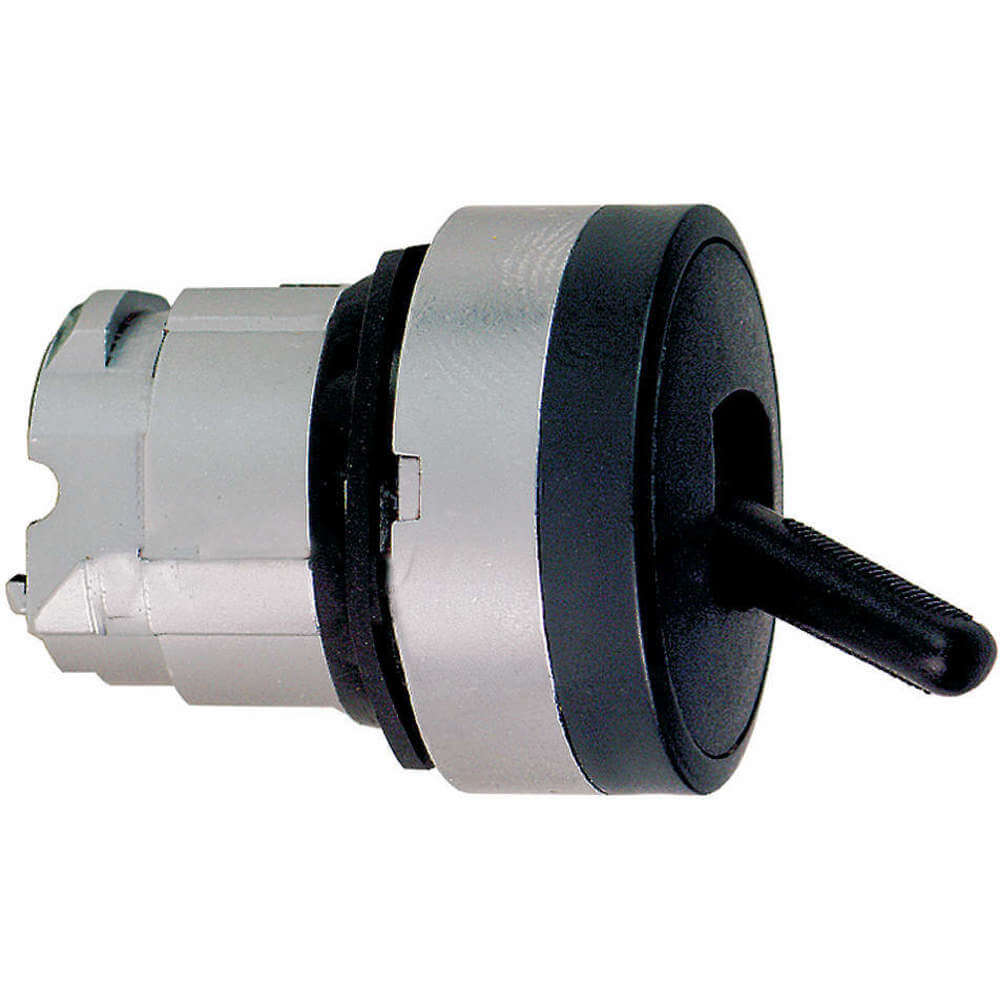

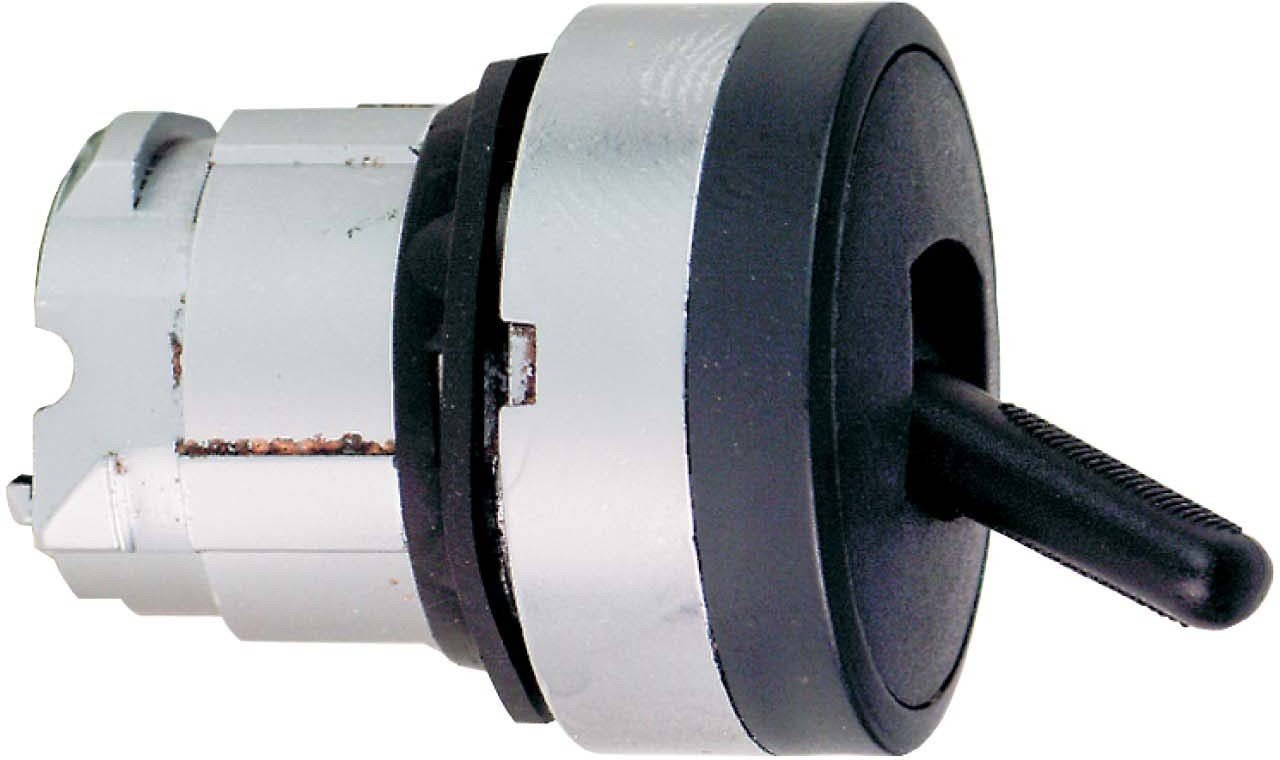

Metal Toggle Switch Operator, Type of Operator: 2-Position Toggle Switch, Size: 22mm, Action: Mainta

Metal Toggle Switch Operator, Type of Operator: 2-Position Toggle Switch, Size: 22mm, Action: Maintazoom

Attributes

Key Value
(Select First, Then App.Schneider, Harmony XB4
ActionStay Put, Maintained
ActuationMaintained
Actuatorstay put;Black toggle s.
Actuator TypeBat, Selector
Alternate Part No.996-ZB4BD28
ApplicationSELECTOR SWITCH
Basic MaterialMetal
Bezel MaterialChrome Die Cast Aluminum
BrandSchneider Electric
Cad Overall Depth45 mm
Cad Overall Height29 mm
Cad Overall Width29 mm
Cap ColourBlack
Catalog NumberZB4BD28
CategorySwitches
ColorBlack
Country of OriginFR - France, France
Current Stock3
Description2 POS MAINTAINED TOGGLE.
Designed for22 mm Selector Switches
Detailed DescriptionConfigurable Switch Bod.
Device Presentationbasic element
Digi-Key Part Number4008-ZB4BD28-ND
ECCNEAR99
EnclosureNEMA 13-NEMA 4X
Environmental ConditionsIP 65
Extended Lead TimeShips in 10 business da.
Family NameHarmony XB4 Family
For Use WithXB4 Series
Head MaterialAluminum-Zinc Alloy
IlluminationNon-Illuminated
IndicatorBlack
International ShippingNo
IP Rating66, IP66
ItemToggle Switch Operator
Item TypeHead for selector switch
LegendNo Legend
Made in USANo
ManufacturerSchneider Electric
Manufacturer Part No.ZB4BD28
Manufacturer Product Nu.ZB4BD28
Manufacturer Standard L.1 Weeks
MaterialChromium plated metal
Mechanical Durability500000 cycles
MfrSchneider Electric
Mounting Diameter22 mm
MpnZB4BD28
NEMA Rating1, 13, 2, 3, 4, 4X
Number of Operators1
Operating Temperature-40-70 A Degrees C
Operating Temperature R.- 25 C to + 70 C
PackageBox
Panel Cutout Dimensions22mm (Round)
ProductActuators
Product CategorySwitch Actuators
Product CertificationsCSA || UL Listed || BV .
Product StatusActive
Product TypeToggle Switch Operator
Protective TreatmentTH
RequiresContact Block(s)
Resistance To High Pres.7000000 Pa 55?C 0.1 m
SeriesHarmony XB4, Harmony, Z.
Size22mm, 22 mm, 0.87
SKUZO-G6374496
Special FeaturesCHROMIUM PLATED METAL,H.
Standard30 GN 18 MS) HALF SINE .
StandardsCSA C22-2 n Degrees 14.
Sub BrandZB4
SubCategoryElectrical
TerminationScrew
TypeMaintained, Head
Type of Operator2-Position Toggle Switch
UNSPSC39122216
UPC785901380320
UPC Code785901380320
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEZB4BD2830.081In StockSCHNEIDER ELECTRIC30.08 @ 1
thumbzoommostelectric.comZB4BD2830.9413SQUARE D/TELEMECANIQUE30.94 @ 1
Graybar9952673431.00161In StockSquare D (Schneider Electric)31.0016 @ 1
thumbzoomZoroG637449634.5518Schneider Electric0.0734.55 @ 1
Mouser996-ZB4BD2844.7413Schneider Electric44.74 @ 1
thumbzoomAmazonSCB0028YR5N645.341In StockSchneider Electric45.34 @ 1
thumbzoomsimsupply.comZO-G637449646.861In StockSchneider Electric46.86 @ 1
us.rs-online.com7033662548.2214Schneider Electric48.22 @ 1
thumbzoomNewark80C815952.81In StockSCHNEIDER ELECTRIC52.8 @ 1
thumbzoomDigi-Key1717951453.541In StockSchneider Electric53.54 @ 1
RS Delivers609-219053.7121In StockSchneider Electric53.712 @ 1
thumbzoomcrescentelectric.com1896054.311In StockSchneider Electric54.31 @ 1
thumbzoomsustainablesupply.comC117068862.61In StockSchneider Electric0.0762.6 @ 1
thumbzoomNational Supply Network6953626670.621In StockSchneider Electric70.62 @ 1
thumbzoomRaptor SuppliesAF7GZG79.36537051In StockSCHNEIDER ELECTRIC79.3653705 @ 1
thumbzoomswatee.comZB4BD2882.5611Schneider Electric82.56 @ 1
