Schneider Electric ZB4BW11

B0078S278U

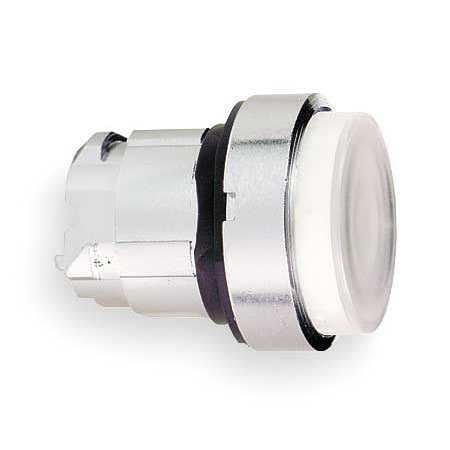

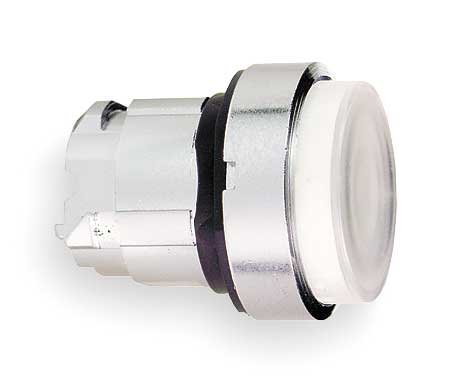

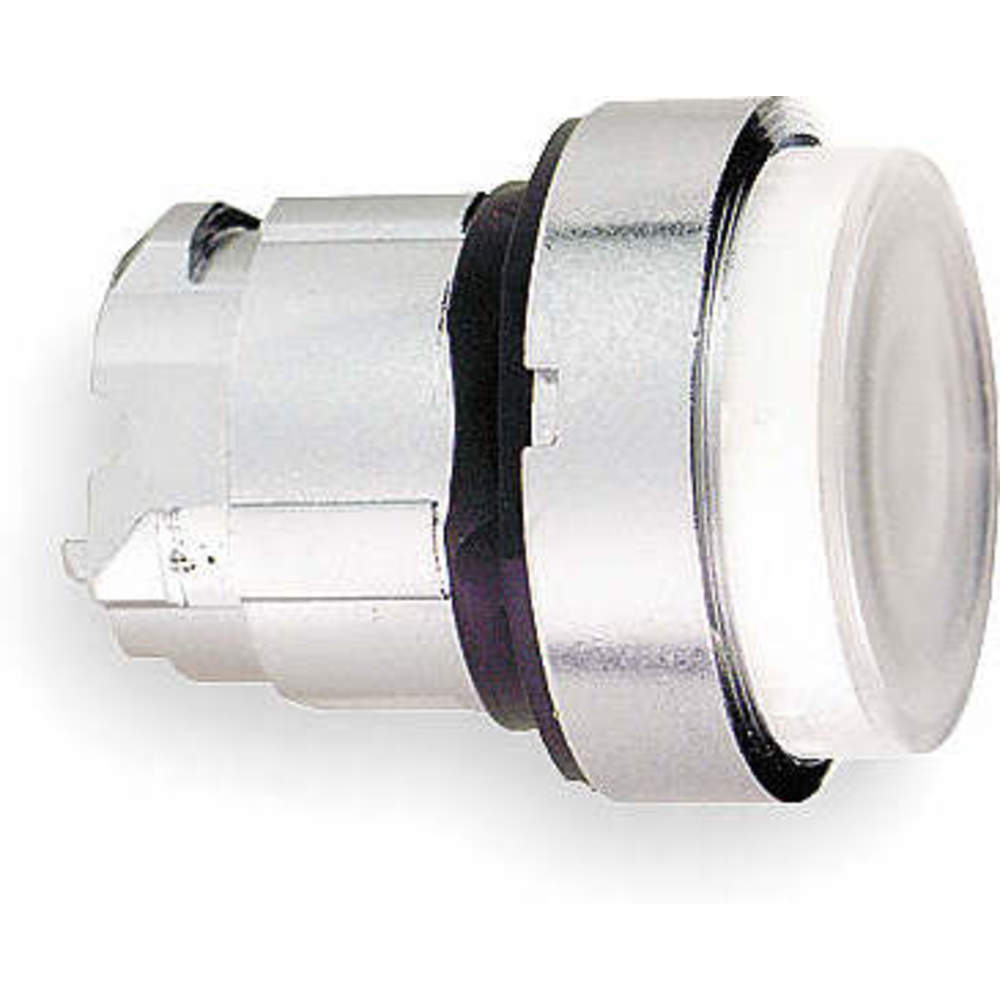

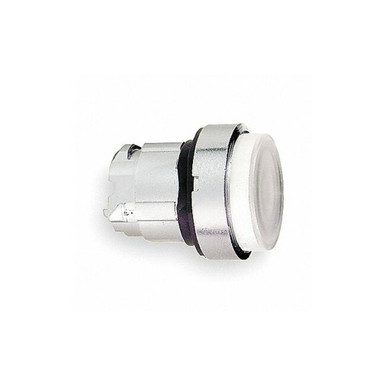

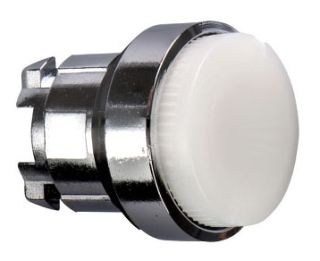

Illum Push Button Operator, 22mm, White

Illum Push Button Operator, 22mm, Whitezoom

Attributes

Key Value
ActionSPRING RETURN, Momentary
ActuationSPRING RETURN
Actuatorspring return;White pro.
Actuator colourwhite
Actuator TypePushbutton ; Push-Pull
ApplicationBA 9s
Basic MaterialMetal
BezelChrome Plated Metal
Bezel Materialchromium plated metal
BrandSCHNEIDER ELECTRIC
Button markingblank
Button shapeprominent
Cad Overall Depth32 mm
Cad Overall Height29 mm
Cad Overall Width29 mm
Catalog NumberZB4BW11
Colorwhite
Colourwhite
Country of OriginCzech Republic, CZ - Cz.
Current Stock12
ECCNEAR99
EnclosureNEMA 13-NEMA 4X
Environmental ConditionsIP 65
Family NameHarmony XB4 Family
For Use WithIlluminated Push Button.
Head MaterialAluminum-Zinc Alloy
Head Typestandard
IlluminationZBV6
Indicatorwhite
International ShippingNo
IP RatingIP69, 66
IP ratingIP66
ItemPush Button operator
Item TypeHead for illuminated pu.
Lamp Module TypeTransformer
Lamp Module VoltageModule Not Included
Lamp TypeIncandescent, Neon or L.
Lamp VoltageDependent on Module Used
LegendNo Legend
Made in USANo
ManufacturerSCHNEIDER ELECTRIC
Manufacturer seriesHarmony XB4
Materialchromium plated metal
Mounting Diameter22 mm
Mounting hole diameter?22mm
Mounting Hole Size22
MpnZB4BW11
NEMA RatingNEMA 13, 4X, 13, 4X
Number of positions2
Operating temperature-25...70?C
Operating Temperature-40-55 A Degrees C
Primary TypePushbutton
Product CompatibilityBA 9s
Related itemsZB4BZ009,
SeriesZB4 Series, Harmony
Size22mm, 22 mm, 0.87
SKUZO-G2697301
Special FeaturesWITH PLAIN LENS
Stable positions number1
Standard30 GN 18 MS) HALF SINE .
StandardsCE, CSA, RoHS, UL
Sub BrandZB4
SubCategoryElectrical
Switch standard22mm
Switches featureswitout symbol
TerminationScrew
Type of OperatorExtended Button
Type of switchpush-button
UNSPSC39122216
UPC785901372561
UPC Code785901372561
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommostelectric.comZB4BW118.63110SQUARE D/TELEMECANIQUE8.63 @ 1
thumbzoomTMEZB4BW119.9118SCHNEIDER ELECTRIC9.91 @ 1
standardelectricsupply.com218062510.31In StockSchneider Electric10.3 @ 1
thumbzoomZoroG269730110.89119Schneider Electric0.0310.89 @ 1
thumbzoomgordonelectricsupply.comZB4BW1111.491In Stock10SQUARE D11.49 @ 1
grainger.caTLQZB4BW1113.659668921In StockSCHNEIDER ELECTRIC0.0313.65966892 @ 1
thumbzoomcrescentelectric.com8268315.161In StockSchneider Electric15.16 @ 1
RS Delivers746-911215.2413Schneider Electric15.24 @ 1
thumbzoomNewark80C828015.811In StockSCHNEIDER ELECTRIC15.81 @ 1
thumbzoomsustainablesupply.comC121189917.321In StockSchneider Electric0.0317.32 @ 1
thumbzoomsimsupply.comZO-G269730117.68112Schneider Electric17.68 @ 1
us.rs-online.com7033681817.9213Schneider Electric17.92 @ 1
Graybar9949626121.82881In StockSquare D (Schneider Electric)21.8288 @ 1
thumbzoomRaptor SuppliesAG7FBF25.5202741In StockSCHNEIDER ELECTRIC25.520274 @ 1
thumbzoomNational Supply Network6967069326.01In StockSchneider Electric26.0 @ 1
