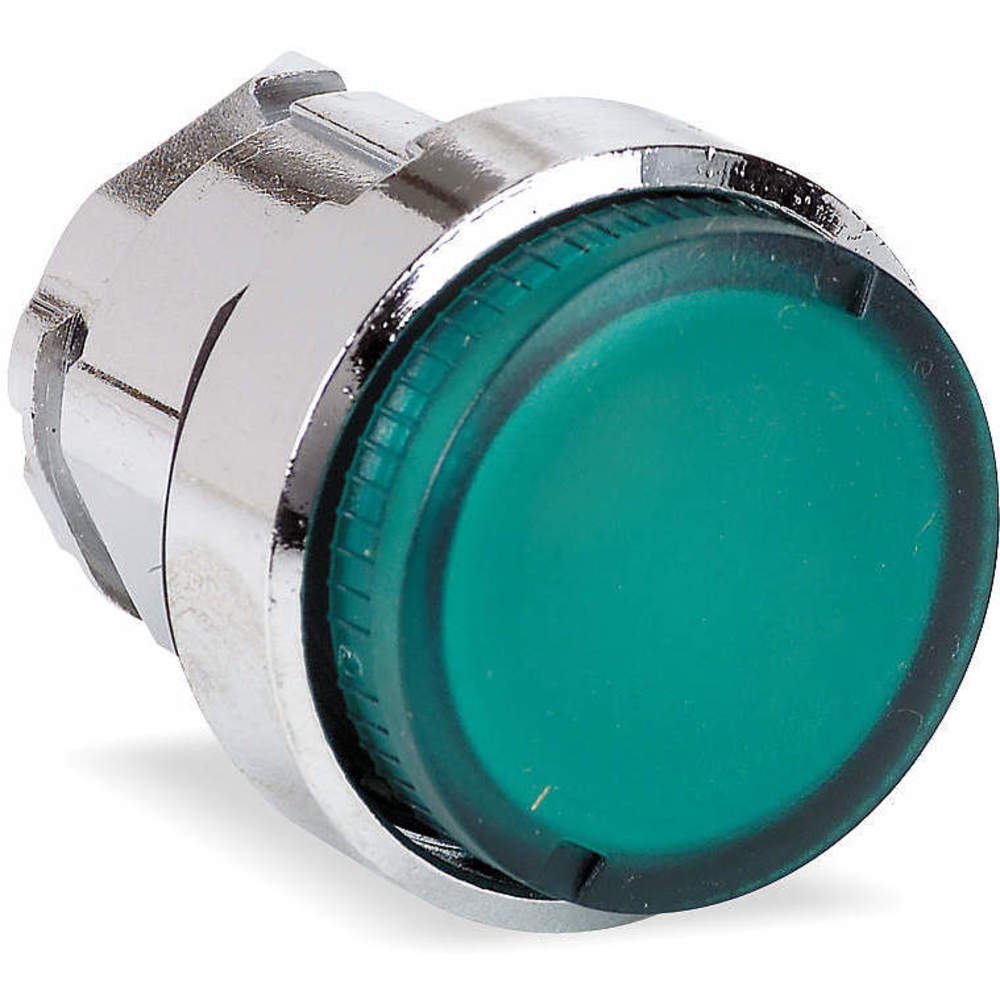

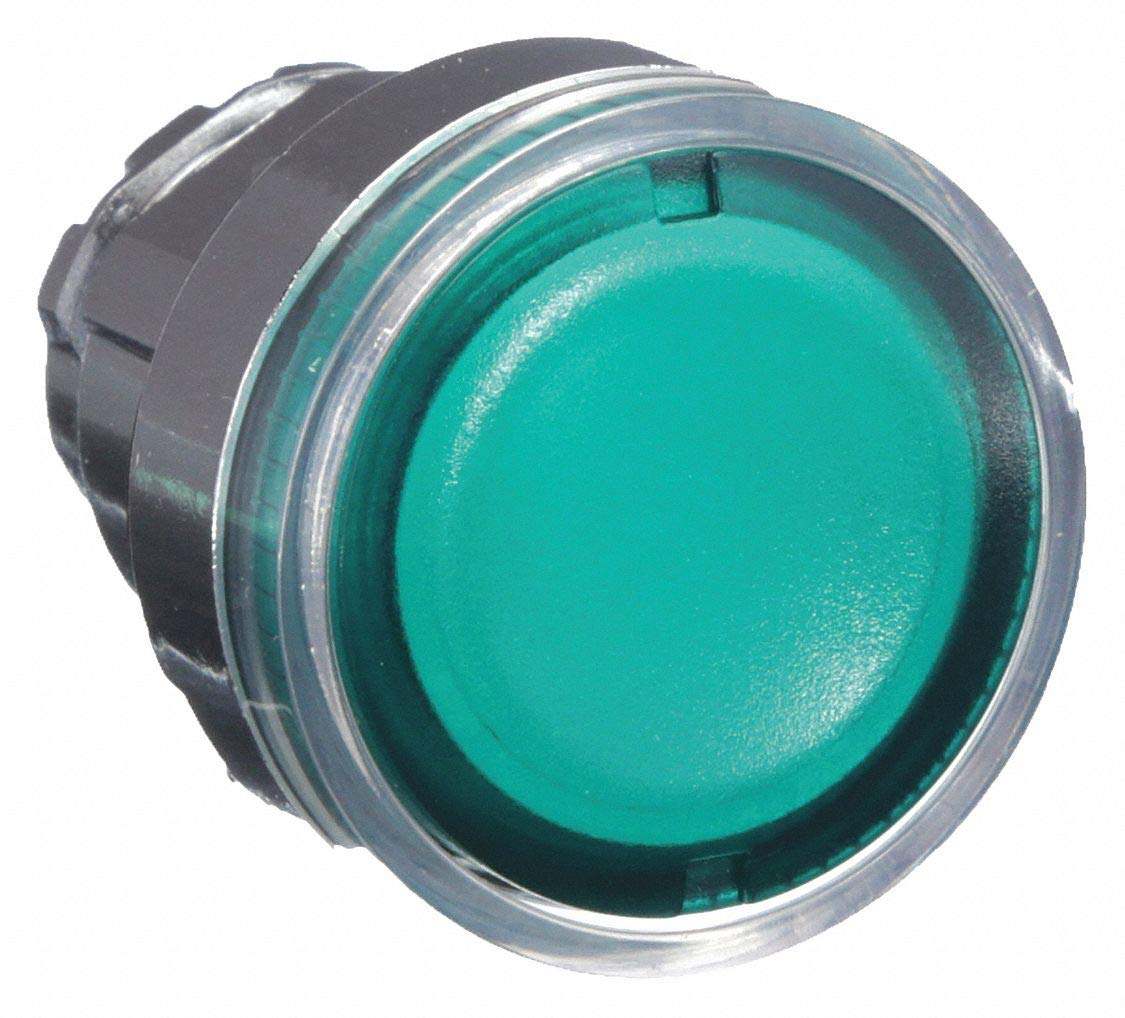

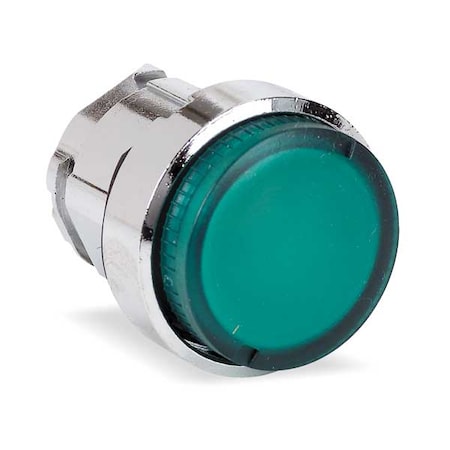

Schneider Electric ZB4BW13

B0078R5XEQ

Illum Push Button Operator, 22Mm, Green

Illum Push Button Operator, 22Mm, Greenzoom

Attributes

Key Value
(Select First, Then App.Schneider, Harmony XB5
ActionMomentary
ActuationSpring Return
Actuatorspring return;Green pro.
Actuator colourgreen
Actuator TypePushbutton, Round, Mush.
ApplicationBA 9s
Basic MaterialMetal
BezelChrome Plated Metal
Bezel Materialchromium plated metal
BrandSCHNEIDER ELECTRIC
Button markingblank
Button shapeprominent
Cad Overall Depth32 mm
Cad Overall Height29 mm
Cad Overall Width29 mm
Catalog NumberZB4BW13
CategorySwitches
Colorgreen
Colourgreen
ConditionNew
Country of OriginCzech Republic, CZ - Cz.
Current Stock42
DescriptionHEAD FOR ILLUMINATED PU.
Detailed DescriptionConfigurable Switch Bod.
Digi-Key Part Number4008-ZB4BW13-ND
ECCNEAR99
EnclosureNEMA 1/2/3/4/4X/13
Environmental ConditionsIP 65
Family NameHarmony XB4 Family
Family SeriesSquare D Miscellaneous
Gross Weight0 lbs
Head MaterialAluminum-Zinc Alloy
Head Typestandard
IlluminationZBV6, Illuminated - Gre.
Indicatorgreen
International ShippingNo
Ip Degree Of ProtectionIP66 IEC 60529 || IP69 .
IP ratingIP66
IP Rating66, IP66
ItemIlluminated Push Button.
Item NumberZB4BW13
Item Typehead for illuminated pu.
Lamp Module TypeTransformer
Lamp Module VoltageModule Not Included
Lamp TypeIncandescent, LED, Neon
Lamp VoltageDependent on Module Used
LegendNo legend
Made in USANo
ManufacturerSquare D, SCHNEIDER ELE.
Manufacturer Part NumberZB4BW13
Manufacturer Product Nu.ZB4BW13
Manufacturer seriesHarmony XB4
Manufacturer Standard L.5 Weeks
Materialchromium plated metal
MfrSCHNEIDER ELECTRIC
Mounting Diameter22 mm
Mounting hole diameter?22mm
Mounting Hole Size22
MpnZB4BW13
NEMA Rating13, 4X
Net Weight0 lbs
Number of positions2
Operating temperature-25...70?C
Operating Temperature-40-55 A Degrees C
PackageBox
Panel Cutout Dimensions22mm (Round)
Primary TypePushbutton
Product Or Component Ty.head for illuminated pu.
Product StatusActive
Related itemsZB4BZ009,
RequiresContact Block(s), Illum.
SeriesHarmony XB4, ZB4 Series.
Size22 mm, 0.87
SKUZO-G0325254
Special Featureschromium plated metal
Stable positions number1
StandardUL LISTED FILE NUMBER E.
StandardsCE, CSA, RoHS, UL
Sub BrandZB4
SubCategoryElectrical
Switch standard22mm
Switches featureswitout symbol
TerminationScrew
TypeMomentary
Type of OperatorExtended Button
Type of switchpush-button
UNSPSC39122216
UPC785901353768
UPC Code785901353768
Warranty DescriptionContractual Warranty:18.
Weight2.000000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommostelectric.comZB4BW138.63110SQUARE D/TELEMECANIQUE8.63 @ 1
thumbzoomTMEZB4BW139.41110SCHNEIDER ELECTRIC9.41 @ 1
thumbzoomZoroG03252549.591121Schneider Electric0.19.59 @ 1
us.rs-online.com700088729.95110Schneider Electric9.95 @ 1
thumbzoomindustrialrefrigerationparts.comZB4BW1311.751In StockSquare D2.011.75 @ 1
grainger.caTLQZB4BW1313.775797881In StockSCHNEIDER ELECTRIC0.113.77579788 @ 1
RS Delivers746-912514.844139Schneider Electric14.844 @ 1
thumbzoomcrescentelectric.com13608415.161In StockSchneider Electric15.16 @ 1
Grainger6HR4715.581860SCHNEIDER ELECTRIC15.58 @ 1
thumbzoomDigi-Key1661405615.79113Schneider Electric15.79 @ 1
thumbzoomNewark17C843315.811In StockSCHNEIDER ELECTRIC15.81 @ 1
thumbzoomGalcoZB4BW13-SQD17.091In StockSquare D17.09 @ 1
thumbzoomsimsupply.comZO-G032525418.57142Schneider Electric18.57 @ 1
thumbzoomAmazonSCB0078R5XEQ19.291In StockSchneider Electric19.29 @ 1
thumbzoomblackhawksupply.comZB4BW1319.791In StockSquare D19.79 @ 1
Graybar9949626221.82881In StockSquare D (Schneider Electric)21.8288 @ 1
thumbzoomRaptor SuppliesAG7FBH25.3414981In StockSCHNEIDER ELECTRIC25.341498 @ 1
thumbzoomNational Supply Network6967067725.851In StockSchneider Electric25.85 @ 1
