- mpnZB4BW14
- brandname: Schneider Electric
- manufacturername: Schneider Electric

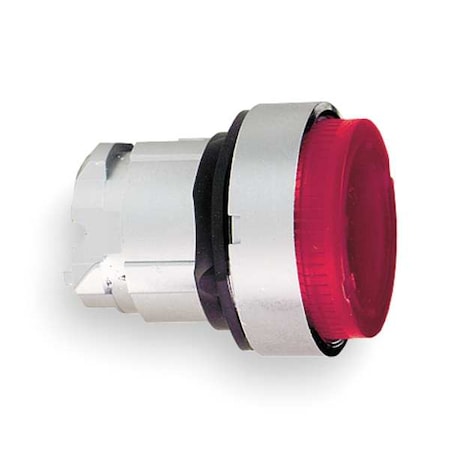

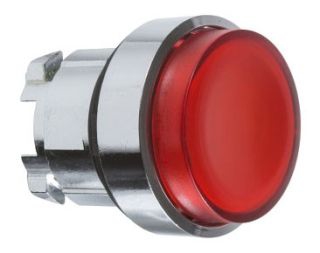

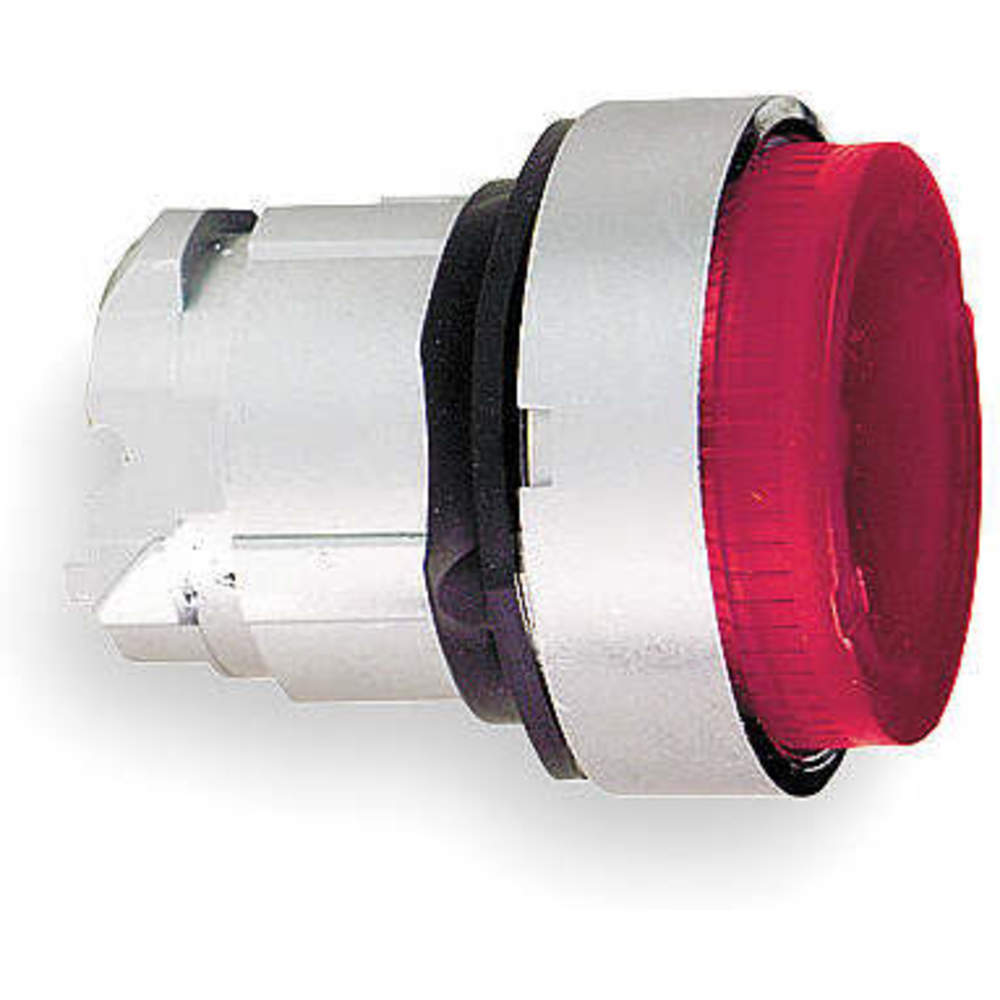

Square D Zb4Bw14 Red Ext Hd Pb Operator
- Brand: Square D
- PartNumber: ZB4BW14
- PackageQuantity: 1
- Manufacturer: Schneider Electric
- Label: Schneider Electric
Attributes
| Key | Value |
|---|
| (Select First, Then App. | Schneider, Harmony XB5 |
| Action | Momentary |
| Actuator | spring return;Red proje. |
| Actuator colour | Red |
| Actuator Type | Pushbutton, Pushbutton,. |
| Application | BA 9s |
| Basic Material | Metal |
| Bezel | Chrome Plated Metal |
| Bezel Material | chromium plated metal |
| Brand | SCHNEIDER ELECTRIC |
| Button marking | blank |
| Button shape | prominent |
| Cad Overall Depth | 32 mm |
| Cad Overall Height | 29 mm |
| Cad Overall Width | 29 mm |
| Catalog Number | ZB4BW14 |
| Category | Switches |
| Color | Red |
| Colour | Red |
| Country of Origin | Czech Republic |
| Description | HEAD FOR ILLUMINATED PU. |
| Detailed Description | Configurable Switch Bod. |
| Digi-Key Part Number | 4008-ZB4BW14-ND |
| Enclosure | NEMA 1/2/3/4/4X/13 |
| Environmental Conditions | IP 65 |
| Family Name | Harmony XB4 Family |
| Head Material | Aluminum-Zinc Alloy |
| Illumination | ZBV6, Illuminated - Red |
| Indicator | Red |
| Ip Degree Of Protection | IP66 IEC 60529 || IP69 . |
| IP Rating | 66 |
| IP rating | IP66 |
| Item | Illuminated Push Button. |
| Item Type | Head for illuminated pu. |
| Lamp Module Type | Transformer |
| Lamp Module Voltage | Module Not Included |
| Lamp Type | Incandescent, LED, Neon |
| Lamp Voltage | Dependent on Module Used |
| Legend | No legend |
| Made in USA | No |
| Manufacturer | SCHNEIDER ELECTRIC |
| Manufacturer Product Nu. | ZB4BW14 |
| Manufacturer series | Harmony XB4 |
| Manufacturer Standard L. | 3 Weeks |
| Material | chromium plated metal |
| Mechanical Durability | 10000000 cycles |
| Mfr | SCHNEIDER ELECTRIC |
| Mounting Diameter | 22 mm |
| Mounting hole diameter | ?22mm |
| Mounting Hole Size | 22 |
| NEMA Rating | 13, 4X |
| Number of positions | 2 |
| Operating temperature | -25...70?C |
| Operating Temperature | -40-55 A Degrees C |
| Package | Box |
| Panel Cutout Dimensions | 22mm (Round) |
| Primary Type | Pushbutton |
| Product Compatibility | BA 9s |
| Product Status | Active |
| Related items | ZB4BZ009, |
| Requires | Contact Block(s), Illum. |
| Series | Harmony XB4, ZB4 Series |
| Size | 22 mm, 0.87 |
| Special Features | chromium plated metal |
| Stable positions number | 1 |
| Standard | UL LISTED FILE NUMBER E. |
| Standards | CE, CSA, RoHS, UL |
| Sub Brand | ZB4 |
| Switch standard | 22mm |
| Switches features | witout symbol |
| Type | Momentary |
| Type of Operator | Extended Button |
| Type of switch | push-button |
| UPC | 785901353775 |
| UPC Code | 785901353775 |
| Warranty Description | Contractual Warranty:18. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | mostelectric.com | ZB4BW14 | 8.63 | 1 | In Stock | | SQUARE D/TELEMECANIQUE | | 8.63 @ 1 |
 | Zoro | G1203797 | 9.09 | 1 | 43 | | Schneider Electric | 0.1 | 9.09 @ 1 |
 | TME | ZB4BW14 | 9.86 | 1 | 23 | | SCHNEIDER ELECTRIC | | 9.86 @ 1 |
 | gordonelectricsupply.com | ZB4BW14 | 11.49 | 1 | In Stock | 10 | SQUARE D | | 11.49 @ 1 |
| grainger.ca | TLQZB4BW14 | 14.61773284 | 1 | In Stock | | SCHNEIDER ELECTRIC | 0.1 | 14.61773284 @ 1 |
| RS Delivers | 746-9122 | 14.844 | 1 | 5 | | Schneider Electric | | 14.844 @ 1 |
 | crescentelectric.com | 54747 | 15.16 | 1 | In Stock | | Schneider Electric | | 15.16 @ 1 |
 | Newark | 17C8434 | 15.81 | 1 | In Stock | | SCHNEIDER ELECTRIC | | 15.81 @ 1 |
 | Digi-Key | 16614306 | 16.61 | 1 | In Stock | | Schneider Electric | | 16.61 @ 1 |
 | sustainablesupply.com | C1211900 | 16.74 | 1 | In Stock | | Schneider Electric | 0.1 | 16.74 @ 1 |
 | National Supply Network | 69670644 | 25.85 | 1 | In Stock | | Schneider Electric | | 25.85 @ 1 |
 | Raptor Supplies | AG7FBJ | 28.537119 | 1 | In Stock | | SCHNEIDER ELECTRIC | | 28.537119 @ 1 |
| us.rs-online.com | 70008874 | 37.91 | 1 | 5 | | Schneider Electric | | 37.91 @ 1 |
