- mpnZB4BW16
- brandname: Schneider Electric
- manufacturername: Schneider Electric

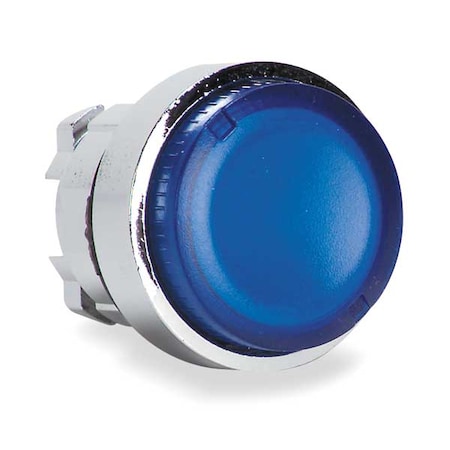

Schneider Electric Illuminated Push Button Operator, Blue, Momentary Action, Dependent on Module Used Lamp Voltage
- Brand: CAI - SCHNEIDER ELECTRIC
- PartNumber: ZB4BW16
- PackageQuantity: 1
- Manufacturer: CAI - SCHNEIDER ELECTRIC
- Label: CAI - SCHNEIDER ELECTRIC
Attributes
| Key | Value |
|---|
| (Select First, Then App. | Schneider, Harmony XB4 |
| Action | Spring Return, Momentary |
| Actuation | Spring Return |
| Actuator | spring return;Blue proj. |
| Actuator Type | Pushbutton, Round, Mush. |
| Ambient Air Temperature. | -40-70?C |
| Application | BA 9s |
| Basic Material | Metal |
| Bezel | Chrome Plated Metal |
| Bezel Material | chromium plated metal |
| Brand | Schneider Electric |
| Cad Overall Depth | 32 mm |
| Cad Overall Height | 29 mm |
| Cad Overall Width | 29 mm |
| Catalog Number | ZB4BW16 |
| Category | Switches |
| Color | Blue |
| Colour | Blue |
| Country of Origin | Czech Republic |
| Description | PUSH BUTTON |
| Detailed Description | Configurable Switch Bod. |
| Device Short Name | ZB4 |
| Digi-Key Part Number | 4008-ZB4BW16-ND |
| Enclosure | NEMA 13-NEMA 4X |
| Environmental Conditions | IP 65 |
| Family Name | Harmony XB4 Family |
| Family Series | Square D Miscellaneous |
| Gross Weight | 0 lbs |
| Head Material | Aluminum-Zinc Alloy |
| Illumination | Illuminated - Blue |
| Indicator | Blue |
| International Shipping | No |
| IP Rating | 66, IP66 |
| Item | Illuminated Push Button. |
| Item Number | ZB4BW16 |
| Item Type | Head for illuminated pu. |
| Lamp Module Type | Transformer |
| Lamp Module Voltage | Module Not Included |
| Lamp Type | Incandescent, LED, Neon |
| Lamp Voltage | Dependent on Module Used |
| Lead Time | Expected to ship in 1-2. |
| Legend | No legend |
| Made in USA | No |
| Manufacturer | Square D, Schneider Ele. |
| Manufacturer Part Number | ZB4BW16 |
| Manufacturer Product Nu. | ZB4BW16 |
| Manufacturer Standard L. | 1 Weeks |
| Material | chromium plated metal |
| Mfr | Schneider Electric |
| Mounting Diameter | 22 mm |
| Mounting Hole Size | 22 |
| Mpn | ZB4BW16 |
| NEMA Rating | 13, 4X |
| Net Weight | 0 lbs |
| Operating Temperature | -40-55 A Degrees C |
| Package | Box |
| Panel Cutout Dimensions | 22mm (Round) |
| Primary Type | Pushbutton |
| Product Compatibility | BA 9s |
| Product Status | Active |
| Requires | Contact Block(s), Illum. |
| Series | Harmony XB4, ZB4 Series |
| Size | 22mm, 22 mm, 0.87 |
| SKU | ZO-G2315031 |
| Special Features | WITH PLAIN LENS |
| Standard | 30 GN 18 MS) HALF SINE . |
| Standards | CE, CSA, RoHS, UL |
| Sub Brand | ZB4 |
| SubCategory | Electrical |
| Termination | Screw |
| Type | Momentary |
| Type of Operator | Extended Button |
| UPC | 785901353799 |
| UPC Code | 785901353799 |
| Warranty Description | Contractual Warranty:18. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2315031 | 9.25 | 1 | 2 | | Schneider Electric | 0.1 | 9.25 @ 1 |
 | TME | ZB4BW16 | 10.24 | 1 | 4 | | SCHNEIDER ELECTRIC | | 10.24 @ 1 |
 | Galco | ZB4BW16-SQD | 11.14 | 1 | In Stock | | Square D | | 11.14 @ 1 |
 | gordonelectricsupply.com | ZB4BW16 | 11.49 | 1 | In Stock | 10 | SQUARE D | | 11.49 @ 1 |
 | mostelectric.com | ZB4BW16 | 12.95 | 1 | 5 | | SQUARE D/TELEMECANIQUE | | 12.95 @ 1 |
| grainger.ca | TLQZB4BW16 | 13.2096692 | 1 | In Stock | | SCHNEIDER ELECTRIC | 0.1 | 13.2096692 @ 1 |
| RS Delivers | 746-8438 | 13.956 | 1 | In Stock | | Schneider Electric | | 13.956 @ 1 |
 | sustainablesupply.com | C1211902 | 17.38 | 1 | In Stock | | Schneider Electric | 0.1 | 17.38 @ 1 |
| AmazonSC | B0078RSQEA | 19.16 | 1 | In Stock | | Schneider Electric | | 19.16 @ 1 |
 | blackhawksupply.com | ZB4BW16 | 19.79 | 1 | In Stock | | Square D | | 19.79 @ 1 |
 | simsupply.com | ZO-G2315031 | 20.57 | 1 | In Stock | | Schneider Electric | | 20.57 @ 1 |
| us.rs-online.com | 70336819 | 21.64 | 1 | 1 | | Schneider Electric | | 21.64 @ 1 |
 | crescentelectric.com | 83313 | 22.73 | 1 | In Stock | | Schneider Electric | | 22.73 @ 1 |
 | Digi-Key | 17180620 | 23.24 | 1 | In Stock | | Schneider Electric | | 23.24 @ 1 |
 | Newark | 17C8436 | 23.72 | 1 | In Stock | | SCHNEIDER ELECTRIC | | 23.72 @ 1 |
 | Raptor Supplies | AG7FBN | 25.520274 | 1 | In Stock | | SCHNEIDER ELECTRIC | | 25.520274 @ 1 |
 | National Supply Network | 69670628 | 26.38 | 1 | In Stock | | Schneider Electric | | 26.38 @ 1 |
