Schneider Electric ZB4BW31

B000WLD90A

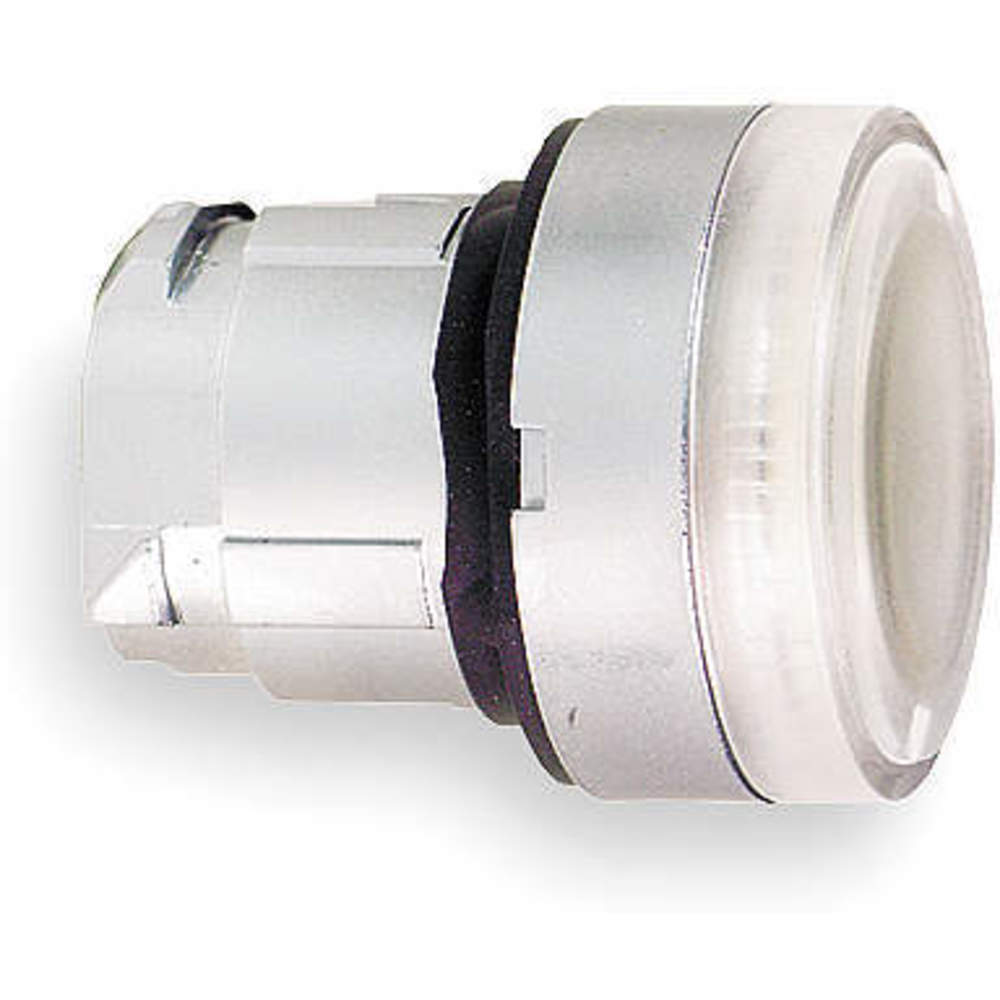

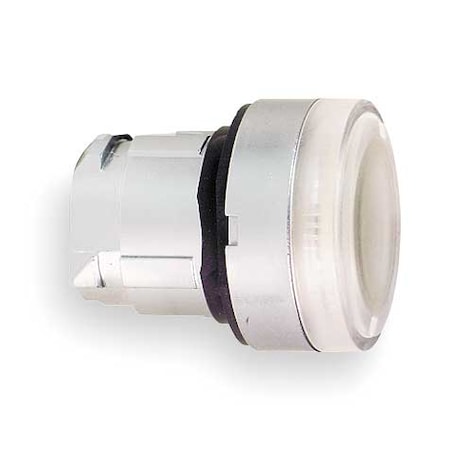

Illum Push Button Operator, 22mm, White

Illum Push Button Operator, 22mm, Whitezoom

Attributes

Key Value
(Select First, Then App.Schneider, Harmony XB4
ActionMomentary
Actuatorspring return;White flu.
Actuator TypeRound Flush, Pushbutton.
ApplicationBA 9s
Basic MaterialMetal
BezelChrome Plated Metal
Bezel Materialchromium plated metal
BrandSchneider Electric
Cad Overall Depth32 mm
Cad Overall Height29 mm
Cad Overall Width29 mm
Catalog NumberZB4BW31
CategorySwitches
ColorWhite
Color FamilyWhite
ColourWhite
Country of OriginCzech Republic, CZ - Cz.
DescriptionHARMONY XB4, ILLUMINATE.
Detailed DescriptionConfigurable Switch Bod.
Digi-Key Part Number4008-ZB4BW31-ND
ECCNEAR99
EnclosureNEMA 1/2/3/4/4X/13
Environmental ConditionsIP 65
Family NameHarmony XB4 Family
Family SeriesSquare D Miscellaneous
Gross Weight0 lbs
GTIN03389110889697
Head MaterialAluminum-Zinc Alloy
IlluminationIlluminated, Illuminate.
Illumination ColorWhite
IndicatorWhite
IP RatingIP65, 66
ItemIlluminated Push Button.
Item NumberZB4BW31
Item TypeHead for illuminated pu.
Lamp Module TypeTransformer
Lamp Module VoltageModule Not Included
Lamp TypeIncandescent, LED, Neon
Lamp VoltageDependent on Module Used
LegendNo legend
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberZB4BW31-SQD
Manufacturer Product Nu.ZB4BW31
Manufacturer Standard L.3 Weeks
Materialchromium plated metal
MfrSchneider Electric
Mounting Diameter22 mm
Mounting Hole Size22 mm
Mounting TypePanel Mount
NEMA Rating13, 4X
Net Weight0 lbs
Operating Temperature-40-55 A Degrees C
Operator Additional Inf.with plain lens
Overvoltage Categoryclass I IEC 60536
PackageBox
Panel Cutout Dimensions22mm (Round)
Product StatusActive
RequiresContact Block(s), Illum.
SeriesHarmony XB4, ZB4 Series
Shape Of Signaling Unit.round
Size22MM ROUND, 22 mm
Special FeaturesIlluminated, Flush Beze.
StandardUL LISTED FILE NUMBER E.
StandardsCE, CSA, RoHS, UL
Sub BrandZB4
TypePush Button, Momentary
Type of OperatorFlush Button
UNSPSC39122216
UPC785901372578
UPC Code785901372578
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEZB4BW319.89120SCHNEIDER ELECTRIC9.89 @ 1
Graybar9949597811.7041In StockSquare D (Schneider Electric)11.704 @ 1
thumbzoommostelectric.comZB4BW3112.35115SQUARE D/TELEMECANIQUE12.35 @ 1
RS Delivers331-002912.372157Schneider Electric12.372 @ 1
thumbzoomkempstoncontrols.co.ukZB4-BW3113.061821512Schneider13.0618215 @ 1
us.rs-online.com7000696814.2130Schneider Electric14.2 @ 1
thumbzoomZoroG219506714.39189Schneider Electric0.0514.39 @ 1
RadwellZB4-BW3114.71In StockSCHNEIDER%20ELECTRIC14.7 @ 1
grainger.caTLQZB4BW3116.359667241In StockSCHNEIDER ELECTRIC0.0516.35966724 @ 1
thumbzoomGalcoZB4BW31-SQD17.531In StockSquare D17.53 @ 1
thumbzoomDigi-Key1661404820.931In StockSchneider Electric20.93 @ 1
thumbzoomcrescentelectric.com11685921.691In StockSchneider Electric21.69 @ 1
thumbzoomNewark80C828121.791In StockSCHNEIDER ELECTRIC21.79 @ 1
thumbzoomblackhawksupply.comZB4BW3124.181In StockSquare D24.18 @ 1
thumbzoomNational Supply Network6967060232.061In StockSchneider Electric32.06 @ 1
thumbzoomRaptor SuppliesAG7FBQ35.23004551In StockSCHNEIDER ELECTRIC35.2300455 @ 1
industrialrefrigerationparts.comZB4BW3147.061In StockSchneider Electric47.06 @ 1
