Square D/Telemecanique ZB4BW33

B00R8MLAF2

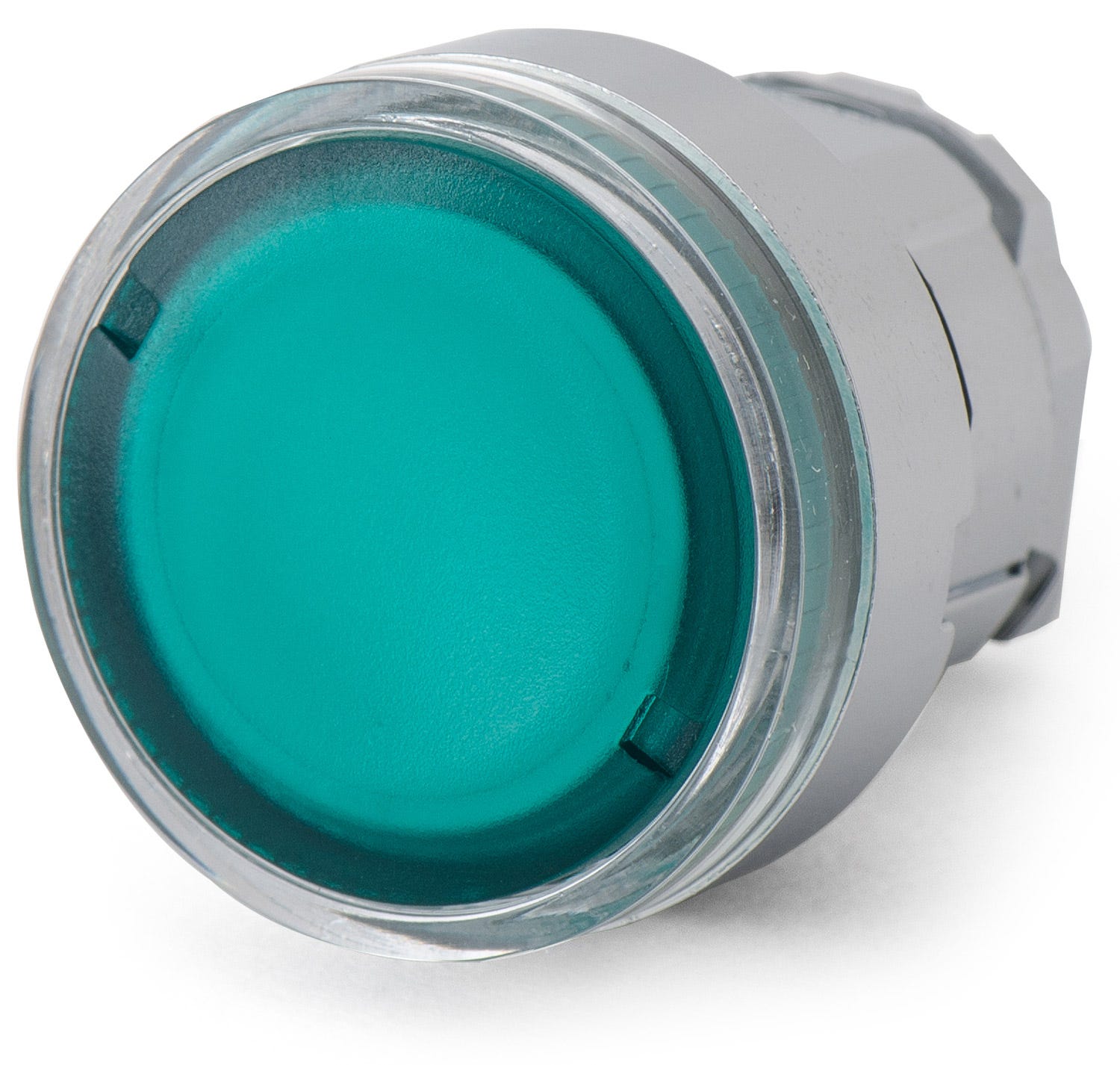

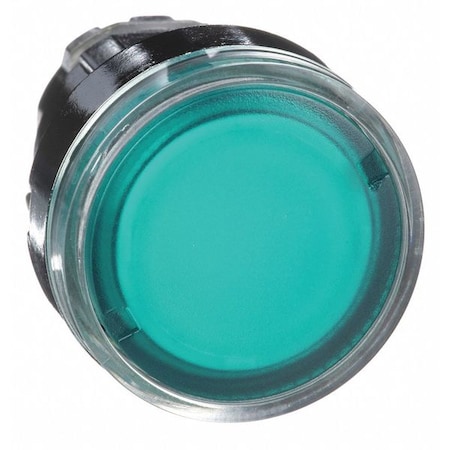

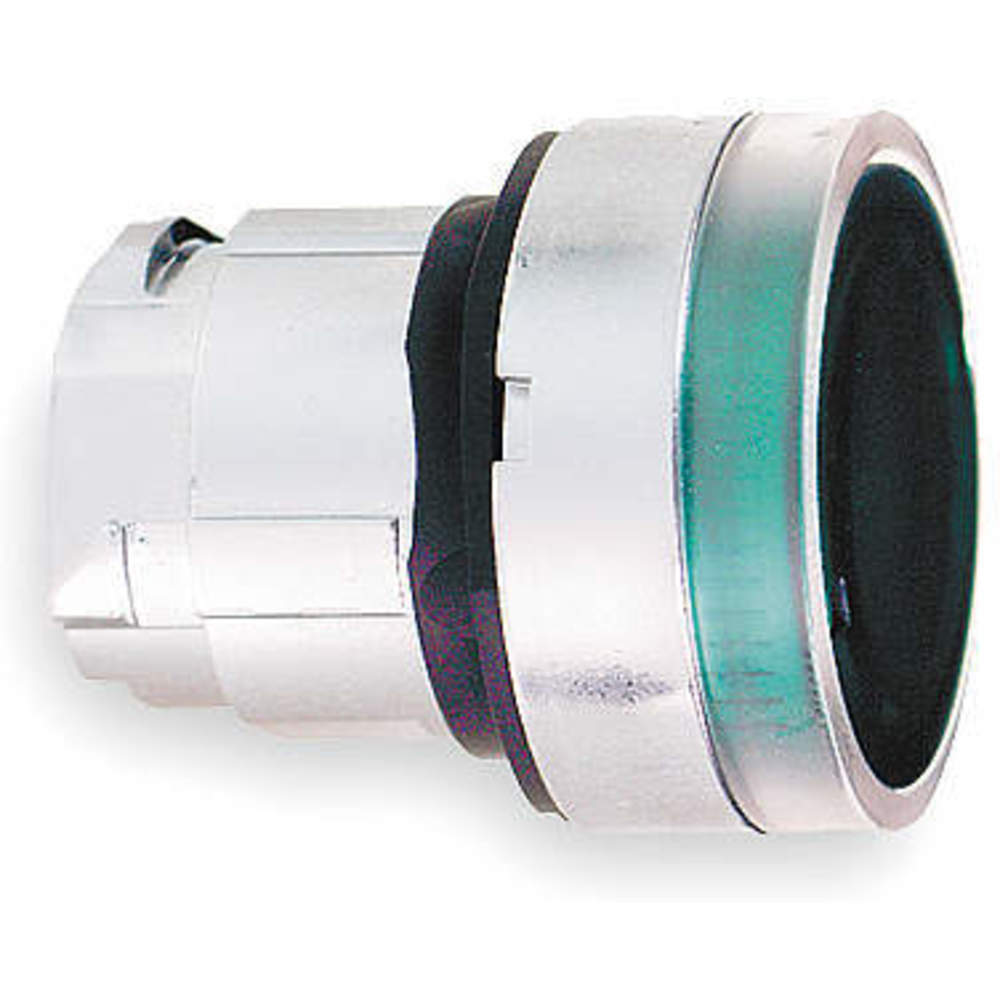

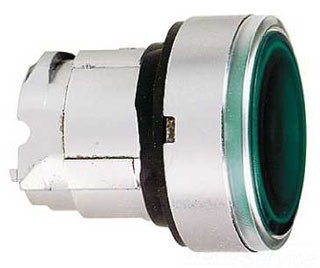

Square D Zb4Bw33 Grn Pushbutton Oper

Square D Zb4Bw33 Grn Pushbutton Operzoom

Attributes

Key Value
(Select First, Then App.Schneider, Harmony XB5
ActionMomentary
Actuatorspring return;Green flu.
Actuator ColorGreen
Actuator TypePushbutton, Round, Mush.
Ambient Air Temperature.-40-55 ?C
Ambient Air Temperature.-40-70 ?C, -40-70?C
ApplicationBA 9s
ASINB00DK83BJG
Basic MaterialMetal
Batteries Required?No
BezelChrome Plated Metal
Bezel Materialchromium plated metal
BrandSchneider Electric
Cad Overall Depth32 mm
Cad Overall Height29 mm
Cad Overall Width29 mm
Catalog NumberZB4BW33
CategorySwitches
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
ColorGreen
Color FamilyGreen
ColourGreen
Country of OriginCzech Republic, CZ - Cz.
DescriptionHARMONY, 22MM PUSH BUTT.
Detailed DescriptionConfigurable Switch Bod.
Device Presentationbasic sub-assemblies
Device Short NameZB4
Digi-Key Part Number4008-ZB4BW33-ND
ECCNEAR99
Electrical Composition .M7 6 single front mount.
EnclosureNEMA 1/2/3/4/4X/13
Environmental ConditionsIP 65
Environmental DisclosureENVPEP1808008EN
Eu Rohs DirectivePro-active compliance (.
Family NameHarmony XB4 Family
Gtin785901354741
Head MaterialAluminum-Zinc Alloy
Head Typestandard
Ik Degree Of ProtectionIK06 IEC 62262
IlluminationIlluminated, Illuminate.
IndicatorGreen
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 .
IP RatingIP65, 66
ItemIlluminated Push Button.
Item model numberZB4BW33
Item Package Quantity1
Item Typehead for illuminated pu.
Lamp Module TypeTransformer
Lamp Module VoltageModule Not Included
Lamp TypeIncandescent, LED, Neon
Lamp VoltageDependent on Module Used
LegendNo legend
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.ZB4BW33
Manufacturer Standard L.3 Weeks
Materialchromium plated metal
Mechanical Durability10000000 cycles
Mercury FreeYes
MfrSchneider Electric
Mounting Diameter22 mm
Mounting Hole Size22 mm
Mounting TypePanel Mount
MpnZB4BW33
National Stock Number5930-01-522-8092
Nema Degree Of Protecti.NEMA 13 || NEMA 4X
Nema RatingNEMA 1/2/3/4/4X/12/13
NEMA Rating13, 4X
Net Weight0.027 kg
Number of Positions2
Operating Temperature-40-55 A Degrees C
Operator Additional Inf.with plain lens
Operator Profilegreen flush, unmarked
Overvoltage Categoryclass I IEC 60536
PackageBox
Panel Cutout Dimensions22mm (Round)
Part NumberZB4BW33
Product CertificationsBV || CSA || UL Listed .
Product CompatibilityBA 9s
Product Or Component Ty.head for illuminated pu.
Product StatusActive
Protective TreatmentTH
Range Of ProductHarmony XB4
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
RequiresContact Block(s), Illum.
Resistance To High Pres.7000000 Pa 55 ?C 0.1 m
Rohs Exemption Informat.Yes
Sale Per Indivisible Qu.1
SeriesHarmony XB4, ZB4 Series.
Shape Of Signaling Unit.round
Shock Resistance30 gn 18 ms) half sine .
Size22 mm
Special Featureschromium plated metal, .
StandardUL LISTED FILE NUMBER E.
StandardsUL 508 || IEC 60947-1 |.
Sub BrandZB4
Sustainable Offer StatusGreen Premium product
TerminationScrew
Toxic Heavy Metal FreeYes
TypePush Button, Momentary
Type Of Operatorspring return
Type of OperatorFlush Button
UNSPSC39122216
Upc785901354741
UPC785901354741
UPC Code785901354741
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Warranty18 months
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEZB4BW339.64141SCHNEIDER ELECTRIC9.64 @ 1
thumbzoomsuperbreakers.comZB4BW3310.141In StockSchneider Electric10.14 @ 1
Graybar9948569011.7041In StockSquare D (Schneider Electric)11.704 @ 1
AmazonSCB00DK83BJG12.01In StockSchneider Electric0.0112.0 @ 1
thumbzoomkempstoncontrols.co.ukZB4-BW3312.056206518Schneider12.0562065 @ 1
RS Delivers331-004112.18165Schneider Electric12.18 @ 1
thumbzoommostelectric.comZB4BW3312.35112SQUARE D/TELEMECANIQUE12.35 @ 1
thumbzoomZoroG350888113.391202Schneider Electric0.113.39 @ 1
standardelectricsupply.com33536314.74129Schneider Electric14.74 @ 1
thumbzoomturtle.comSQD ZB4BW3314.791In StockSchneider Electric14.79 @ 1
grainger.caTLQZB4BW3316.6935381In StockSCHNEIDER ELECTRIC0.116.693538 @ 1
thumbzoommayerelectric.comSQDZB4BW3318.111In StockSQUARE D0.059418.11 @ 1
us.rs-online.com7000696919.6126Schneider Electric19.6 @ 1
thumbzoomDigi-Key1661450219.6819Schneider Electric19.68 @ 1
AmazonTPB000WL7WY421.01In Stock2SCHNEIDER ELECTRIC21.0 @ 1
thumbzoomcrescentelectric.com15996521.6914Schneider Electric21.69 @ 1
thumbzoomNewark53M503822.861In StockSCHNEIDER ELECTRIC22.86 @ 1
thumbzoomblackhawksupply.comZB4BW3324.181In StockSquare D24.18 @ 1
thumbzoomsustainablesupply.comC121190424.381In StockSchneider Electric0.124.38 @ 1
thumbzoomNational Supply Network6953377631.751In StockSchneider Electric31.75 @ 1
thumbzoomRaptor SuppliesAG7FBT35.084791In StockSCHNEIDER ELECTRIC35.08479 @ 1
industrialrefrigerationparts.comZB4BW3347.061In StockSchneider Electric47.06 @ 1
