Sealmaster RFB 207

B008FCVMRU

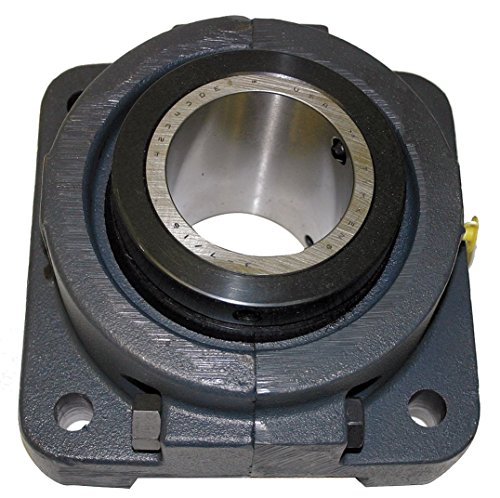

Sealmaster RFB 207 Heavy Duty Flange Unit, 4 Bolt, Regreasable, Felt Seals, Double Concentric Clamp Collars, Cast Iron Housing, 2-7/16" Bore, 6-7/8" Overall Length, 5-3/8" Bolt Hole Spacing Width, 1-1/2" Flange Height

Sealmaster RFB 207 Heavy Duty Flange Unit, 4 Bolt, Regreasable, Felt Seals, Double Concentric Clamp Collars, Cast Iron Housing, 2-7/16" Bore, 6-7/8" Overall Length, 5-3/8" Bolt Hole Spacing Width, 1-1/2" Flange Heightzoom

Attributes

Key Value
Bolt Circle Diameter7.609 in
Bolt Size5/8 in
Bolt Spacing5.375 Inch | 136.525 Mi.
Bore2.438 Inch | 61.925 Mil.
Bore Dia.2 7/16 in
Bore Diameter2 7/16 in
BrandSEALMASTER
Cartridge Pilot Depth0 Inch | 0 Millimeter
Cartridge Pilot Diameter0 Inch | 0 Millimeter
CategoryFlange Block Bearings
Dimension A4 3/16 in
Dimension B6 7/8 in
Dimension BC7 39/64 in
Dimension C3 9/16 in
Dimension D3 3/8 in
Dimension E3/16 in
Dimension F5/8 in
Dimension G1 3/8 in
Dimension H1 1/2 in
Dimension J5 3/4 in
Dimension L3 15/16 in
Dimension M5 3/4 in
Dimension N2 in
EAN0662288480303
Expansion / Non-expansi.Non-expansion
Global Part Number GPN553303
Harmonized Tariff Code8483.20.40.80
Housing Configuration2 Piece Split
Housing MaterialCast Iron
Housing Style4 Bolt Square Flange Bl.
Inch - MetricInch
Inner Ring Width3.937 in
Insert Part NumberRCI-207
Length Thru Bore4 Inch | 101.6 Millimet.
Manufacturer NameREGAL BELOIT
Mount Hole Center-to-Ce.5.375 in
Mount Hole Center-to-Ce.5.375 in
Mounting Bolt Size5/8 in
Mounting Bolts5/8 Inch
Mounting MethodConcentric Collar
Nominal Bolt Circle Dia.7.6 Inch | 193 Millimet.
Number of Mounting Holes4
Other FeaturesDouble Row | Heavy Duty.
Overall Height6 7/8 in
Overall Length6 7/8 in
Overall Width4 3/16 in
Pilot ConfigurationNo Pilot
price$ 628.23 / each
RelubricatableYes
SealsFelt Labyrinth
titleRFB 207
UNSPSC31171501
Weight / kgm10.896
Weight / LBS24

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingRFB 207534.01In StockSEALMASTER23.9712534.0 @ 1
thumbzoomMRO Supply2255491637.5112SealMaster637.51 @ 1
us.rs-online.com73758592750.851In StockSealmaster750.85 @ 1
thumbzoomPurvisRFB 207842.741In StockSealmaster842.74 @ 1
thumbzoomZoroG8375753906.991In Stock10Sealmaster24.0906.99 @ 1
