Sealmaster CFM 16N

B008FEOBDU

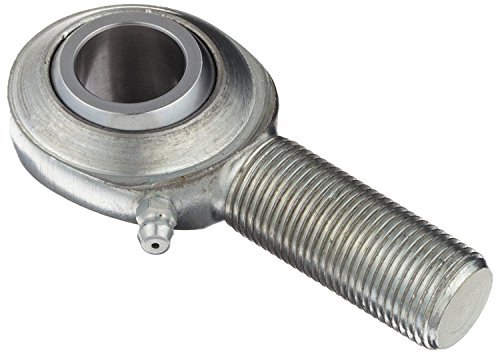

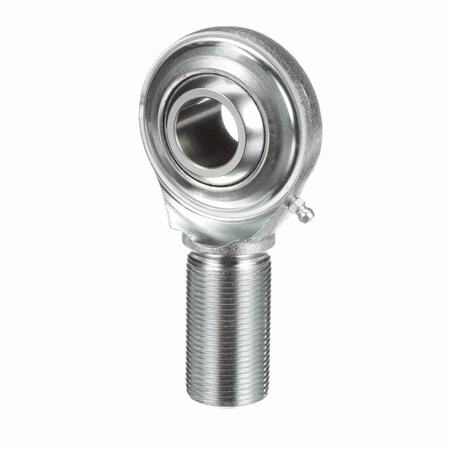

Sealmaster CFM 16N Rod End Bearing, Two Piece, Commercial, Regreasable, Male Shank, Right Hand Thread, 1 1/4"-12 Shank Thread Size, 1" Bore, ?8-1/2 degrees Misalignment Angle, 1-3/8" Length Through Bore, 2-3/4" Overall Head Width, 2.094" Thread Length, 25200.0lbf Static Load Capacity

Sealmaster CFM 16N Rod End Bearing, Two Piece, Commercial, Regreasable, Male Shank, Right Hand Thread, 1 1/4"-12 Shank Thread Size, 1" Bore, ?8-1/2 degrees Misalignment Angle, 1-3/8" Length Through Bore, 2-3/4" Overall Head Width, 2.094" Thread Length, 25200.0lbf Static Load Capacityzoom

Attributes

Key Value
axial static load capac.2100 lb
ball material:Alloy Steel - heat trea.
ball width:1.3750 in
Country of Origin (subj.Mexico
grade:Commercial
head diameter:2.7500 in
head width:1.0000 in
housing material:Carbon Steel - corrosio.
length to ball center:4.1250 in
lubrication type:With Lubrication Fitting
lubrication:Grease
manufacturer catalog nu.1481601000
operating temperature r.Max 350
race material:None
radial static load capa.21000 lb
rod end type:Male Threaded
series:CFM
shank thread size:1-1/4-12
thread direction:Right Hand

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com73756391206.61In StockSealmaster206.6 @ 1
thumbzoommotionindustries.com02625314221.321In StockSealmaster221.32 @ 1
thumbzoomZoroG5004582247.711In StockSealmaster247.71 @ 1
