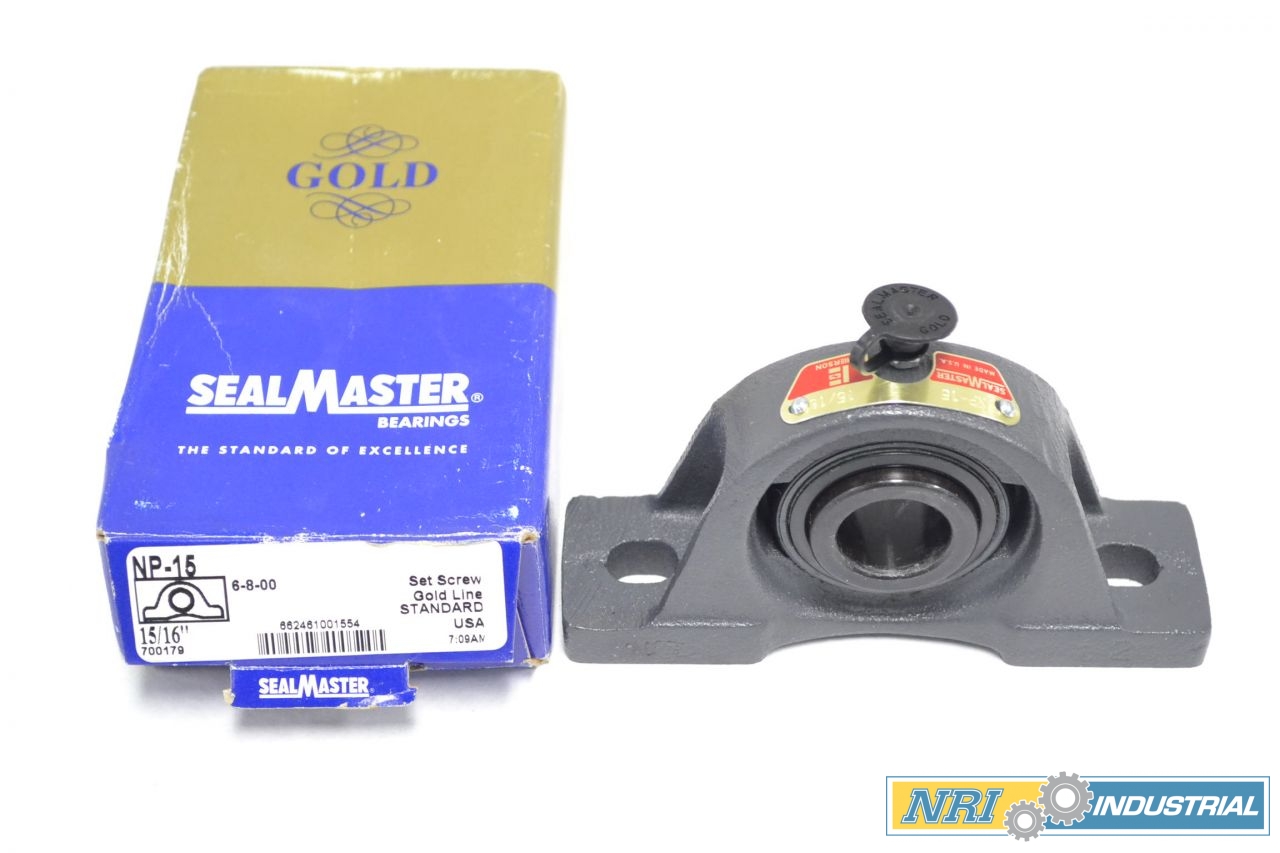

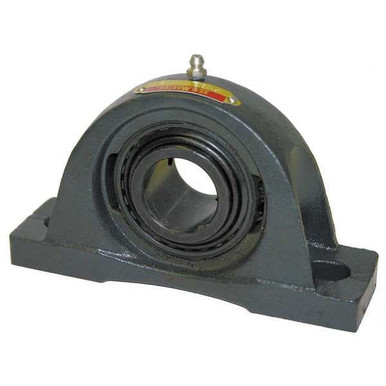

Sealmaster NP-15

B00DBOLJCK

Pillow Block Bearing, Ball, 15/16" Bore

Pillow Block Bearing, Ball, 15/16" Borezoom

Attributes

Key Value
Actual Bolt Center to C.0 Inch | 0Millimeter
Base Height0.5 in
Base to Center Height1.438 Inch | 36.525 Mil.
Base Width1.5 in
Bearing Housing Materia.Cast Iron
Bearing Insert TypeBall
Bolt Size3/8 in
Bolt Spacing Maximum4.375 Inch | 111.125Mil.
Bolt Spacing Minimum3.875 Inch | 98.425Mill.
Bore Dia.15/16 in
Bore Diameter15/16 in
BrandSEALMASTER
CategoryPillow Block Bearings
Center Height1 7/16 in
ColorBlack
Current Stock22
Dimension A1 7/16 in
Dimension B5 1/2 in
Dimension C3-7/8 in to 4-3/8 in
Dimension D1 1/2 in
Dimension E1 9/32 in
Dimension F7/16 in
Dimension G1/2 in
Dimension H2 13/16 in
Dimension J1 3/8 in
Dimension L1 3/8 in
Duty SeriesStandard
Estimated Weight2.15
Expansion / Non-expansi.Non-expansion
Global Part Number GPN6413
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
Housing Style2 Bolt Pillow Block
Inch - MetricInch
Insert Material52100 Steel/Black Oxide
Insert Part Number2-015
International ShippingNo
Lead TimeExpected to ship in 1-2.
Length Thru Bore1.375 Inch | 34.925 Mil.
Locking DeviceSetscrew
ManufacturerSEALMASTER
Manufacturer NameREGAL BELOIT
Mount Hole Center-to-Ce.4 3/8 in
Mounting Bolt Size3/8 in
Mounting Bolts3/8 Inch
Mounting MethodSet Screw
MpnNP-15
Nominal Bolt Center to .4.1 Inch | 105 Millimet.
Number of Mounting Holes2
Other FeaturesSingle Row | Standard D.
Overall Height2 13/16 in
Overall Length5 1/2 in
Overall Width1 1/2 in
Part NumberNP-15
price$ 83.43 / each
RelubricatableYes
Seal TypeStandard Felt Seal
SealsFelt Labyrinth
Shaft Diameter (in)0.9375
Shaft Locking TypeSet Screws
SKUZO-G8987903
SubCategoryPower Transmission
titleNP-15
TypeTwo Bolt Pillow Block
UNSPSC31171511
UPC662461001554
UPC Code662461001554
Weight / kgm1
Weight / LBS2.2

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialB29425646.61In StockSEALMASTER46.6 @ 1
thumbzoomLily BearingNP-1570.921In StockSEALMASTER2.270.92 @ 1
thumbzoomMRO Supply225583693.081In StockSealMaster93.08 @ 1
RadwellNP-1596.51In StockSEALMASTER96.5 @ 1
thumbzoomapexindustrialautomation.comNP-1599.73155Sealmaster99.73 @ 1
thumbzoommotorsandcontrol.comNP-1599.731In StockSealmaster2.1599.73 @ 1
us.rs-online.com72115366107.0412Sealmaster107.04 @ 1
thumbzoomPurvisNP-15122.821In StockSealmaster122.82 @ 1
thumbzoomZoroG8987903124.99138Sealmaster2.16124.99 @ 1
Grainger44A388144.01120SEALMASTER144.0 @ 1
thumbzoomsimsupply.comZO-G8987903148.02122Sealmaster148.02 @ 1
motionindustries.com00557088155.061In StockSealmaster155.06 @ 1
