Sealmaster NP-18

B006MI88LM

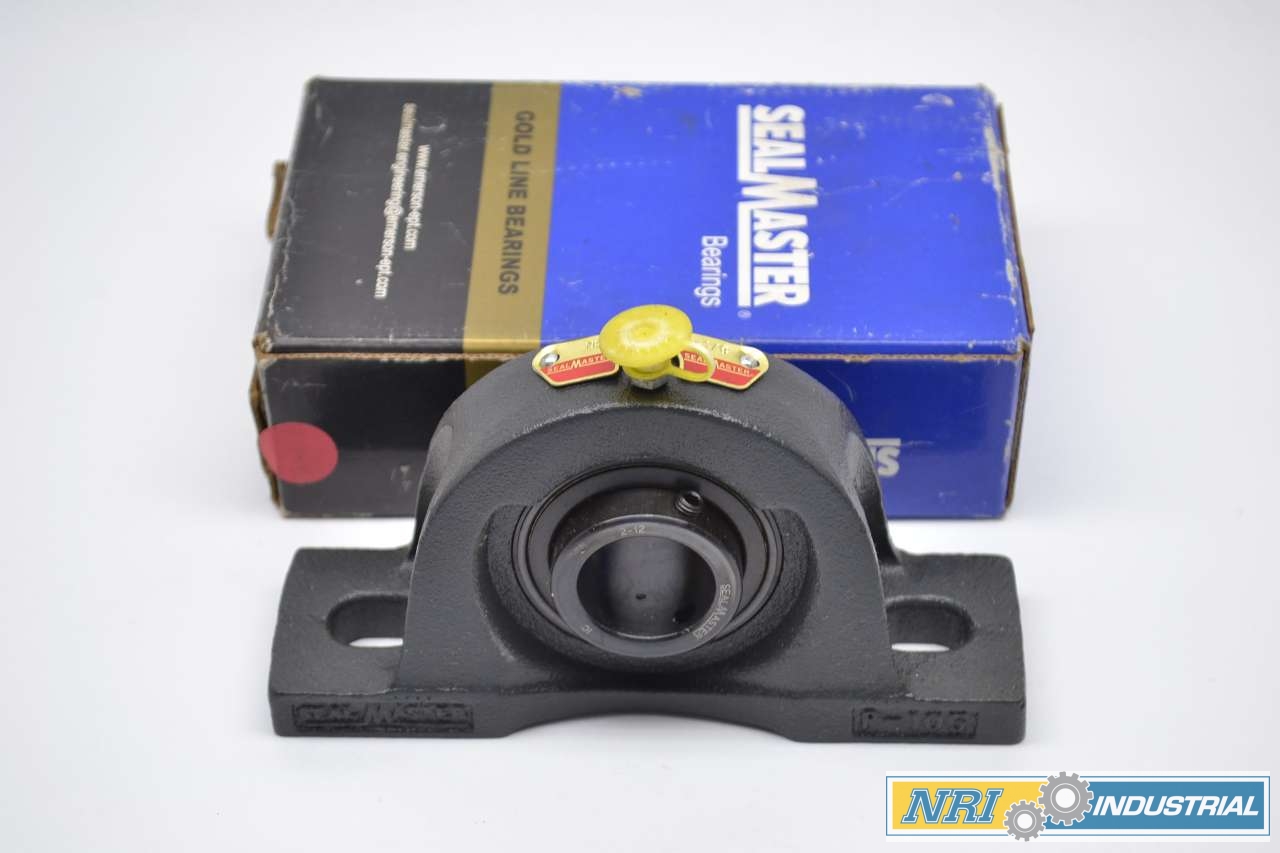

Sealmaster NP-18 Pillow Block Ball Bearing, Non-Expansion Type, Normal-Duty, Regreasable, Setscrew Locking Collar, Felt Seals, Cast Iron Housing, 1-1/8" Bore, 1-11/16" Base to Center Height, 4-3/4" Bolt Hole Spacing Width

Sealmaster NP-18 Pillow Block Ball Bearing, Non-Expansion Type, Normal-Duty, Regreasable, Setscrew Locking Collar, Felt Seals, Cast Iron Housing, 1-1/8" Bore, 1-11/16" Base to Center Height, 4-3/4" Bolt Hole Spacing Widthzoom

Attributes

Key Value
Base Height0.56 in
Base Width1.88 in
Bearing Housing Materia.Cast Iron
Bearing Insert TypeBall
Bearing TypeTwo Bolt Pillow Block
Bolt Size1/2 in
Bore Dia.1 1/8 in
Bore Diameter1 1/8 in
BrandSealmaster
Center Height1 11/16 in
Current Stock9
Dimension A1 11/16 in
Dimension B6 1/2 in
Dimension C4-7/16 in to 5-1/16 in
Dimension D1 7/8 in
Dimension E13/16 in
Dimension F9/16 in
Dimension G9/16 in
Dimension H3 3/8 in
Dimension J1 1/2 in
Dimension L1 19/32 in
Duty SeriesStandard
Estimated Weight3.75
Family SeriesSealmaster Bearings, NP.
Gross Weight3.7 lbs
Housing MaterialCast Iron
Insert Material52100 Steel/Black Oxide.
International ShippingNo
Item NumberNP-18
Lead TimeExpected to ship in 1-2.
Locking DeviceSetscrew, Set Screw
ManufacturerSealmaster
Manufacturer Part NumberNP-18
Mount Hole Center-to-Ce.5 3/64 in
Mounting Bolt Size1/2 in
MpnNP-18
Net Weight3.7 lbs
Overall Height3 3/8 in
Overall Length6 1/2 in
Overall Width1 7/8 in
Part NumberNP-18
Product SeriesNP
Seal TypeStandard Felt Seal
Shaft Diameter (in)1.125 ", 1.125
Shaft Locking TypeSet Screws
Shaft Range1-1.49
SKUZO-G8206046
SubCategoryPower Transmission
TypeTwo Bolt Pillow Block
UPC Code662461001585

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialB41715839.541In StockSEALMASTER39.54 @ 1
thumbzoomMRO Supply421646110.271In StockSealMaster110.27 @ 1
thumbzoomGalcoNP-18-SMST114.141In StockSealmaster3.7114.14 @ 1
thumbzoomapexindustrialautomation.comNP-18118.1411Sealmaster118.14 @ 1
thumbzoommotorsandcontrol.comNP-18118.141In StockSealmaster3.75118.14 @ 1
us.rs-online.com72115372126.821In StockSealmaster126.82 @ 1
thumbzoomRadwellNP-18135.012SEALMASTER3.53135.0 @ 1
thumbzoomZoroG8206046149.99112Sealmaster3.7149.99 @ 1
Grainger44A391170.751In Stock10SEALMASTER170.75 @ 1
thumbzoomsimsupply.comZO-G8206046177.619Sealmaster177.6 @ 1
