Sealmaster NP-19

B006MI88YE

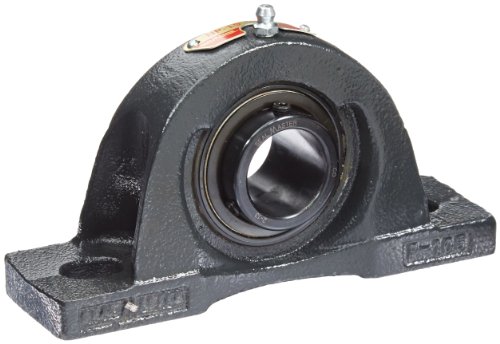

Sealmaster NP-19 Pillow Block Ball Bearing, Non-Expansion Type, Normal-Duty, Regreasable, Setscrew Locking Collar, Felt Seals, Cast Iron Housing, 1-3/16" Bore, 1-11/16" Base to Center Height, 4-3/4" Bolt Hole Spacing Width

Sealmaster NP-19 Pillow Block Ball Bearing, Non-Expansion Type, Normal-Duty, Regreasable, Setscrew Locking Collar, Felt Seals, Cast Iron Housing, 1-3/16" Bore, 1-11/16" Base to Center Height, 4-3/4" Bolt Hole Spacing Widthzoom

Attributes

Key Value
Base Height0.56 in
Base Width1.88 in
Bearing Housing Materia.Cast Iron
Bearing Insert TypeBall
Bolt Size1/2 in
Bore Dia.1 3/16 in
Bore Diameter1 3/16 in
Center Height1 11/16 in
Dimension A1 11/16 in
Dimension B6 1/2 in
Dimension C4-7/16 in to 5-1/16 in
Dimension D1 7/8 in
Dimension E13/16 in
Dimension F9/16 in
Dimension G9/16 in
Dimension H3 3/8 in
Dimension J1 1/2 in
Dimension L1 19/32 in
Mount Hole Center-to-Ce.5 3/64 in
Mounting Bolt Size1/2 in
Overall Height3 3/8 in
Overall Length6 1/2 in
Overall Width1 7/8 in
Shaft Locking TypeSet Screws
