Sealmaster NP-20C CR

B008FD4I8Y

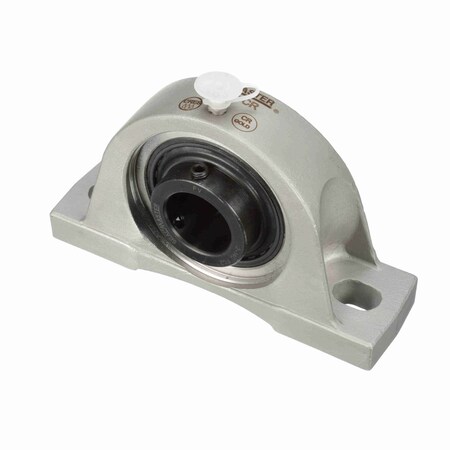

Sealmaster NP-20C CR Pillow Block Ball Bearing, Non-Expansion Type, Corrosion Resistant-Duty, Regreasable, Setscrew Locking Collar, Contact Seals, 316 Stainless Steel Housing, 1-1/4" Bore, 1-7/8" Base to Center Height, 5" Bolt Hole Spacing Width

Sealmaster NP-20C CR Pillow Block Ball Bearing, Non-Expansion Type, Corrosion Resistant-Duty, Regreasable, Setscrew Locking Collar, Contact Seals, 316 Stainless Steel Housing, 1-1/4" Bore, 1-7/8" Base to Center Height, 5" Bolt Hole Spacing Widthzoom

Attributes

Key Value
Actual Bolt Center to C.0 Inch | 0Millimeter
base to bore centerline:1.8750 in
Base to Center Height1.875 Inch | 47.63 Mill.
base width:1.8750 in
bolt center-to-center l.4.6875 to 5.3125 in
bolt size:.5000 in
Bolt Spacing Maximum5.313 Inch | 134.95Mill.
Bolt Spacing Minimum4.688 Inch | 119.075Mil.
bore diameter:1.2500 in
bore type:Round
BrandSealmaster
CategoryPillow Block Bearings
Country of Origin (subj.United States
Duty SeriesStandard
duty type:Normal Duty
Estimated Weight4.72
Expansion / Non-expansi.Non-expansion
expansion type:Non-Expansion Bearing (.
finish/coating:Uncoated
Global Part Number GPN6484
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron, Stainless St.
housing material:Stainless Steel
Housing Style2 Bolt Pillow Block
Inch - MetricInch
Insert MaterialCast Steel/Black Oxide
Insert Part Number2-14C-CR
Length Thru Bore1.688 Inch | 42.87 Mill.
Locking DeviceSetscrew
locking device:Set Screw
lubrication type:Lubrication Fitting
ManufacturerSealmaster
manufacturer catalog nu.723521
Manufacturer NameREGAL BELOIT
Mounting Bolts1/2 Inch
Mounting MethodSet Screw
mounting:Two-Bolt Base
Nominal Bolt Center to .5 Inch | 127 Millimeter
Number of Mounting Holes2
operating temperature r.Max 250
Other FeaturesSingle Row | Standard D.
overall height:3.7500 in
overall length:6.5625 in
overall width:1.6875 in
Part NumberNP-20C CR
price$ 165.33 / each
RelubricatableYes
replacement bearing:2-14C FG2
Replacement Insert2-14C FG2
Seal TypeContact Seal
seal type:Contact/Lip
SealsSingle Lip Contact
series:NP
Shaft Diameter (in)1.25
titleNP-20C CR
TypeTwo Bolt Pillow Block
UNSPSC31171511
UPC Code662461234839
Weight / kgm2.04
Weight / LBS4.5

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingNP-20C CR140.531In StockSEALMASTER4.488140.53 @ 1
thumbzoomapexindustrialautomation.comNP-20C CR167.641In StockSealmaster167.64 @ 1
us.rs-online.com72115386184.41In StockSealmaster184.4 @ 1
thumbzoomZoroG5002990222.791In Stock10Sealmaster222.79 @ 1
thumbzoomPurvisNP-20C CR234.71In StockSealmaster234.7 @ 1
thumbzoommotionindustries.com00600305256.021In StockSealmaster256.02 @ 1
