Sealmaster NP-31

B006MI8DGW

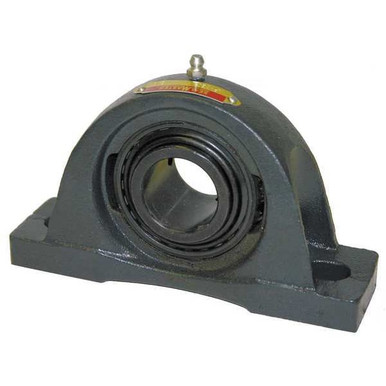

Sealmaster NP-31 Pillow Block Ball Bearing, Non-Expansion Type, Normal-Duty, Regreasable, Setscrew Locking Collar, Felt Seals, Cast Iron Housing, 1-15/16" Bore, 2-1/4" Base to Center Height, 6-1/4" Bolt Hole Spacing Width

Sealmaster NP-31 Pillow Block Ball Bearing, Non-Expansion Type, Normal-Duty, Regreasable, Setscrew Locking Collar, Felt Seals, Cast Iron Housing, 1-15/16" Bore, 2-1/4" Base to Center Height, 6-1/4" Bolt Hole Spacing Widthzoom

Attributes

Key Value
Actual Bolt Center to C.0 Inch | 0Millimeter
Base Height0.75 in
Base to Center Height2.25 Inch | 57.15 Milli.
Base Width2.38 in
Bearing Housing Materia.Cast Iron
Bearing Insert TypeBall
Bearing TypeTwo Bolt Pillow Block
Bolt Size5/8 in
Bolt Spacing Maximum6.5 Inch | 165.1Millime.
Bolt Spacing Minimum6 Inch | 152.4Millimeter
Bore Dia.1 15/16 in
Bore Diameter1 15/16 in
BrandSEALMASTER
CategoryPillow Block Bearings
Center Height2.25 in
Current Stock22
Dimension A2 1/4 in
Dimension B8 1/8 in
Dimension C6 in to 6-1/2 in
Dimension D2 3/8 in
Dimension E7/8 in
Dimension F11/16 in
Dimension G3/4 in
Dimension H4 9/16 in
Dimension J2 1/32 in
Dimension L2 15/32 in
Duty SeriesStandard
Estimated Weight8.10
Expansion / Non-expansi.Non-expansion
Family SeriesSealmaster Bearings, NP.
Global Part Number GPN6569
Gross Weight8.075 lbs
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
Housing Style2 Bolt Pillow Block
Inch - MetricInch
Insert Material52100 Steel/Black Oxide.
Insert Part Number2-115
International ShippingNo
Item NumberNP-31
Lead TimeExpected to ship in 1-2.
Length Thru Bore2.031 Inch | 51.59 Mill.
Locking DeviceSetscrew, Set Screw
ManufacturerSEALMASTER
Manufacturer NameREGAL BELOIT
Manufacturer Part Number700196
Mount Hole Center-to-Ce.6.5 in
Mounting Bolt Size5/8 in
Mounting Bolts5/8 Inch
Mounting MethodSet Screw
MpnNP-31
Net Weight8.07 lbs
Nominal Bolt Center to .6.3 Inch | 160 Millimet.
Number of Mounting Holes2
Other FeaturesSingle Row | Standard D.
Overall Height4 9/16 in
Overall Length8 1/8 in
Overall Width2 3/8 in
Part NumberNP-31
price$ 168.32 / each
Product SeriesNP
RelubricatableYes
Seal TypeStandard Felt Seal
SealsFelt Labyrinth
Shaft Diameter (in)1.9375 ", 1.9375
Shaft Locking TypeSet Screws
Shaft Range1.5-1.99
SKUZO-G8527452
SubCategoryPower Transmission
titleNP-31
TypeTwo Bolt Pillow Block
UNSPSC31171511
UPC Code662461001721
Weight / kgm3.59
Weight / LBS7.9

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTask SurplusSEALMASTER - NP3180.01In StockSEALMASTER80.0 @ 1
AmazonB006MI8DGW134.621In StockSealmaster134.62 @ 1
thumbzoomLily BearingNP-31143.071In StockSEALMASTER7.898143.07 @ 1

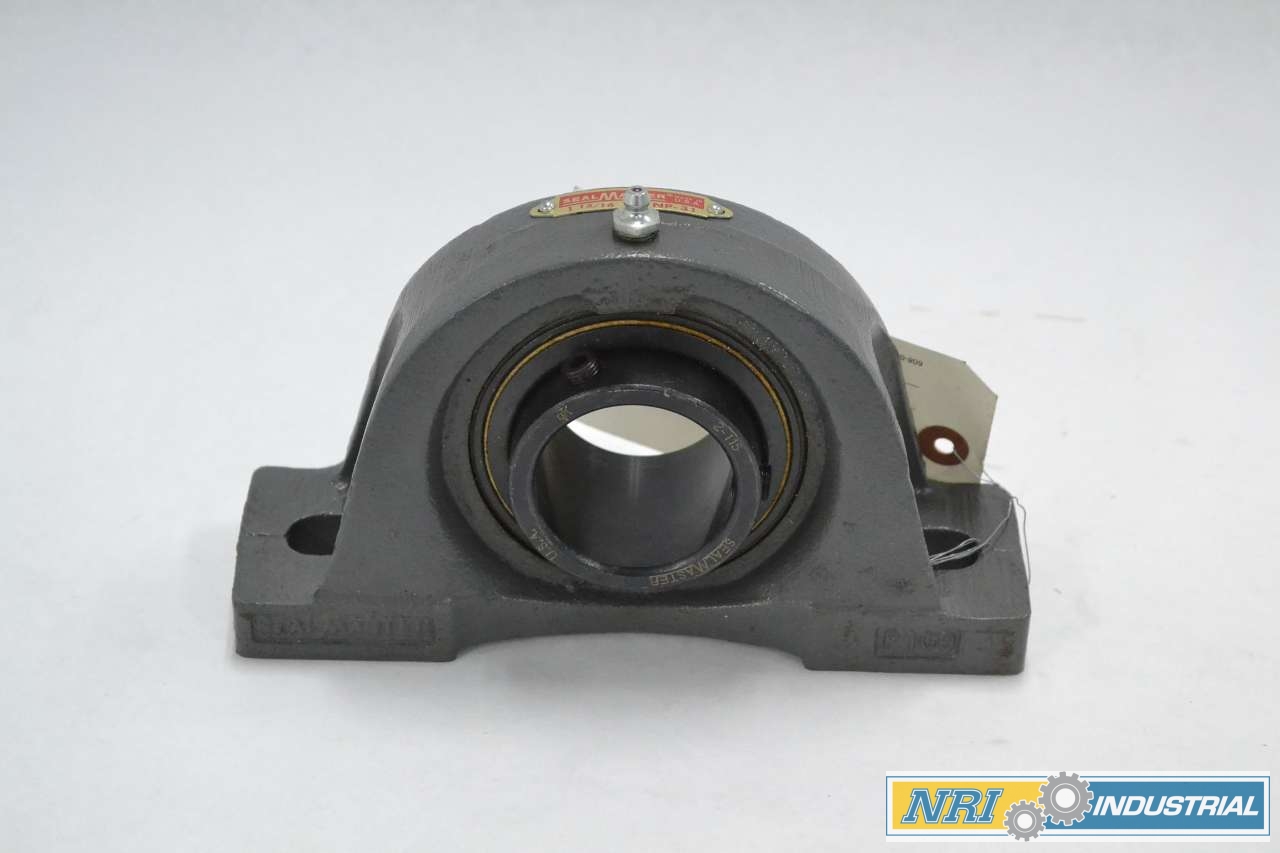

thumbzoomNRI IndustrialB362156156.751In StockSEALMASTER156.75 @ 1
thumbzoomRadwellNP-31167.516SEALMASTER8.02167.5 @ 1
AmazonTPB006MI8DGW171.531In Stock2Sealmaster171.53 @ 1
thumbzoomapexindustrialautomation.comNP-31191.571In StockSealmaster191.57 @ 1
thumbzoomGalcoNP-31-SMST191.571In StockSealmaster8.075191.57 @ 1
thumbzoommotorsandcontrol.comNP-31191.5714Sealmaster8.1191.57 @ 1
us.rs-online.com72115412205.6612Sealmaster205.66 @ 1
thumbzoomZoroG8527452228.99157Sealmaster8.3228.99 @ 1
thumbzoomPurvisNP-31235.961In StockSealmaster235.96 @ 1
thumbzoomsimsupply.comZO-G8527452271.09122Sealmaster271.09 @ 1
Grainger44A406290.251330SEALMASTER290.25 @ 1
motionindustries.com00557368297.91In StockSealmaster297.9 @ 1
