Sealmaster NP-39

B0761LRSRY

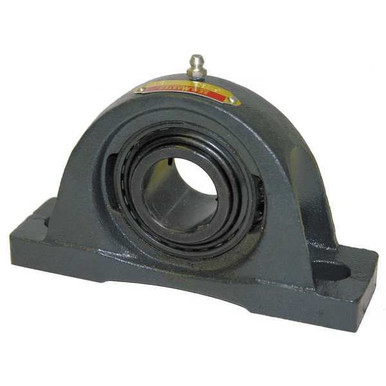

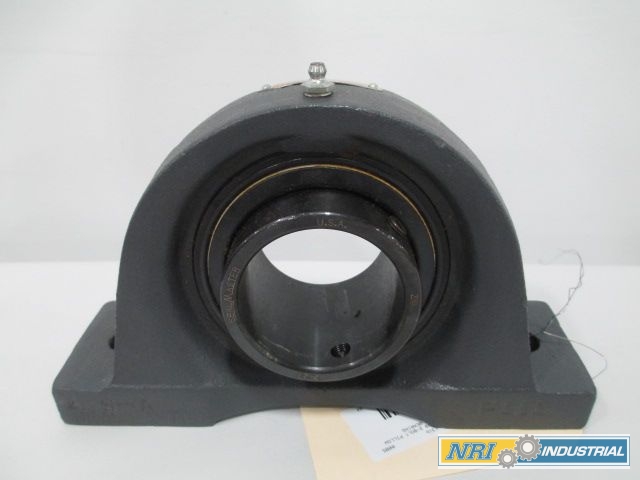

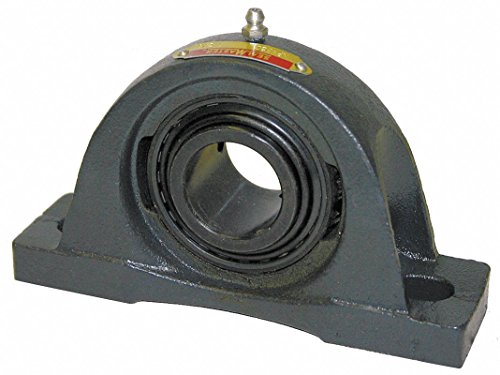

Pillow Block Bearing, Ball, 2-7/16" Bore

Pillow Block Bearing, Ball, 2-7/16" Borezoom

Attributes

Key Value
Actual Bolt Center to C.0 Inch | 0Millimeter
Base Height0.88 in
Base to Center Height2.75 Inch | 69.85 Milli.
Base Width2.75 in
Bearing Housing Materia.Cast Iron
Bearing Insert TypeBall
Bolt Size5/8 in
Bolt Spacing Maximum7.625 Inch | 193.675Mil.
Bolt Spacing Minimum6.875 Inch | 174.625Mil.
Bore Dia.2 7/16 in
Bore Diameter2 7/16 in
BrandSEALMASTER
CategoryPillow Block Bearings
Center Height2.75 in
Current Stock22
Dimension A2 3/4 in
Dimension B9 1/2 in
Dimension C6-7/8 in to 7-5/8 in
Dimension D2 3/4 in
Dimension E1 in
Dimension F11/16 in
Dimension G7/8 in
Dimension H5 9/16 in
Dimension J2 9/16 in
Dimension L2 63/64 in
Duty SeriesStandard
Estimated Weight13.45
Expansion / Non-expansi.Non-expansion
Global Part Number GPN6615
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
Housing Style2 Bolt Pillow Block
Inch - MetricInch
Insert Material52100 Steel/Black Oxide
Insert Part Number2-27
International ShippingNo
Lead TimeExpected to ship in 1-2.
Length Thru Bore2.563 Inch | 65.09 Mill.
Locking DeviceSetscrew
ManufacturerSEALMASTER
Manufacturer NameREGAL BELOIT
Mount Hole Center-to-Ce.7 5/8 in
Mounting Bolt Size5/8 in
Mounting Bolts5/8 Inch
Mounting MethodSet Screw
MpnNP-39
Nominal Bolt Center to .7.3 Inch | 184 Millimet.
Number of Mounting Holes2
Other FeaturesSingle Row | Standard D.
Overall Height5 9/16 in
Overall Length9 1/2 in
Overall Width2 3/4 in
Part NumberNP-39
price$ 240.90 / each
RelubricatableYes
Seal TypeStandard Felt Seal
SealsFelt Labyrinth
Shaft Diameter (in)2.4375
Shaft Locking TypeSet Screws
SKUZO-G8987937
SubCategoryPower Transmission
titleNP-39
TypeTwo Bolt Pillow Block
UNSPSC31171511
UPC Code662461001806
Weight / kgm6.22
Weight / LBS13.7

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD25582798.461In StockSEALMASTER98.46 @ 1
thumbzoomLily BearingNP-39204.771In StockSEALMASTER13.684204.77 @ 1
thumbzoommotorsandcontrol.comNP-39274.1911Sealmaster13.45274.19 @ 1
us.rs-online.com72115428294.341In StockSealmaster294.34 @ 1
thumbzoomZoroG8987937335.99157Sealmaster13.55335.99 @ 1
thumbzoomPurvisNP-39337.721In StockSealmaster337.72 @ 1
thumbzoomsimsupply.comZO-G8987937397.7122Sealmaster397.7 @ 1
motionindustries.com00557477441.351In StockSealmaster441.35 @ 1
